SeaStar Pro HK7500A3 Hydraulic Steering Kit | Without Hose | Up to 350 HP

SeaStar Pro HK7500A3 Complete Hydraulic Steering Kit — Without Hose

A complete hydraulic steering system built for high-performance outboard applications — bass boats, flats boats, and performance hulls capable of speeds exceeding 65 MPH. Everything needed to install a full SeaStar Pro hydraulic steering system is included, except the hose, which is selected separately based on your boat’s specific routing.

At the heart of the kit is the SeaStar Pro 2.0 cu.in. front mount helm (HH57703) — a low-friction, high-precision helm engineered to eliminate the chatter, feedback, and vagueness that cable steering and lower-grade hydraulic systems produce at high speed. Paired with the HC63453 front mount cylinder, this system delivers locked-in, responsive control even with high-performance propellers and jack plates in the mix.

Part Details

• Kit Part Number: HK7500A3
• Brand: SeaStar Solutions
• Official Product Type: Complete Hydraulic Steering Kit (Hose Not Included)
• System: Hydraulic Outboard Steering System
• Max Engine Rating: 350 HP
• Max Speed: 65+ MPH

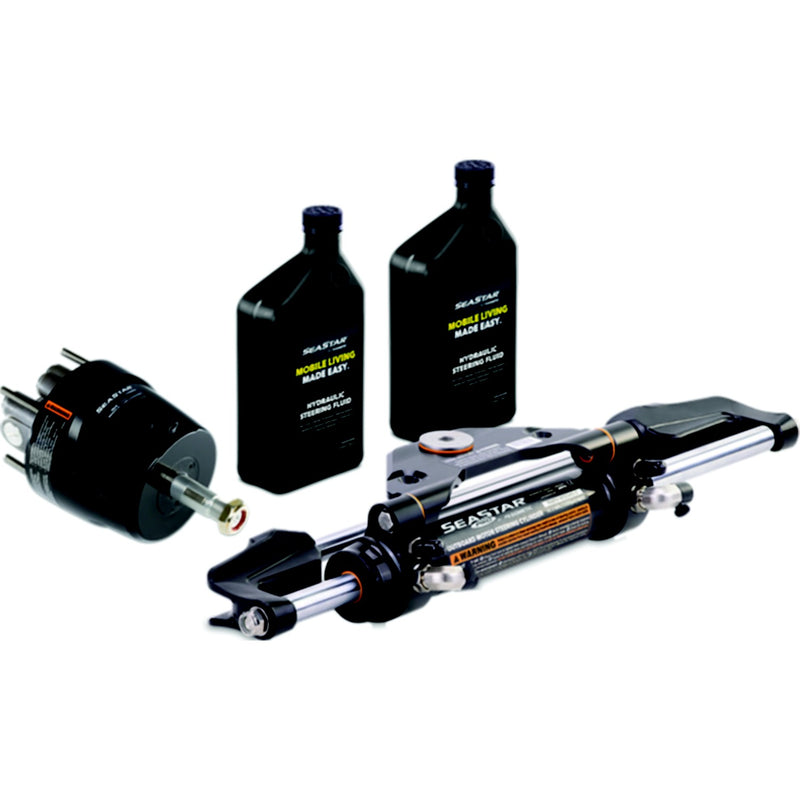

Kit Contents

• HH57703 — SeaStar Pro 2.0 cu.in. Front Mount Helm
• HC63453 — SeaStar Pro Front Pivot Mount Outboard Cylinder
• HA5430 — SeaStar Hydraulic Steering Oil, 2 × 1 Quart
• Installation instructions
• Hose not included — select separately based on helm-to-cylinder routing

Compatible Applications

• Single outboard engines rated up to 350 HP
• High-performance bass boats, flats boats, and performance hulls running 65+ MPH
• Setups with jack plates or high-performance propellers where steering loads exceed cable system capability
• Boats with a 3" dash hole (or larger, with adapter) for front mount helm installation
• Steering wheels with standard 3/4" tapered shaft bore — confirm hub adapter compatibility before ordering

Helm Specifications (HH57703)

• Displacement: 2.0 cu.in. per turn
• Turns Lock-to-Lock: 4.25
• Dash Hole Required: 3"
• Helm Footprint: 4-7/16"
• Shaft: Standard 3/4" tapered
• Port Type: ORB (O-Ring Boss)

Key Features

• Greatly reduced steering chatter from overrunning loads at high speed
• Improved check valve durability for longer service life
• Eliminated flow noise when coming off hard-over position
• Tighter regrip performance for precise corrections at speed
• Compact helm footprint — fits most performance boat dash panels without modification
• Compatible with high-performance propellers and jack plates

Related Products

• SeaStar Pro HH57704 High-Performance Hydraulic Helm — 2.0 cu.in., Long Stud, Front Mount
• SeaStar Pro HC63453 Front Pivot Mount Outboard Cylinder — 8" Stroke
• SeaStar HP6032 Helm Seal Kit — SeaStar, SeaStar Pro, BayStar & BayStar Plus
• SeaStar BayStar HH43144 Hydraulic Helm — 1.4 cu.in. (Up to 150 HP)

Service Interval

Inspect hydraulic steering fluid level and condition annually. Replace fluid if it appears discoloured, milky, or contaminated. Inspect hose connections and cylinder for leaks at each seasonal commissioning. Rebuild or replace helm seals if steering feels spongy, loses pressure, or shows fluid weeping at the helm body — see the SeaStar HP6032 Helm Seal Kit for seal service.

Technical FAQ

Q: What hose do I need to complete this kit?
A: Hose is not included and must be selected based on your boat’s helm-to-cylinder routing. Measure the run from the helm to the cylinder and add 20–30% for routing curves. SeaStar hose kits are available separately — contact us if you need help selecting the correct length and fitting type.

Q: Will this kit work with my existing steering wheel?
A: The helm uses a standard 3/4" tapered shaft. Most marine steering wheels are compatible, but confirm your wheel’s hub adapter fits a 3/4" tapered shaft before ordering.

Q: Can this system handle twin outboards?
A: The HK7500A3 is designed for single outboard applications. Twin-engine hydraulic steering requires a different cylinder and helm configuration — contact us for twin-engine steering recommendations.

Q: Is this compatible with a jack plate?
A: Yes — this is one of the primary use cases for the SeaStar Pro system. The higher-displacement helm and front mount cylinder are specifically suited to the increased steering loads that jack plates and high-performance props create.

Parts Desk Insights

Best use case: The HK7500A3 is the right choice for customers building a complete hydraulic steering system on a high-performance bass boat, flats boat, or any outboard-powered performance hull running over 65 MPH — especially with a jack plate or aggressive propeller in the mix. Buying the kit rather than individual components ensures all parts are matched and compatible out of the box, and simplifies the ordering process.

Common issues we see: The most frequent oversight is forgetting to order hose — this kit does not include it. Customers also occasionally order without confirming their steering wheel hub adapter fits the 3/4" tapered shaft. Before completing the sale, confirm the customer has hose selected and the correct hub adapter for their wheel.
