T-H Marine BSR1KDP Bulkhead Strain Relief Hose Kit – .250–.485 OD, 1-1/4" Hole, Watertight
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
T-H Marine BSR1KDP Bulkhead Strain Relief Hose Kit – .250–.485 OD, 1-1/4" Hole, Watertight

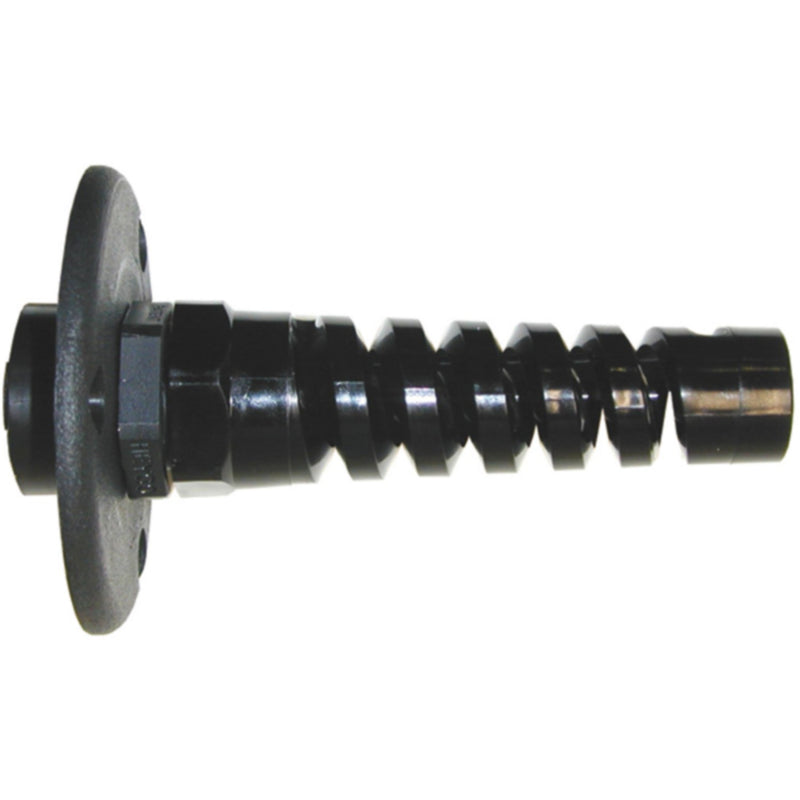

The T-H Marine BSR1KDP is a bulkhead strain relief fitting kit for routing hose through a bulkhead or panel on a boat. The strain relief distributes the stress from hose bends at the bulkhead penetration point, preventing the hose from kinking, cracking, or pulling loose at the entry point over time. The watertight gripper fitting seals around the hose to prevent water intrusion through the bulkhead opening.
Fits hose with an outside diameter of .250" to .485" and requires a 1-1/4" installation hole in the bulkhead or panel. For bulk hose only — pre-made hoses with end fittings already installed cannot pass through the fitting.
Specifications
- Hose OD Range: .250" to .485" outside diameter
- Installation Hole Required: 1-1/4"
- Fitting Type: Watertight gripper — seals around hose to prevent water intrusion
- Hose Type: Bulk hose only — pre-made hoses with end fittings cannot pass through
- Part Number: BSR1KDP | SKU: 232-BSR1KDP
Compatible Applications
- Routing bulk hose through bulkheads, panels, or transom walls on boats
- Any hose with an outside diameter between .250" and .485"
- Applications requiring a watertight seal at the bulkhead penetration point
- Suitable for hydraulic hose, fuel line, wiring loom, and other flexible hose or tubing within the OD range
- Not suitable for pre-made hoses with end fittings already installed — the fitting cannot accommodate the end fitting diameter
- Verify your hose OD is within the .250–.485" range and that a 1-1/4" hole can be drilled in your bulkhead before ordering
Parts Desk Insights
Best Use Case: The BSR1KDP is the right fitting when you’re routing bulk hose through a bulkhead or panel and need both a watertight seal and strain relief at the penetration point. Without a strain relief, hose that passes through a bulkhead is subject to chafing against the hole edge and stress from bends immediately after the penetration — both of which can cause premature hose failure. The watertight gripper design seals around the hose to prevent water from passing through the bulkhead opening, which is important for any penetration below or near the waterline or in areas exposed to spray. The 1-1/4" hole requirement is the key installation constraint — confirm you can drill or that a 1-1/4" hole already exists in your bulkhead before ordering. Remember this fitting is for bulk hose only: if your hose already has end fittings installed, the fitting cannot be threaded onto the hose.
