T-H Marine RF2DP Rigging Flange – 2" ID Hose, Internally Threaded, Invertible Mount

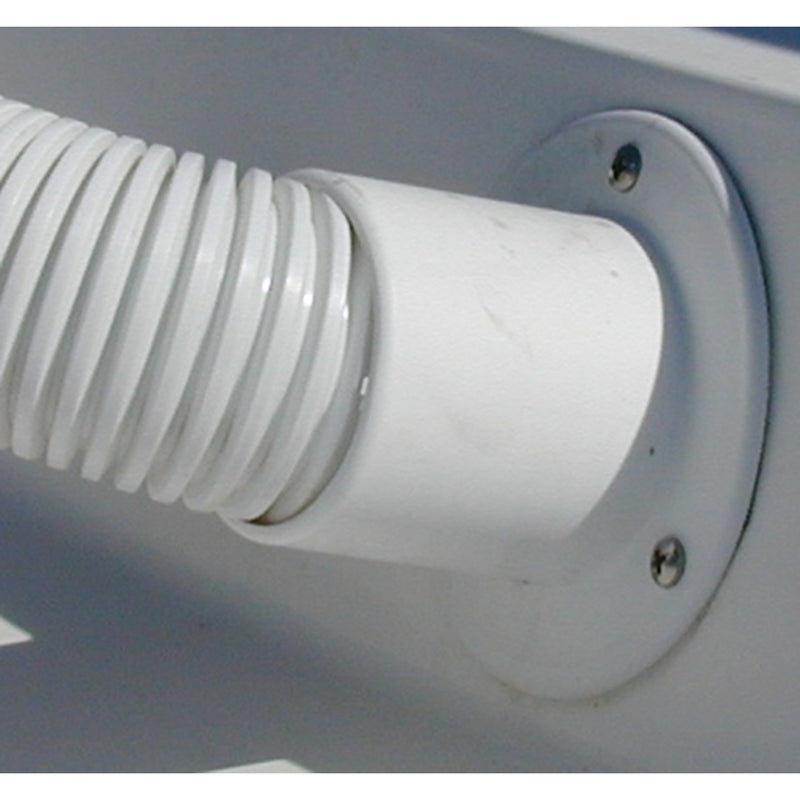

The T-H Marine RF2DP is a rigging flange designed to connect 2" ID rigging hose from the engine to the boat, providing a clean, secure termination point for the rigging hose at the transom or hull. The flange is internally threaded to retain the rigging hose and allow adjustment of the hose position without tools. The textured back side allows the flange to be mounted in either standard or inverted orientation, providing flexibility in installation.
Rigging flanges are used with rigging hose systems to protect cables, wiring, and hoses from dirt, abrasion, UV exposure, and water as they pass from the engine through the transom or hull into the boat. For the RF1DP version of this flange, see the T-H Marine RF1DP Rigging Flange.
Key Features
- 2" ID Hose Compatibility — Designed for use with 2" inside diameter rigging hose
- Internally Threaded — Retains the rigging hose and allows hose position adjustment
- Invertible Mount — Textured back side allows standard or inverted mounting orientation
- Protects Cables and Wiring — Used with rigging hose to protect cables, wiring, and hoses from dirt, abrasion, UV, and water
- Part Number: RF2DP | SKU: 232-RF2DP
Compatible Applications
- Transom or hull rigging hose termination on outboard-powered boats
- 2" ID rigging hose systems for routing cables, wiring, and hoses from engine to boat interior
- Standard or inverted mounting configurations
- Verify the rigging hose ID is 2" before ordering — the RF2DP is sized for 2" ID hose only
- For the RF1DP version of this flange, see the T-H Marine RF1DP Rigging Flange
Parts Desk Insights
Best Use Case: The RF2DP rigging flange is the correct fitting when you’re installing or replacing the transom termination point for a 2" rigging hose system. The flange mounts to the transom or hull and provides the connection point where the rigging hose attaches as it passes from the engine into the boat. Without a flange, the rigging hose end is unsupported at the transom penetration, which can allow the hose to shift, chafe, or pull loose over time. The internally threaded design allows the hose to be adjusted in or out for the correct fit without cutting or re-routing, and the invertible mount accommodates non-standard transom geometry. Confirm your rigging hose is 2" ID before ordering. If you’re unsure whether you need the RF1DP or RF2DP, compare both listings or contact us to confirm the correct part for your application — see the T-H Marine RF1DP Rigging Flange for comparison.
