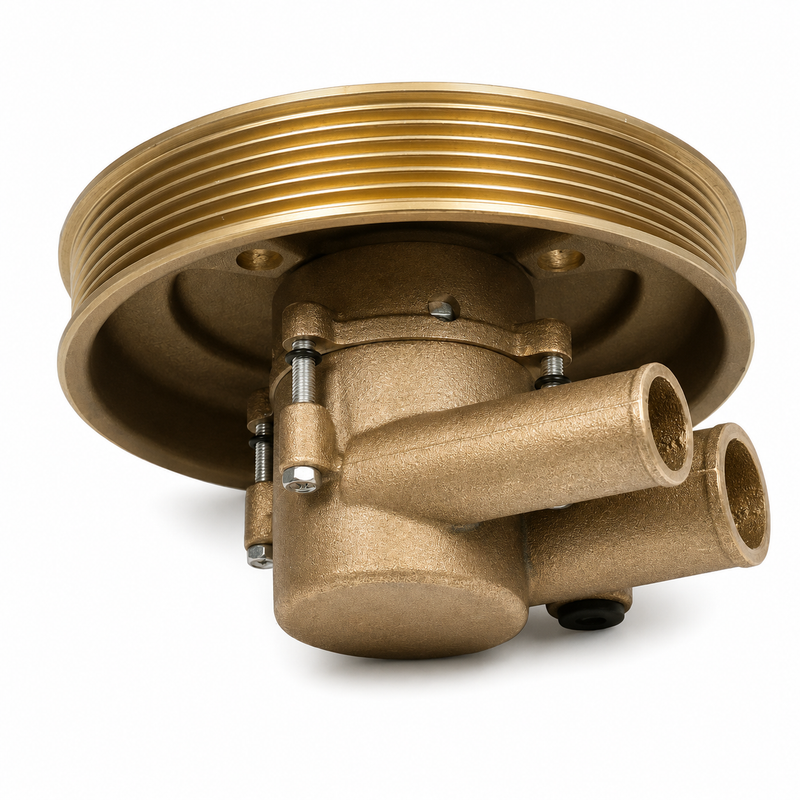

Volvo Penta Seawater Pump 24346053 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Seawater Pump 24346053 is a heavy-duty raw-water cooling pump used in Volvo Penta D13 marine diesel cooling systems. It circulates seawater through the heat-exchanger side of the cooling system to help control engine temperature under load. Replacement-chain references show earlier seawater pump 23271278 replaced by 24346053, and parts-diagram data for 23271278 identifies it as the seawater pump / wear part set at diagram position 1 in the heat-exchanger seawater pump assembly.
Key Features
- Volvo Penta seawater / raw-water pump
- Part number: 24346053
- Earlier related pump reference: 23271278
- Earlier related pump reference: 21495030
- Diagram position for the related pump assembly: 1
- Used in the raw-water cooling side of the engine heat-exchanger system
- Listed weight varies by catalog source, with references around 14.3–15.1 kg.
- Related internal pump components shown for the earlier assembly include housing 21236634, bearing housing 21165569, gear 8131848, shaft 21165584, cam 21165572, impeller kit 3830459, impeller 3830663, end cover 21541791, sealing ring 3829315, and related bearings, lock rings, O-rings, washers, screws, and plug.
Engine Compatibility
Confirmed application references tied to the earlier 23271278 seawater pump include:
- D13B-E MH
- D13B-E MH (FE)
- D13B-N MH
- D13B-N MH (FE)
- D13C1-A MH
Use 24346053 where the Volvo Penta parts system confirms it as the current replacement for 23271278 on the customer's exact D13 engine configuration.
Serial Number Fitment Notice
Confirm fitment by engine serial number, existing pump number, and the Volvo Penta cooling-system diagram before ordering. Replacement-chain data should be checked carefully because some catalog references show 23271278 → 24346053, while another current catalog route shows 23271278 → 24883556. The safest match is the active Volvo Penta serial-number lookup for the exact engine.
When This Part Needs Replacement
Replace the seawater pump if the engine is overheating, raw-water flow is weak, the pump leaks, the shaft or bearings are worn, the pump body or cam area is damaged, or repeated impeller failures point to internal pump wear. Saltwater leakage around the pump should be corrected quickly to prevent damage to belts, brackets, fittings, and surrounding engine components.
Installation Notes
Inspect the full pump assembly before replacing the pump alone. Check the pump gear, shaft, bearing housing, O-rings, sealing rings, cam, impeller kit, end cover, fasteners, and heat-exchanger seawater hoses. Diagram references show many pump components sold separately, so confirm whether the repair requires the complete pump, a wear part set, or individual service parts.
Alternate/Superseded Part Numbers
- Volvo Penta 24346053 — seawater pump reference
- Volvo Penta 23271278 — earlier seawater pump reference shown replaced by 24346053
- Volvo Penta 21495030 — earlier related seawater pump reference
- Volvo Penta 24883556 — later/current replacement reference shown in some catalog data for 23271278; verify by serial number before interchange.
Parts Desk Insight
The key detail on this pump is the replacement chain. 24346053 is tied to earlier D13 seawater pump 23271278, but replacement references can vary by engine build. Matching the engine serial number and existing pump number helps ensure the correct D13 raw-water pump is ordered the first time.
Special Order — this product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
