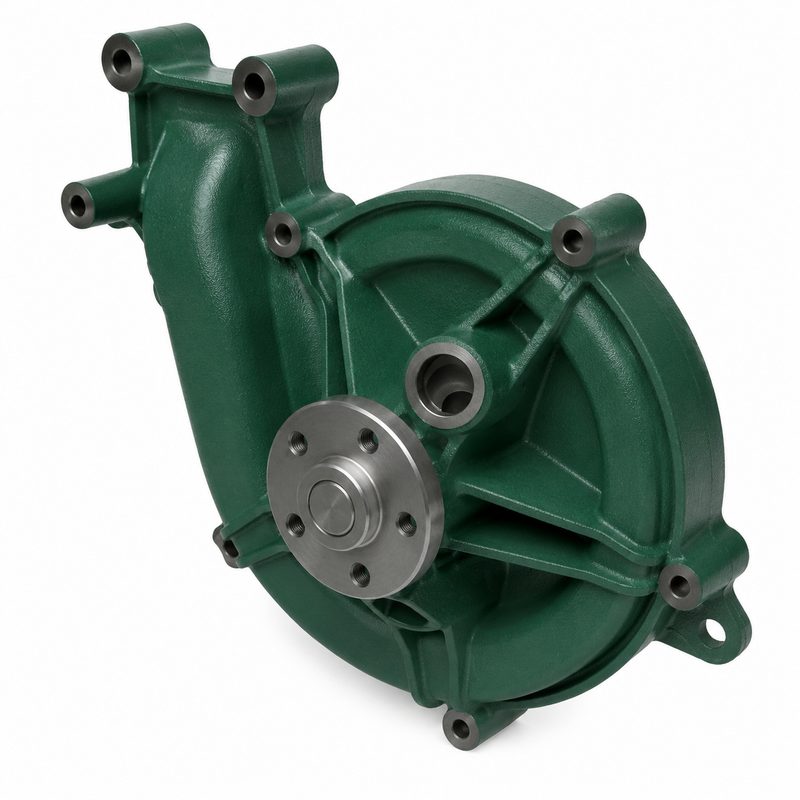

Volvo Penta Coolant Pump 3801418 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Coolant Pump 3801418 is an engine coolant circulation pump used in Volvo Penta cooling-system assemblies for select heavy-duty TAD / TWD diesel applications. It appears in Volvo Penta Water Pump, Thermostat Housing and Water Filter, Radiator Cooling diagrams as a coolant pump at diagram position 1, with the supersession chain showing earlier pump 3801102 replaced by 3801418, then 3801418 replaced by 22195450, and later 22195450 replaced by 22902431.
Key Features
- Volvo Penta coolant circulation pump
- Part number: 3801418
- Diagram position: 1 in cooling-system pump diagrams
- Earlier reference 3801102 is shown replaced by 3801418
- Later replacement path: 3801418 → 22195450 → 22902431
- Related reman / exchange pump reference: 3801741
- Related core item reference for the reman pump: 3804741
- Common related cooling-system parts include plastic plug 20464402, flange screw 984740, rear pump cover 20566236 / 22195462, O-ring 968725, spindle 3979940, spring pin 951968, and nipple 22179185.
Engine Compatibility
Confirmed Volvo Penta catalog applications include select TAD13 and D16 industrial engine cooling-system diagrams, including:
- TAD1343GE
- TAD1344GE
- TAD1344VE
- TAD1352GE
- TAD1670-72VE
- TWD1643GE
These diagrams show 3801418 as a coolant pump in the water pump / thermostat housing cooling system group, with later replacement references shown alongside it.
Serial Number Fitment Notice
Confirm fitment by engine model, serial number, and the Volvo Penta cooling-system diagram before ordering. For TAD1140-42VE style diagram references, 3801418 is shown for serial range SN-7011077856, then replaced by 22195450 from SN7011077857-, and later by 22902431. D16 references also show serial handling where 22195450 applies up to SN-2016101135 and 22902431 applies from SN2016101136-.
When This Part Needs Replacement
Replace the coolant pump if the engine is overheating, coolant circulation is weak, the pump leaks, the bearing is noisy, the shaft has play, the pulley area is damaged, or coolant loss is traced to the pump body or seal area. A worn coolant pump can cause rising engine temperature even when the coolant level, thermostat, radiator, heat exchanger, or seawater side appears serviceable.
Installation Notes
Inspect the full cooling-pump assembly before replacing the pump alone. Check the rear pump cover, O-rings, plastic plug, flange screws, coolant filter, pipe connections, pulley, hose connections, and surrounding sealing surfaces. Refill with the correct coolant and bleed the cooling system fully after installation. Some diagram references note that coolant filter 21192875 should not be used together with Volvo Penta VCS yellow coolant, so coolant type should be verified during service.
Alternate/Superseded Part Numbers
- Volvo Penta 3801418 — coolant pump reference
- Volvo Penta 3801102 — earlier coolant pump reference, replaced by 3801418
- Volvo Penta 22195450 — later pump unit reference, replaces 3801418
- Volvo Penta 22902431 — later coolant pump reference, replaces 22195450
- Volvo Penta 3801741 — related reman / exchange coolant pump reference
- Volvo Penta 3804741 — related core item reference for the exchange pump
Parts Desk Insight
The key detail on this pump is the supersession and serial break. 3801418 may be the number on the old pump or diagram, but many current references route the order to 22195450 or 22902431 depending on engine serial. Always match the serial number before selling the pump.
Special Order — this product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
