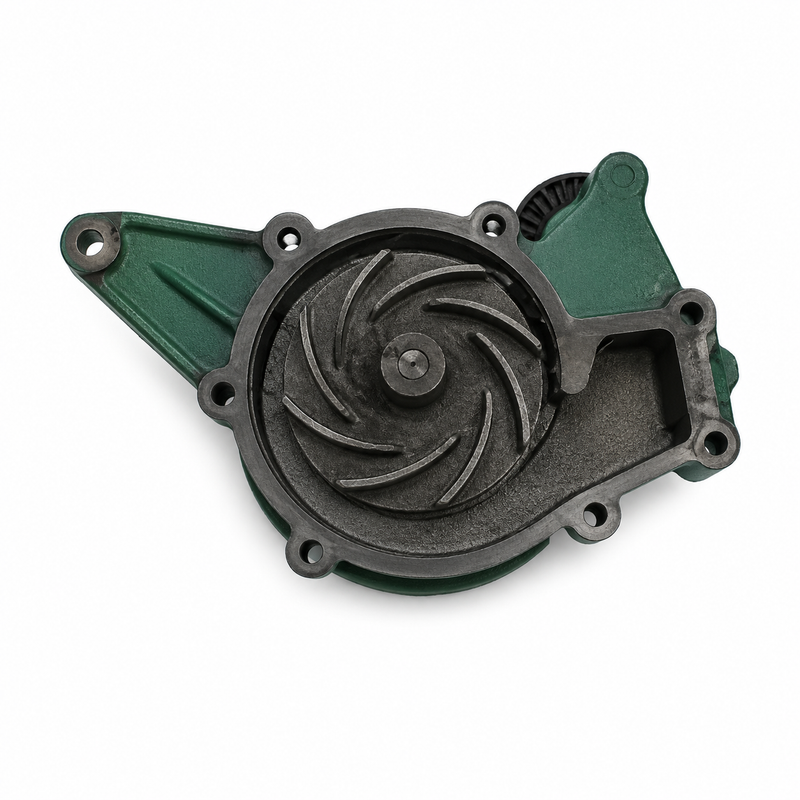

Volvo Penta Coolant Pump Reman 3801650 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Coolant Pump Reman 3801650 is a genuine Volvo Penta reman / exchange coolant circulation pump used on select D4 and D6 diesel engine cooling systems. It circulates engine coolant through the closed-cooling side of the engine to help maintain proper operating temperature under load. Volvo Penta diagram references show 3801650 as the reman / exchange coolant pump at diagram position 1, with a core item reference 3804650 tied to the exchange program.
Key Features
- Genuine Volvo Penta coolant pump reman / exchange part
- Part number: 3801650
- Diagram position: 1
- Used in D4 / D6 closed-coolant circulation systems
- Core item reference: 3804650
- Related pump references include 3803854, 3801313, and new pump reference 22577750 in the same coolant pump diagram group.
- Related service components shown in the same diagram include coolant pump housing 40005649, impeller 3582269, sealing ring 3582673, hub 3582754, shaft 3582671, gasket 3818912, and pulley 3582674.
Engine Compatibility
Confirmed Volvo Penta application references include select D4 and D6 diesel engines, including:
- D4-180i-B / D4-180i-C
- D4-210A-A / D4-210A-B
- D4-225A-B / D4-225A-C / D4-225i-B / D4-225i-C
- D4-260A / D4-260A-A / D4-260A-B / D4-260A-C / D4-260A-D
- D4-260D-B / D4-260D-C / D4-260D-D
- D4-260i-A / D4-260i-B / D4-260i-C / D4-260i-D
- D4-300A-A / D4-300A-C / D4-300A-D
- D4-300D-A / D4-300D-C / D4-300D-D
- D4-300i-A / D4-300i-C / D4-300i-D
- D6-280A-A / D6-280A-B / D6-280A-C / D6-280A-D
- D6-280i-A / D6-280i-B / D6-280i-C / D6-280i-D
- D6-310A-A / D6-310A-B / D6-310A-C
- D6-310D / D6-310D-B / D6-310D-C / D6-310D-D
- D6-310i-A / D6-310i-B / D6-310i-C / D6-310i-D
Serial Number Fitment Notice
Confirm fitment using the engine serial number and Volvo Penta cooling-system diagram before ordering. Diagram data for D6-310D-C shows serial-range handling for earlier pump references, including 3803854 up to serial 2006032252 and 3801313 from serial 2006032253, with 3801313 replaced by 3801650.
When This Part Needs Replacement
Replace the coolant pump if the engine is overheating, coolant circulation is weak, the pump is leaking, the bearing is noisy, the shaft has play, the pulley area is damaged, or coolant loss is traced to the pump body or seal area. A failing circulation pump can cause temperature rise even when the thermostat, coolant level, heat exchanger, and seawater side are otherwise serviceable.
Installation Notes
Inspect the gasket surface, coolant pump housing, impeller area, pulley, shaft, sealing ring, belt drive, hoses, thermostat circuit, and coolant condition during replacement. Use the correct Volvo Penta gasket and sealing parts, refill with the correct coolant mixture, and bleed the closed-cooling system fully after installation. The pump is part of a diagram group with individually sold components, so related hardware and gaskets should be checked before ordering the pump alone.
Alternate/Superseded Part Numbers
- Volvo Penta 3801650 — coolant pump reman / exchange
- Volvo Penta 3804650 — core item reference
- Volvo Penta 3801313 — earlier exchange coolant pump reference, shown replaced by 3801650
- Volvo Penta 3803854 — earlier reman coolant pump reference, shown replaced by 3801650
- Volvo Penta 3588253 — earlier reference shown replaced by 3801650
- Volvo Penta 22577750 — related new coolant pump reference in the same pump diagram group
Parts Desk Insight
The important detail is the D4/D6 serial range and exchange status. This pump often appears in diagrams beside earlier numbers, new-pump numbers, and core references, so match the engine serial and current pump number before ordering—especially when replacing an older 3801313, 3803854, or 3588253 reference.
Special Order — this product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
