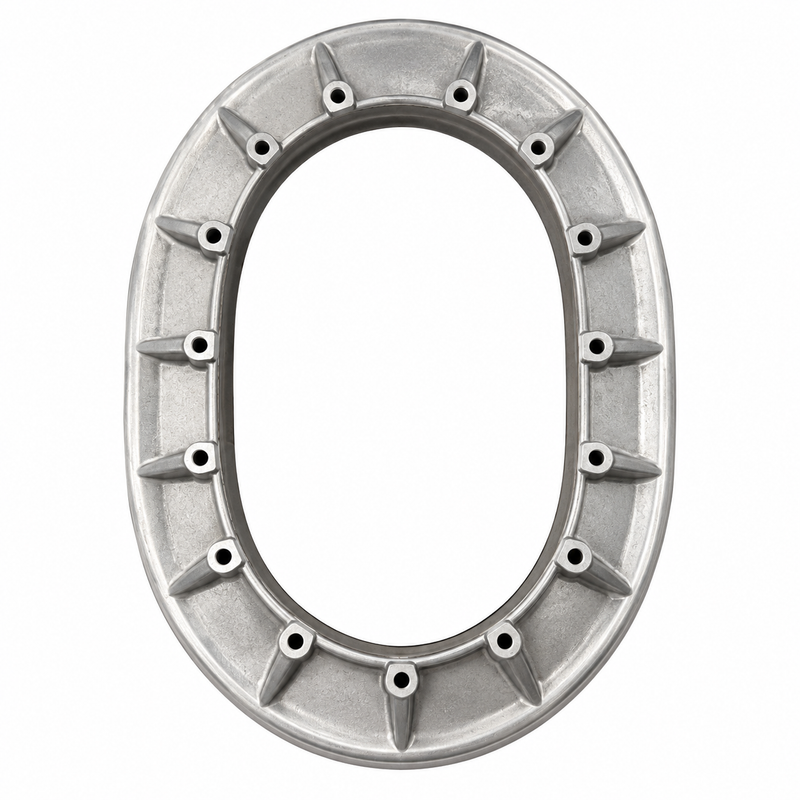

Volvo Penta IPS Clamping Ring — OEM Part 22490672
The Volvo Penta IPS Clamping Ring 22490672 is a genuine OEM component used in the drive-to-hull mounting system for selected Volvo Penta IPS marine propulsion installations. The clamping ring works with the mounting kit, rubber sealing rings, flange screws, corrosion protection components, and grounding hardware to secure the IPS drive to the hull. On IPS10-A parts diagrams, 22490672 is identified directly adjacent to mounting kit 22490670.
Supersession Notice: Part number 22490672 has been superseded by 23804176. Confirm the current applicable part number against your drive model and serial number before ordering.
Part Details
- Part Number: 22490672
- Brand: Volvo Penta
- Official Product Type: IPS Drive Mounting Clamping Ring
- Superseded By: 23804176
- System: IPS Drive Mounting — Hull Interface Assembly
- Diagram Position: Adjacent to mounting kit 22490670 in IPS10-A mounting assembly
- Approximate Weight: 12 kg
Compatible Applications
Documented fitment includes selected Volvo Penta IPS propulsion installations. Always confirm by complete drive model, engine package, and serial number before ordering:
- Volvo Penta IPS10-A
- IPS installations associated with D6-310D-C engine packages
- Other IPS drive configurations where 22490672 or 23804176 is specified in the mounting assembly diagram
Fitment Notice: Volvo Penta uses different mounting and sealing arrangements across the IPS range. Match the clamping ring to the applicable drive installation diagram — do not select by appearance alone.
When This Part Needs Replacement
Replace the clamping ring if inspection reveals any of the following:
- Severe corrosion on the ring body or mounting surfaces
- Cracking or structural damage
- Distortion that prevents proper seating
- Damaged mounting surfaces
- Damage discovered during IPS drive removal or installation
- Inability to maintain proper drive mounting and sealing
Installation Notes
Inspect the complete IPS mounting and sealing system whenever the clamping ring is removed. Related components in the IPS10-A mounting assembly include:
- Mounting kit 22490670
- Flange screw 983943
- Rubber ring 22256171 (IPS10-A applications)
- Ground terminal 23559901
- Anti-rust agent 85148526
- Lubricant 22618333
Follow Volvo Penta service procedures and torque specifications for IPS drive mounting. Inspect all sealing surfaces, fasteners, and corrosion protection components before reassembly.
Superseded Part Numbers
- 22490672 — Previous Volvo Penta IPS clamping ring (this part)
- 23804176 — Current Volvo Penta replacement for 22490672
Parts Desk Insights
The 22490672 is an IPS drive mounting clamping ring — not a conventional sterndrive transom ring. Its documented use with mounting kit 22490670 and the associated IPS sealing hardware makes the IPS mounting assembly diagram the essential reference for confirming the correct part. Because this number has been superseded by 23804176, customers should verify which number is current for their specific drive serial number before ordering — the superseding part may have dimensional or material differences. If you’re unsure which number applies to your installation, contact us with your drive model and serial number before placing your order.
