Volvo Penta Hydraulic Pump 3036293 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Hydraulic Pump 3036293 is a hydraulic pump used in the DH10A / THD102 cooling and fan-drive hydraulic system. Volvo Penta diagram references show 3036293 in both the Hydraulic Pump diagram and the Fan Drive System diagram, where it supplies hydraulic flow for the engine fan-drive arrangement. It is shown with the hydraulic fluid tank, hoses, fittings, flange hardware, pulley, anchorage, tensioning screw, collet, and related mounting components sold separately.
Key Features
- Genuine Volvo Penta hydraulic pump reference
- Part number: 3036293
- Diagram group: Hydraulic Pump
- Related diagram group: Fan Drive System
- Diagram position: 6 in the hydraulic pump diagram
- Diagram position: 1 in the fan drive system connecting-parts diagram
- Confirmed Volvo Penta industrial engine applications include DH10A, THD102K-KB, THD102KB, and THD102KD
- Listed weight: approximately 20.413 kg
Application Compatibility
Confirmed Volvo Penta catalog applications include:
- DH10A — Hydraulic Pump / Fan Drive System
- THD102K-KB — Hydraulic Pump / Fan Drive System
- THD102KB — Hydraulic Pump / Fan Drive System
- THD102KD — Hydraulic Pump / Fan Drive System
Use this pump where the Volvo Penta cooling-system or fan-drive hydraulic diagram calls for 3036293. It should not be confused with a marine power-steering pump, trim pump, or general hydraulic pump.
Fitment Notice
Confirm fitment by engine model, serial number, existing pump number, and the Volvo Penta fan-drive / hydraulic-pump diagram. This pump is tied to a specific hydraulic cooling/fan-drive layout, and the surrounding tank, hoses, nipples, pulley, tensioning hardware, and brackets can vary by engine installation.
When This Part Needs Replacement
Replace the hydraulic pump if the fan-drive hydraulic system has confirmed pump failure, poor hydraulic flow, pressure loss, leakage at the pump body or fittings, bearing noise, shaft play, damaged pulley drive components, or overheating caused by inadequate fan-drive operation. Before replacing the pump, inspect the hydraulic fluid level, tank, hoses, filter, return filter, fittings, pulley, belt tension, and fan-drive hardware.
Installation Notes
Inspect the full hydraulic pump system before replacing the pump alone. Related diagram components include hydraulic fluid tank 3036180, hydraulic hoses 3037336 / 3037333, O-rings 949239 / 964115, flange halves 926885, flange screws, nipples, gaskets, hydraulic fluid filter 4823936, return filter 6211489, pulley 3036792, tensioning screw 3036795, collet 3036797, tension block 3036796, and sealing / bearing kits listed for pump 3036293.
Alternate/Superseded Part Numbers
- Volvo Penta 3036293 — hydraulic pump reference
- VOLVO~3036293 — supplier SKU format
- Bearing Kit 3097161 — related service kit for 3036293
- Bearing Kit 3097162 — related service kit for 3036293
- Sealing Kit 6211660 — related service kit for 3036293
Parts Desk Insight
The key detail is that 3036293 is a fan-drive hydraulic pump, not a steering or trim pump. Match it through the DH10A / THD102 hydraulic pump diagram and check the surrounding hoses, pulley, filters, and fittings before selling the pump by itself.
Special Order — this product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.

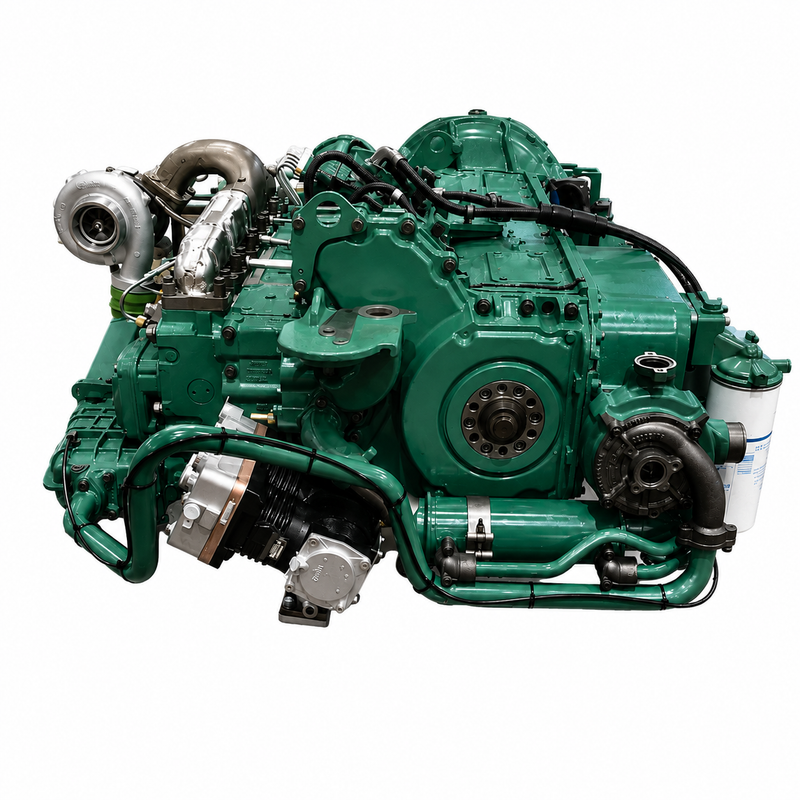

*DH10A engine shown
