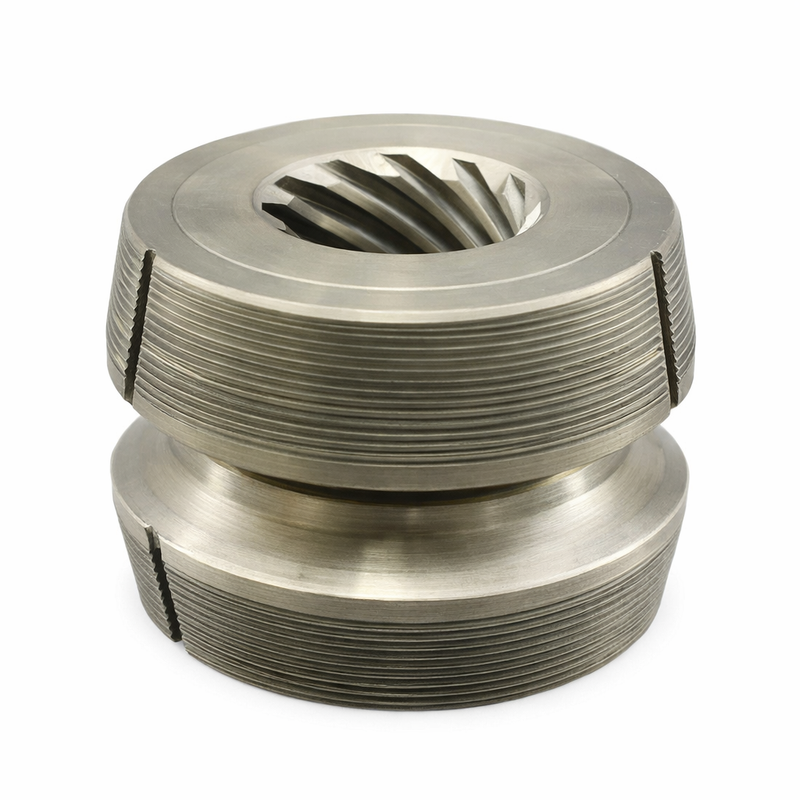

Volvo Penta Sliding Sleeve 3807613
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Volvo Penta 3807613 is a genuine OEM sliding sleeve used in Volvo Penta sterndrive cone-clutch service. The strongest current public parts-diagram trail places this part in the DP-SMTD1 / Marine Propulsion assembly as schematic object key 8, where it sits in the upper gear / clutch component group with the gear set, spring, spacer, shaft, and locking hardware. Current parts references also show 3855783 and the older number 814601 as earlier replacement-related numbers connected to this sliding sleeve.
Key Features
- Genuine Volvo Penta OEM sliding sleeve, part number 3807613.
- Strongest current public diagram support places it in DP-SMTD1 / Marine Propulsion as object key 8.
- Used in the same clutch/gear assembly group as gear 3851203, spring 3852296, spacer 3852298, and shaft 3852292.
- Current Volvo-focused parts sources identify it as a cone clutch sliding sleeve.
- Current parts references show replacement linkage to 3855783 and 814601.
- One current distributor listing shows approximate weight around 1.68 to 1.80 lb (0.790 kg).
Engine Compatibility
The strongest supportable fitment trail for Volvo Penta 3807613 is by drive family and clutch assembly position rather than by a narrow single-engine model list. Current public references place it in DP-SMTD1 / Marine Propulsion, while stronger cross-reference coverage associates this sleeve with Volvo Penta cone-clutch sterndrives including SP-A, SP-A1, SP-A2, SP-C, SP-C1, SP-E, DP-A, DP-A1, DP-A2, DP-B, DP-B1, DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-G, DPX, AQ250, AQ270, AQ275, AQ280, AQ285A, and AQ290. Because that broader list comes from cross-reference and aftermarket fitment sources, the safest fitment standard is the exact Volvo Penta drive parts diagram for the unit being serviced.
Serial Number Fitment Notice
Fitment can vary by drive family, clutch version, and serial-number range. Confirm Volvo Penta part number 3807613 against the exact drive serial number and the correct upper gear / cone-clutch breakdown before ordering, especially on older SP, DP, and AQ applications that may have had previous clutch or upper-unit service.
When This Part Needs Replacement
Replace this sliding sleeve when the clutch system shows poor engagement, difficult shifting, sleeve wear, rounding, scoring, or damage during teardown. It is also a smart replacement during cone-clutch service when the sleeve shows visible wear at the contact surfaces or when the driveline is already open for upper gear repair.
Installation Notes
Match this sleeve to the exact Volvo Penta application before installation. The strongest public reference places it in the cone-clutch gear assembly, and current parts notes state that when replacing original sleeve 814601, the newer shift shoe 3856502 must also be used. Confirming both the exact drive breakdown and any related clutch updates before reassembly is the safest cross-check.
Alternate/Superseded Part Numbers
Current public reference trails associate Volvo Penta 3807613 with 3855783 and the older number 814601 in the same cone-clutch sliding sleeve family. Use 3807613 as the primary Volvo Penta ordering number for this listing unless your serial-number-based lookup specifically points to a different updated clutch-group configuration.
Parts Desk Insight
Cone-clutch parts are easy to mis-order because several nearby driveline parts can look similar once the unit is apart. Matching the exact Volvo Penta drive diagram first is usually much safer than trying to compare the old sleeve by shape alone.
