Volvo Penta Oil Pump Kit 276158 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

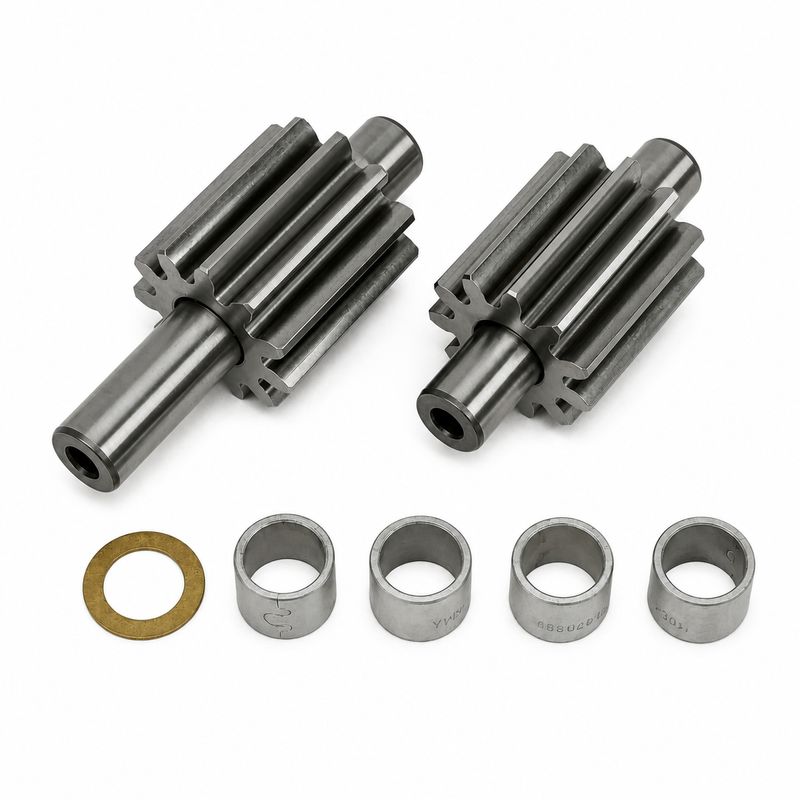

The Volvo Penta Oil Pump Kit 276158 is an oil pump overhaul / repair kit used in Volvo Penta engine lubricating-system service. Volvo Penta parts references list 276158 as an Oil Pump Kit / Overhaul Kit, shown at schematic position 29 in the DH10A 285 Lubricating and Oil System group. This is a service kit for the engine oil pump assembly, not a complete oil pump.
Key Features
- Genuine Volvo Penta oil pump kit / overhaul kit
- Part number: 276158
- Diagram group: Lubricating and Oil System
- Schematic position: 29
- Used for servicing the engine lubricating oil pump assembly
- Associated oil pump reference in the DH10A 285 diagram: 425169
- Related oil pump components shown in the same diagram include bracket 424662, shaft/gear 424659, idler gear 425075, bearing sleeve 422313, thrust washer 470357, oil pump housings 424654 / 424656 / 469728, gear 424917, washer 11978, and hexagon screw 944929.
- Listed supplier weight is approximately 1.94–2.0 kg depending on catalog source.
Engine Compatibility
Confirmed Volvo Penta / Volvo application references include:
- DH10A 285 — Lubricating and Oil System / Oil Pump diagram
- THD102 / THD102 KD — oil pump kit reference in aftermarket cross-reference data
Aftermarket catalog data also shows 276158 as a repair kit for oil pump references 424664 and 425169, with 425169 shown as replacing earlier oil pump number 424664.
Serial Number Fitment Notice
Confirm fitment by engine model, serial number, existing oil pump number, and Volvo Penta lubricating-system diagram before ordering. This kit should be matched to the correct oil pump assembly, especially where older pump number 424664 and later pump number 425169 appear in cross-reference data.
When This Part Needs Replacement
Use this oil pump kit when the oil pump is being rebuilt or serviced due to low oil pressure, internal wear, scoring, gear wear, pump housing wear, lubrication-system inspection findings, or a confirmed oil pump issue. Before replacing or rebuilding the pump, check oil level, oil grade, oil filter condition, pickup/strainer condition, relief valve operation, and possible internal oil leakage.
Installation Notes
Installation should follow the Volvo Penta service procedure for the exact engine and oil pump assembly. Inspect the pump gears, housings, shaft, bushings, thrust washer, idler gear, bearing sleeve, mounting hardware, and gasket/sealing surfaces during service. Because catalog diagrams show many surrounding oil pump parts separately, confirm whether the job requires the kit only or additional individual pump components.
Alternate/Superseded Part Numbers
- Volvo Penta 276158 — oil pump kit / overhaul kit reference
- VOLVO~276158 — supplier SKU format
- EuroRicambi 88500081 — aftermarket oil pump kit cross-reference
- EUROTEC 88000873 — aftermarket cross-reference
- LASO 9858 1810 — repair kit / oil pump cross-reference
- Volvo 425169 — related oil pump reference
- Volvo 424664 — earlier related oil pump reference shown in cross-reference data
Parts Desk Insight
The important detail is that 276158 is the oil pump kit, not the full oil pump assembly. Match it against the customer's existing pump number—especially 424664 or 425169—before selling, since the surrounding pump housings, gears, shaft, and hardware are diagram-specific.
Special Order — this product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
