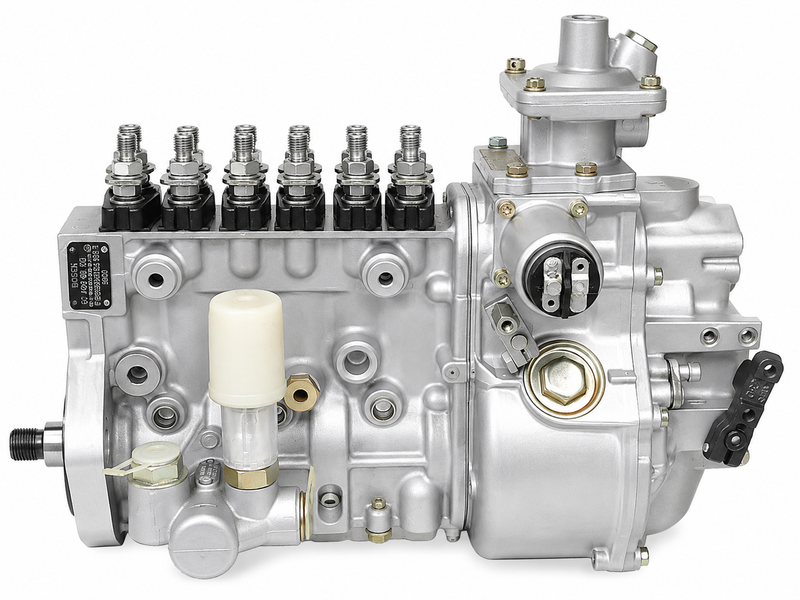

Volvo Penta Injection Pump 864684 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Injection Pump 864684 is an OEM diesel fuel injection pump assembly used on TD61AG and TD61G Volvo Penta engine applications. Current replacement references show this pump supersedes to Volvo Penta exchange pump 3803705, with Bosch cross-reference 0403476096.
Key Features
- Genuine Volvo Penta injection pump reference
- Original part number: 864684
- Exchange / replacement reference: 3803705
- Bosch cross-reference: 0403476096
- Product type: diesel fuel injection pump assembly
- Application shown for TD61AG and TD61G
- Related fuel-system diagram includes feed pump, governor, pump elements, overflow valve, gaskets, and sealing components
- High-value, calibration-sensitive fuel-system component
Engine Compatibility
Commonly associated with Volvo Penta TD61AG and TD61G diesel engines. Some Volvo Penta diagram references also associate this pump family with larger industrial/auxiliary engine applications, so final fitment should be checked by serial number and pump tag.
Serial Number Fitment Notice
Confirm fitment by engine model, engine serial number, Volvo Penta parts diagram, and the tag number on the existing pump before ordering. Injection pumps can differ by calibration even when the external pump body looks similar.
When This Part Needs Replacement
Replace or service the injection pump if the engine is hard to start, smokes excessively, lacks power, runs unevenly, surges, leaks fuel, has poor throttle response, or fails fuel-system diagnostic testing.
Installation Notes
Installation should be handled by a qualified diesel technician. Keep the fuel system clean, verify pump timing, replace required seals, prime and bleed the fuel system, and check carefully for leaks after installation.
Alternate/Superseded Part Numbers
- 864684
- 3803705
- Bosch 0403476096
Parts Desk Insight
This pump has useful match points: TD61AG / TD61G, Volvo original 864684, exchange pump 3803705, and Bosch number 0403476096. The safest final check is still the pump tag and engine serial number before ordering.
⚠️ Special Order: This product is not currently in stock but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
