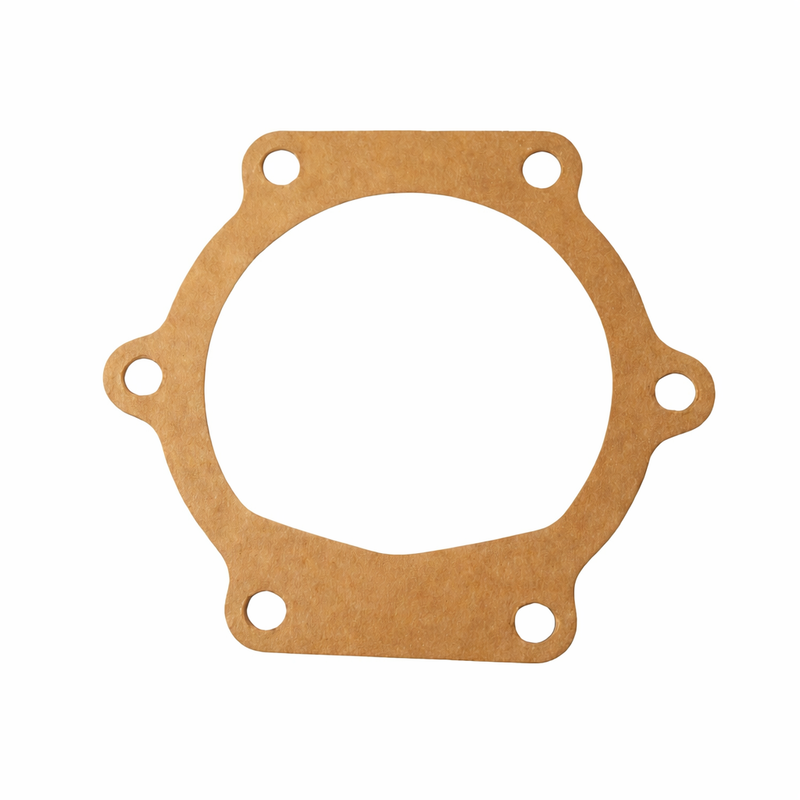

Volvo Penta Gasket 819959
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Volvo Penta 819959 is a genuine water pump gasket used on selected Volvo Penta raw-water pump applications. Current marine parts sources consistently identify 819959 as a water pump or pump cover gasket, and replacement-market references tie it to Johnson F4 six-bolt pump applications and a broad mix of classic Volvo Penta gasoline and diesel engines.
Key Features
- Genuine Volvo Penta part number 819959.
- Commonly described as a water pump gasket / pump cover gasket.
- Common dimensional reference: about 62 mm across flats.
- Common aftermarket and cross-reference numbers include Volvo Penta 840385, 804690, and 3580067, depending on catalog style.
- Dealer weight reference: 0.003 kg.
Engine Compatibility
Current supportable references tie Volvo Penta 819959 to a broad range of Volvo Penta engines with F4 six-hole pump applications, including D1-13, D1-20, D1-30, D2-40, MD2010, MD2020, MD2030, MD2040, MD1B, MD2B, MD3B, MD11, MD17, AQ115A, AQ115B, AQ130A, AQ130B, AQ130C, AQ130D, AQ165A, AQ170A, AQ170B, AQ170C, AQD21A, BB115A, BB115B, BB115C, BB165A, BB170A, BB170B, BB170C, MB20A, MB20B, MB20C, and MD21A. Some current references also extend fitment to later D2-50, D2-55, and D2-60 family listings, so the safest final match is still by serial number and pump style.
Serial Number Fitment Notice
Water pump gasket fitment can vary by raw-water pump model, cover pattern, and production break. Confirm Volvo Penta 819959 against your exact engine serial number and pump configuration before ordering, especially if you are matching an older gasket by appearance only.
When This Part Needs Replacement
Replace this gasket any time the water pump cover is removed, or when the existing gasket shows leakage, tearing, compression set, or damage during impeller service. On raw-water pumps, this is a routine service gasket and is best replaced during every cover-off maintenance interval.
Installation Notes
Clean the pump cover and housing surfaces fully before installation, remove all old gasket material, and confirm the six-hole cover pattern and gasket shape match your exact pump. Because current references specifically tie this gasket to Johnson F4-style six-bolt pump applications, pump identification is an important check before ordering.
Alternate/Superseded Part Numbers
Current replacement references commonly associate Volvo Penta 819959 with Volvo Penta 840385, 804690, and 3580067. Listings may also appear as 819959-8 or 8199598 in seller catalogs, but the cleanest genuine ordering reference remains Volvo Penta 819959.
Parts Desk Insight
For small raw-water pump service parts like this, the biggest mistake is ordering by engine family alone instead of matching the actual pump cover pattern. On older Volvo Penta engines, pump style can vary across nearby model years, so confirming the gasket against the installed pump is the cleanest way to avoid downtime during an impeller job.
