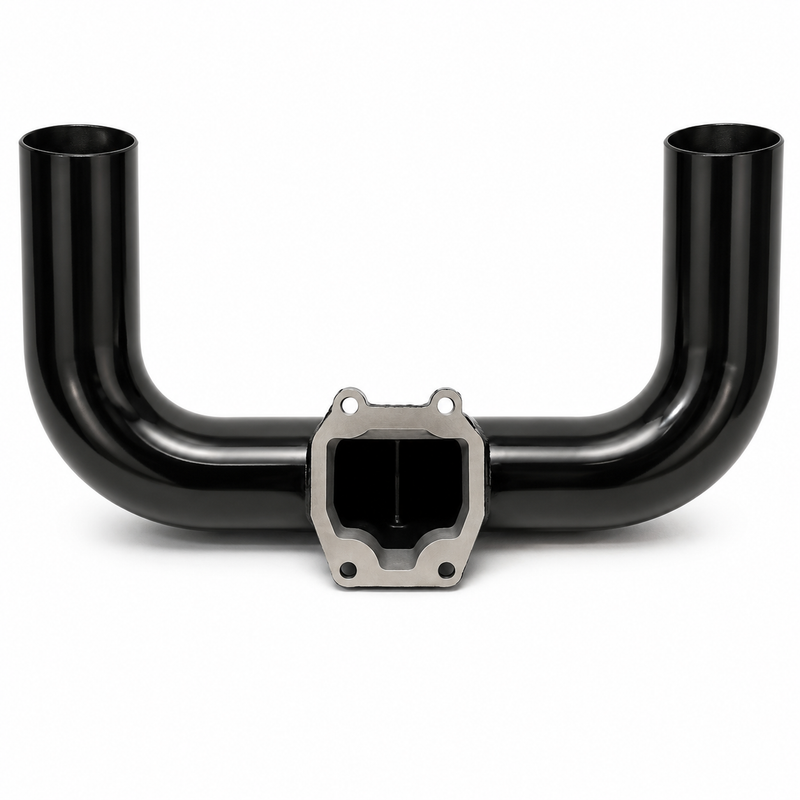

Volvo Penta Pipe Set 22504281 - Special Order
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Volvo Penta Pipe Set 22504281 is a genuine Volvo Penta pipe set used in the exhaust brake section of select Volvo Penta D8 / TAD industrial engine inlet and exhaust systems. In the Volvo Penta TAD840-43VE Exhaust Brake diagram, this pipe set is shown at diagram position 11, alongside the exhaust brake, gasket, V-clamp, air valve, pipe, bracket, flange screws, and cable tie used in the same exhaust brake assembly.
Key Features
- Genuine Volvo Penta pipe set
- Part number: 22504281
- Diagram group: Inlet and Exhaust System
- Sub-group: Exhaust Brake
- Diagram position: 11
- Confirmed diagram application: TAD840-43VE
- Listed supplier SKU format: VOLVO~22504281
- Listed supplier weight: approximately 1.0 kg
Engine Compatibility
Confirmed Volvo Penta catalog application:
- TAD840-43VE — Exhaust Brake / Inlet and Exhaust System diagram
Volvo Penta D8 parts-book references also associate this exhaust brake diagram family with select TAD840 / TAD850 / TAD853 engine variants, including TAD840GE, TAD841-43GE, TAD850-52VE, TAD851-53GE, and TAD853VE. Final fitment should be matched to the engine serial number and the exact Volvo Penta exhaust brake diagram.
Serial Number Fitment Notice
Fitment depends on the engine build, exhaust brake configuration, pipe routing, bracket layout, and surrounding installation hardware. Match the existing pipe set, engine serial number, and Volvo Penta exhaust brake diagram before ordering. Similar D8 / TAD engines may use different exhaust brake pipework, brackets, fittings, or air valve arrangements.
When This Part Needs Replacement
Replace the pipe set if it is cracked, damaged, leaking, corroded, blocked, incorrectly routed, or damaged during exhaust brake service. Also inspect this part when the exhaust brake system has air-control issues, damaged brackets, loose pipework, or visible wear around the fittings and mounting points.
Installation Notes
Inspect the full exhaust brake assembly during service, including exhaust brake 22719433, gasket 21588074, V-clamp 21472836, air valve 21739606, pipe 22504276, fitting nut 941521, ferrule 980779, nipple 984789, bracket 22504284, bracket 22618106, flange screws, and cable tie 948211 where applicable. The diagram shows these components separately, so confirm whether the repair requires the pipe set only or additional installation hardware.
Alternate/Superseded Part Numbers
- Volvo Penta 22504281 — pipe set reference
- VOLVO~22504281 — supplier SKU format
Parts Desk Insight
This pipe set belongs to the exhaust brake assembly, so the routing and bracket layout matter. Matching the Volvo Penta diagram and existing pipe arrangement helps ensure the replacement lines up correctly with the exhaust brake, air valve, fittings, and support brackets.
⚠️ Special Order — This product is not currently in store inventory but may be available from the Manufacturer. Special Orders may take up to 2 weeks to arrive. Call the parts desk before ordering if you need a closer estimate on delivery time.
