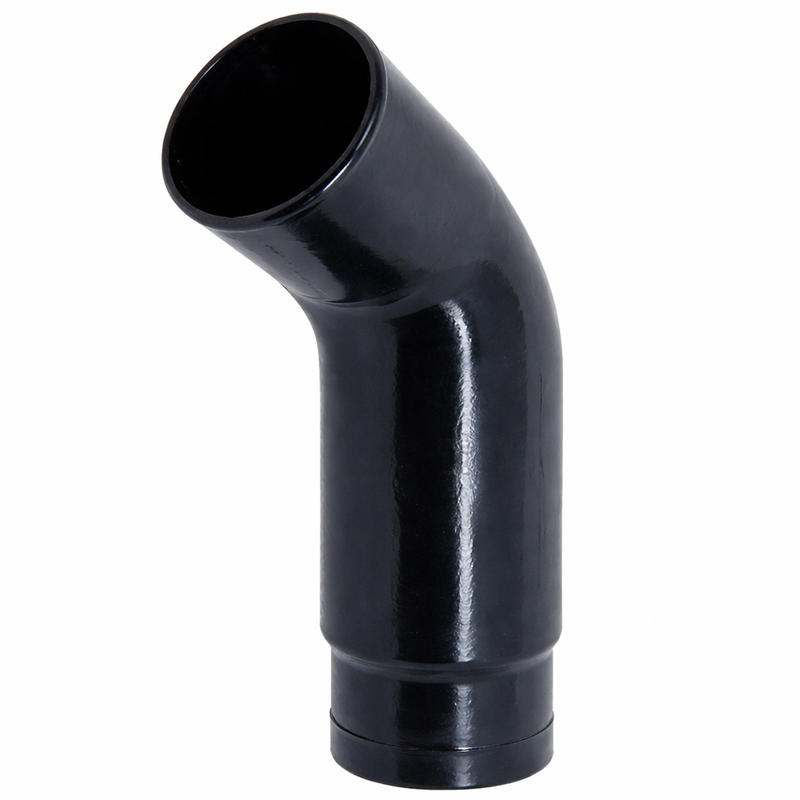

Volvo Penta Exhaust Elbow 3863189
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Details
- Part Number: 3863189
- Brand: Volvo Penta
- Official Product Type: Exhaust Elbow
- Supersedes: 3852738 • 913583
- Replaced By: 3863189 is the current active part number
- Engine Family: 5.0L and 5.7L Volvo Penta gasoline, SX-A propulsion
- System: Marine exhaust-pipe routing assembly
- Diagram Position: Item 4 in the applicable Volvo Penta exhaust schematic
- Sold: Individually — gasket kit 3863191 is recommended and sold separately
Compatible Applications
Fitment depends on the complete engine designation, exhaust configuration, and serial number. Use only where the engine’s exhaust diagram specifies 3863189. Confirm the engine serial number and propulsion package before ordering.
- 5.0Gi — SX-A (selected versions)
- 5.0GXi — SX-A (selected versions)
- 5.0OSi — SX-A (selected versions)
- 5.7Gi — SX-A (selected versions)
- 5.7GSi — SX-A (selected versions)
- 5.7GXi — SX-A (selected versions)
- 5.7OSi — SX-A (selected versions)
- 5.7OSXi — SX-A (selected versions)
Serial Number Fitment Notice
Volvo Penta used several exhaust elbows and pipes with similar shapes across its gasoline engine range. Confirm the engine serial number, elbow orientation, connecting-hose diameters, and schematic position before ordering. Do not select by appearance alone.
Superseded Part Numbers
- 3852738 — earlier reference
- 913583 — earlier reference
Confirm the original elbow configuration before replacing an earlier-number component.
When This Part Needs Replacement
Replace the exhaust elbow when inspection reveals any of the following:
- Internal or external corrosion
- Cracking or impact damage
- Burn-through or exhaust-gas leakage
- Damaged hose-connection surfaces
- Heavy internal carbon or scale accumulation
- Distortion preventing proper exhaust-hose alignment
- Water or soot staining around the connections
Any evidence of water entering the exhaust passage should be investigated immediately to protect the engine from internal corrosion or water ingestion damage.
Installation Notes
Install on clean, flat mating surfaces using a new gasket from kit 3863191 — do not reuse the old gasket. Inspect connecting exhaust hoses, bellows, clamps, pipes, and mounting hardware while the elbow is removed. Replace hardened, cracked, or heat-damaged rubber components and any clamps that are corroded or unable to maintain tension.
Related components in the same exhaust assembly:
- 3863191 — Gasket Kit (recommended with this elbow)
- 3862841 — Exhaust Pipe
- 3852696 — Exhaust Hose
- 3863443 — Hose Clamp
- 3863442 — Hose Clamp
- 3863450 — Bellows
- 3886419 — Exhaust Pipe
- 3886405 — Exhaust Pipe
- 3841013 — Gasket
- 3843166 — Exhaust Hose
- 3886407 — Exhaust Pipe
Follow the Volvo Penta workshop procedure for exhaust alignment, clamp positioning, and leak testing after installation.
View the Volvo Penta exhaust schematic to confirm diagram position and adjacent components.
Parts Desk Insight
Marine exhaust elbows deserve an internal check, not just a look at the outside — a clean exterior can hide significant internal corrosion or restricted passages that will cause problems after reassembly. The most common missed step is skipping the adjoining hoses and downstream exhaust pipe during the same service. If you’re pulling the elbow, those hoses are already accessible, and replacing them now avoids a second disassembly when they fail later.
