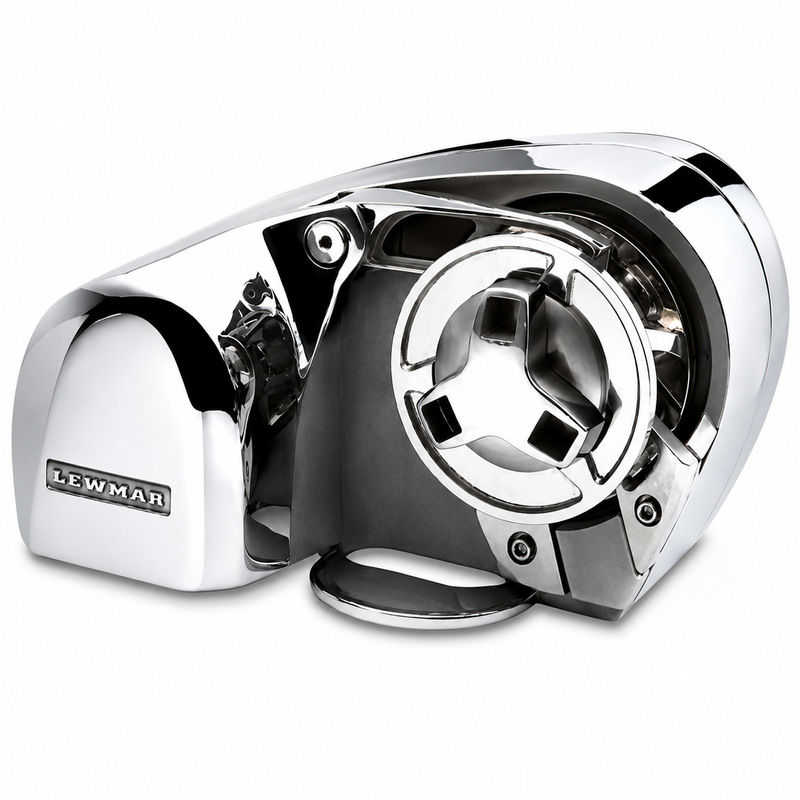

Lewmar Pro-Series 1000H Horizontal Stainless Steel Windlass — 5/16" Kit
The Lewmar Pro-Series 1000H is a horizontal electric anchor windlass built for above-deck installation on boats requiring a compact, high-performance rope-and-chain system. With a 100% 316 stainless steel case, 12V motor, and power-out with manual free-fall capability, it delivers fast, controlled anchor handling with a complete DIY-ready kit.

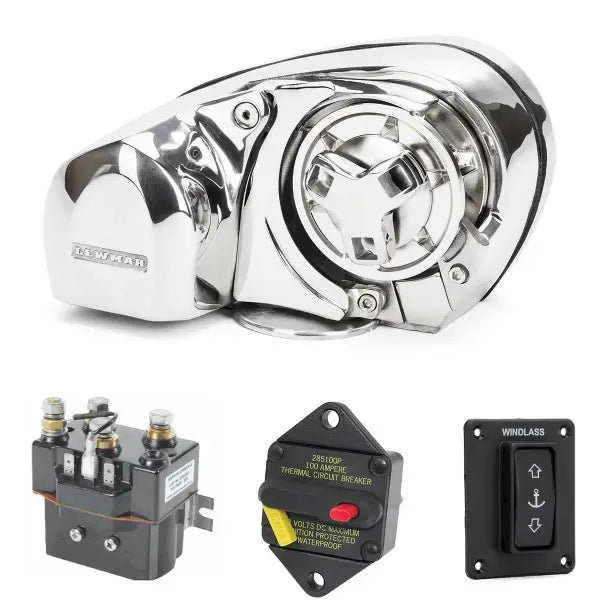

Kit Includes
- Windlass deck unit
- Base gasket seal
- Fast mounting studs
- Installation wrench
- Circuit breaker
- Dual-direction solenoid
- Rocker switch
Key Features
- 100% 316 stainless steel case — maximum corrosion resistance for saltwater and freshwater environments
- 12V motor with fast line speed — efficient powered retrieval and deployment
- Power-out with manual free fall — controlled powered deployment plus gravity free-fall option for rapid anchor drops
- Manual recovery — emergency retrieval using a standard 1/2" socket ratchet
- Above-deck installation — straightforward DIY-ready setup with all hardware included
- 5-year warranty — Lewmar quality assurance
Rode Compatibility — 5/16" Kit
- Rope: 14–16mm (9/16"–5/8") 3-strand nylon; 5/8" 8-plait nylon
- Chain: 5/16" G40/G43 high-test — G40 or G43 grade required; G30 proof coil will not feed correctly
Parts Desk Insights
- Power-out vs. powered-down: This model has power-out with manual free fall — the motor drives the anchor up and allows free-fall deployment by gravity. This is different from a fully powered-down model where the motor controls both directions. Confirm which deployment method suits your anchoring style before ordering.
- Chain grade matters: This kit is calibrated for 5/16" G40/G43 chain. G30 proof coil chain will not feed correctly through the gypsy — confirm your chain grade before ordering.
- Rope-chain splice quality: The transition between rope and chain must be properly spliced and sized. A poorly made or oversized splice will jam at the gypsy and prevent the rode from feeding. Have the splice inspected or made by a rigger if you’re unsure.
- Above-deck installation: Confirm bow roller alignment, anchor locker depth, and rode fall before mounting. The rode must drop freely into the locker without piling up under the gypsy.
- Dual-direction solenoid included: Unlike some kits, this one includes the dual-direction solenoid — confirm your helm and deck switch wiring layout before installation.
- Not sure if the Pro-Series 1000H fits your setup? Call the parts desk with your vessel length, anchor weight, chain size and grade, and deck layout and we’ll confirm the right configuration.
