D4 Engine Parts Prototype

Three-quarter view of a Volvo Penta D4 marine diesel engine on a polished blue studio background

Volvo Penta

D4 engine parts

Shop manually approved service parts and system components for your Volvo Penta D4 with OEM catalog clarity.

Shop D4 parts Find my part

D4 systems

Shop by system

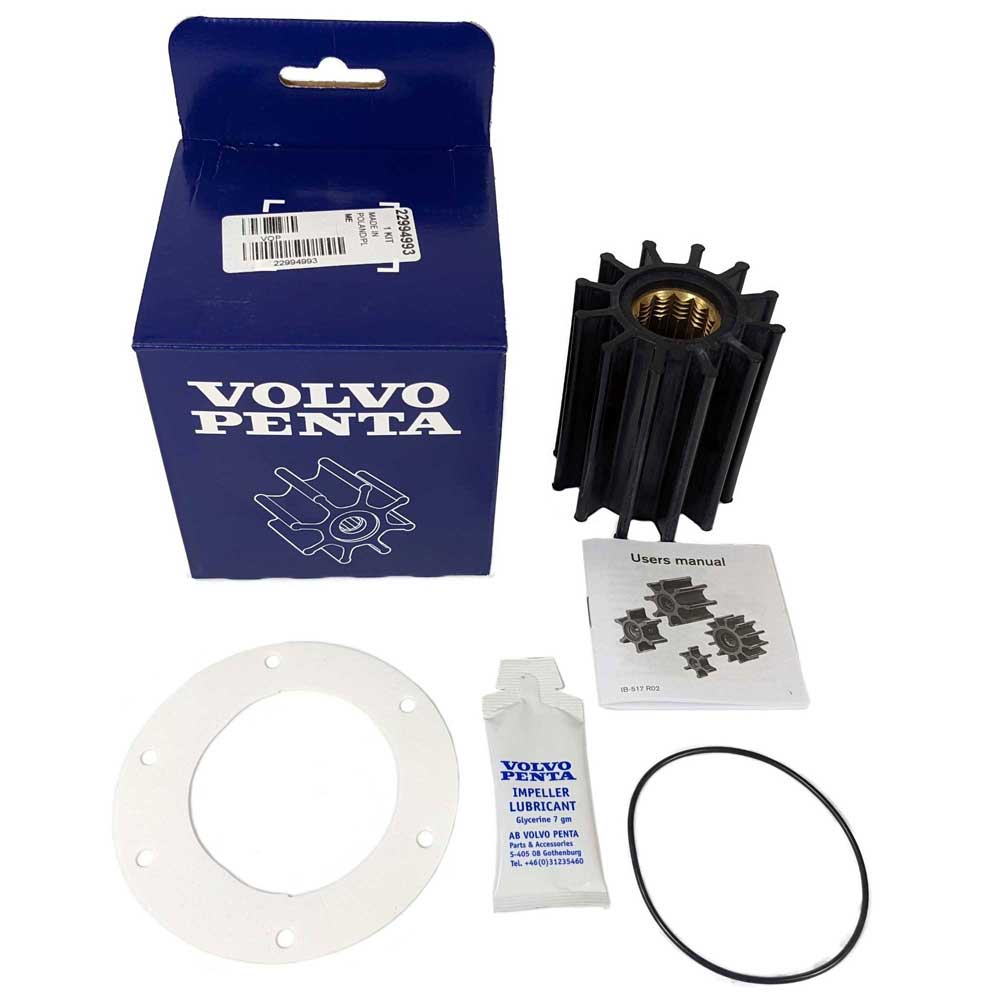

Volvo Penta impeller kit with O-ring and service components CoolingPumps, impellers, hoses, thermostats Volvo Penta fuel filter and gasket on a white background FuelFilters, separators, injectors, lines Volvo Penta relay electrical component with metal terminals ElectricalAlternators, relays, sensors, harnesses Volvo Penta gasket kit with seals and washers arranged on a white background GasketsSeals, O-rings, kits, service hardware

Popular service parts

Approved D4 parts

Shown only when selected by the merchant. No inferred fitment.
Genuine Volvo Penta oil filter with seal Manual approvalVolvo Penta genuine oil filter Volvo Penta impeller service kit Manual approvalImpeller service kit Volvo Penta fuel filter with rubber gasket Manual approvalFuel filter service part Volvo Penta marine alternator on white background Manual approvalMarine alternator assembly

Specifications

D4 model reference

Reference specs for model identification only. Always verify parts by serial number before ordering.
Specification D4-180 D4-225 D4-260 D4-300
Rated rpm 3500 3500 3500 3500
Crankshaft power, kW 132 165 191 221
Crankshaft power, hp 180 225 260 300
Rating Rating 4 Rating 4 Rating 5 Rating 5
Emission compliance EU RCD Stage II, EPA Tier 3, IMO NOx Tier II IMO NOx Tier II, EU RCD Stage II, EPA Tier 3 IMO NOx Tier II, EU RCD Stage II, EPA Tier 3 IMO NOx Tier II, EU RCD Stage II, EPA Tier 3
Number of cylinders 4 4 4 4
Aspiration Turbo with charge air cooler Turbo with charge air cooler Turbo with charge air cooler Turbo with charge air cooler
High-pressure fuel injection Common-rail fuel injection Common-rail fuel injection Common-rail fuel injection Common-rail fuel injection
Control system Electronic Vessel Control Electronic Vessel Control Electronic Vessel Control Electronic Vessel Control
Cooling system Heat exchanger cooling, keel cooling Heat exchanger cooling, keel cooling Heat exchanger cooling, keel cooling Heat exchanger cooling, keel cooling
Fuel consumption, g/kWh 220 232 230 221
Displacement, L 3.7 3.7 3.7 3.7

PartsFit placeholder

Check model and serial

This captures the information a parts specialist needs. Matching logic is intentionally not active in this prototype.
