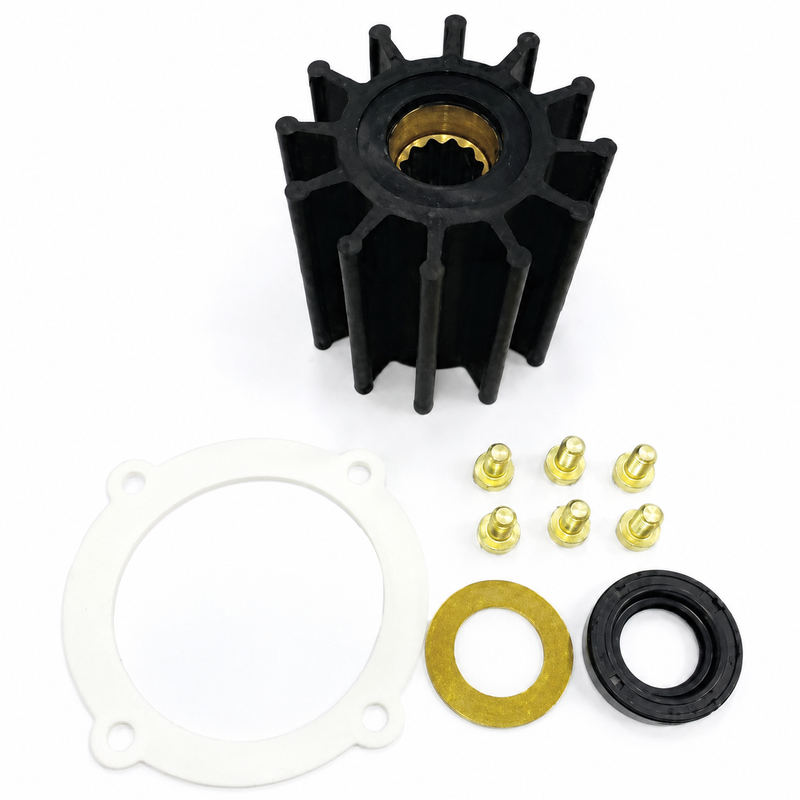

Arco IP003 Johnson Pump Replacement Impeller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Product Description
The ARCO IP003 is a premium replacement flexible impeller for compatible Johnson Pump circulating-water pumps. It replaces Johnson Pump impeller 09-45825 and Sierra 18-3089, restoring pumping performance when the original impeller has become worn, cracked, hardened or damaged. ARCO lists the IP003 specifically for circulating-water-pump service.
Key Features
- ARCO part number: IP003
- Replacement impeller for compatible Johnson Pump applications
- Intended for a circulating-water pump
- Replaces Johnson Pump 09-45825
- Cross-references Sierra 18-3089
- Premium new replacement component
- UPC / GTIN: 693006030159
Pump Compatibility
The ARCO IP003 is designed for circulating-water pumps originally equipped with Johnson Pump impeller 09-45825. It may also be used where Sierra 18-3089 is specified as the replacement impeller.
Because Johnson Pump manufactures several different pump sizes and impeller configurations, compatibility should be confirmed through the original impeller number or pump service information rather than by appearance alone.
Fitment Notice
Before ordering, verify that the existing impeller or pump documentation identifies one of the following:
- ARCO IP003
- Johnson Pump 09-45825
- Sierra 18-3089
Do not select this impeller solely because the installed unit is a Johnson Pump. Confirm the exact impeller reference, hub configuration and pump model before installation.
When This Part Needs Replacement
Replace the impeller when:
- Cooling-water flow becomes weak or inconsistent
- The pump becomes difficult to prime
- The engine begins running hotter than normal
- Impeller blades are cracked, torn or permanently deformed
- Rubber has become hardened or brittle
- Blade tips are missing
- The pump has operated without water
- Preventive cooling-system service is due
If sections of the old impeller are missing, inspect downstream hoses, fittings and cooling passages for loose fragments before returning the system to service.
Installation Notes
- Shut down the engine and disconnect the battery.
- Close the raw-water intake seacock where fitted.
- Note the pump-cover orientation before disassembly.
- Remove the old impeller without damaging the housing or shaft.
- Inspect the cover plate, cam, shaft and pump body for scoring or wear.
- Locate any missing pieces from the old impeller.
- Lubricate the replacement impeller with a suitable impeller-installation lubricant.
- Align the hub carefully with the pump shaft.
- Replace the cover gasket or sealing component where required.
- Tighten the cover fasteners evenly.
- Restore the water supply before starting the engine.
- Confirm proper water flow and inspect the pump for leaks immediately after startup.
A worn, distorted or heavily scored pump housing may require additional pump service rather than an impeller replacement alone.
Alternate / Cross-Reference Part Numbers
- ARCO: IP003
- Johnson Pump: 09-45825
- Sierra: 18-3089
- UPC / GTIN: 693006030159
Compatible & Related Parts
When servicing flexible-impeller circulating-water pumps, consider these related impeller kits:
- Jabsco Neoprene Impeller Kit 17936-0001-P – flexible raw-water pump service kit
- Jabsco Neoprene Impeller Kit 17954-0001-P – flexible raw-water pump service kit
- Jabsco Neoprene Impeller Kit 17370-0001-P – flexible raw-water pump service kit
- Jabsco 4568-0001-P Profile K Neoprene Impeller Kit – flexible impeller kit
Parts Desk Insight
The safest way to identify the IP003 is by matching Johnson Pump 09-45825 or Sierra 18-3089. Johnson Pump produces many impellers that can appear similar but differ in diameter, width and hub design, so matching the number is more reliable than comparing the impeller visually.
