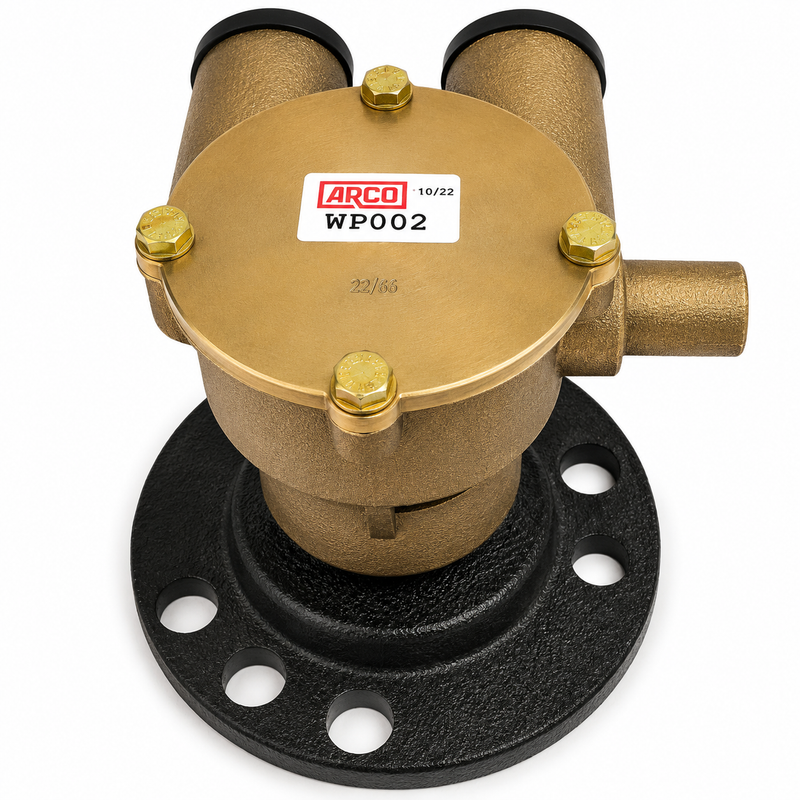

Arco WP002 Volvo/ Indmar Replacement Water Pump
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Product Description
The ARCO WP002 is a complete premium replacement engine water pump for compatible Volvo Penta and Indmar marine-engine applications. It is specifically listed for Indmar Ford 302 engines and replaces several legacy Volvo Penta circulating-water pump numbers. This complete assembly is intended to restore proper coolant circulation when the original pump is leaking, noisy, corroded or mechanically worn.
Key Features
- ARCO part number: WP002
- Complete replacement engine water-pump assembly
- Designed for compatible Indmar Ford 302 marine engines
- Direct replacement for multiple Volvo Penta pump numbers
- Premium new-manufacture replacement—not a rebuilt unit
- Manufactured and individually tested before packaging
- Meets or exceeds applicable original-equipment performance standards
- UPC / GTIN: 693006030104
Engine Compatibility
Confirmed application:
- Indmar Ford 302 marine engine
- Compatible Volvo Penta installations originally equipped with:
- 841640
- 856952
- 857451
Marine Ford 302 engines can use different cooling pumps and accessory arrangements depending on the mariniser, model year and installation. Fitment should therefore be confirmed using the original pump number rather than engine displacement alone.
Serial Number Fitment Notice
Before ordering, verify that the original pump or engine parts diagram identifies one of these references:
- ARCO WP002
- Volvo Penta 841640
- Volvo Penta 856952
- Volvo Penta 857451
- Sierra 18-3586-1
Do not select this pump solely because the engine is a Ford 302. Confirm the pump mounting pattern, pulley arrangement, hose connections and original part number, particularly on repowered or modified boats.
When This Part Needs Replacement
Replace the complete water pump when:
- Coolant leaks from the shaft seal or housing
- The pump bearing becomes noisy
- The pulley develops wobble or excessive movement
- Engine temperature rises despite proper coolant level
- Coolant circulation becomes weak or inconsistent
- The shaft binds or becomes difficult to rotate
- The housing is cracked or heavily corroded
- Belt alignment cannot be maintained because of bearing wear
A leaking seal or loose shaft bearing generally indicates that the complete pump assembly should be replaced.
Installation Notes
- Allow the engine to cool completely before service.
- Disconnect the battery.
- Drain the cooling system below the pump level.
- Record the original belt routing and pulley position.
- Inspect the pulley, drive belt and mounting hardware.
- Clean the engine mounting surface thoroughly.
- Install the correct gasket or sealing components required by the engine service procedure.
- Tighten mounting bolts evenly to the specified torque.
- Confirm pulley alignment before tensioning the belt.
- Refill the system with the specified coolant mixture.
- Bleed trapped air according to the engine manufacturer's procedure.
- Run the engine and inspect for leaks, proper belt tracking and stable operating temperature.
Professional installation is recommended when the original pulley must be transferred or when the cooling system requires a specific bleeding procedure.
Alternate / Replacement Part Numbers
- ARCO: WP002
- Volvo Penta: 857451
- Volvo Penta: 856952
- Volvo Penta: 841640
- Sierra: 18-3586-1
- UPC / GTIN: 693006030104
Compatible & Related Parts
When servicing the Volvo Penta cooling system, consider these related parts:
- Volvo Penta Impeller Kit 22994993 – raw-water pump service kit
- Volvo Penta Impeller Kit 21951352 – raw-water pump service kit
- Volvo Penta Impeller Kit 22222936 – raw-water pump service kit
- Volvo Penta Impeller Kit 24139377 – raw-water pump service kit
- ARCO WP003 Volvo Penta Replacement Water Pump – related ARCO pump (Volvo Penta 3860703 / Indmar Ford 351)
Parts Desk Insight
The WP002 is the Ford 302 version in ARCO's Volvo Penta replacement-pump range. It should not be confused with the WP003, which has different supported engine applications and replaces Volvo Penta 3860703. Matching 841640, 856952 or 857451 is the safest way to confirm the WP002.
