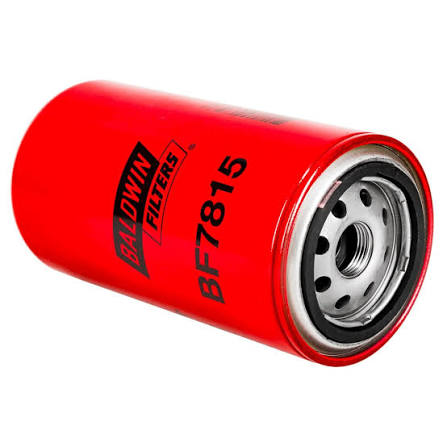

Baldwin BF7815 High-Efficiency Fuel Spin-On Filter | 4 Micron | Cummins ISC 8.3L

Baldwin BF7815 High-Efficiency Fuel Spin-On Filter — 4 Micron | Cummins ISC 8.3L

Overview

The Baldwin BF7815 is a high-efficiency spin-on fuel filter for Cummins ISC 8.3L diesel engine fuel systems, providing 4-micron absolute filtration to protect sensitive diesel injection components from fine particulate contamination. Baldwin’s heavy-duty application guide specifically identifies BF7815 as the replacement for Cummins 3959612, with a direct Fleetguard equivalent of FF5488. The 7/8"-14 thread and 4-micron absolute media rating are the two most important fitment identifiers — confirm both against the existing filter and engine specification before ordering, as filters with similar dimensions may use different media ratings.

Important: BF7815 is a high-efficiency fuel filter, not a fuel/water separator. It does not have a water-separation or drain function. If your application requires water separation, a separate fuel/water separator assembly is needed upstream of this filter.

Compatible Applications

• Cummins ISC 8.3L diesel engine — primary catalog application
• Kenworth trucks fitted with Cummins ISC 8.3L
• Mack trucks fitted with Cummins ISC 8.3L
• Peterbilt trucks fitted with Cummins ISC 8.3L
• Sterling trucks fitted with Cummins ISC 8.3L
• Commercial bus and heavy equipment applications cross-referencing Cummins 3959612 or Fleetguard FF5488
• Case / New Holland equipment cross-referencing 87349761, 87360565, or 87360572
• Komatsu equipment cross-referencing 600-311-3750 or 600-319-3750
• Doosan equipment cross-referencing K1008143
• Confirm engine model, existing filter number, thread, and micron rating before ordering

Dimensions

• Thread: 7/8"-14
• Outside diameter: 3-23/32 in. / 94.5 mm
• Length: 7-5/32 in. / 181.8 mm
• Filtration: 4 micron absolute
• Gasket: G381-A (furnished with filter)

Cross-Reference / Alternate Part Numbers

• Baldwin: BF7815
• Cummins: 3959612
• Fleetguard: FF5488
• Donaldson: P550774
• WIX: 33697, 533697
• NAPA Gold: 3697
• Luber-Finer: LFF5488
• FRAM: P10275
• Case / New Holland: 87349761, 87360565, 87360572
• Komatsu: 600-311-3750, 600-319-3750
• Doosan: K1008143

Cross-reference numbers are provided as a fitment aid only. Always confirm against the original OEM filter number, thread size, and micron rating before substituting.

Service Interval

Replace the BF7815 at the engine manufacturer’s scheduled fuel-filter service interval. For Cummins ISC 8.3L, consult the engine operation and maintenance manual for the specified interval based on hours of operation, fuel quality, and operating conditions. Replace sooner if:

• Fuel restriction increases or engine power becomes inconsistent under load
• Starting becomes difficult due to restricted fuel delivery
• Contaminated fuel has entered the system
• Operating in conditions with high fuel particulate levels (poor-quality fuel, storage tank sediment)
• The filter canister or sealing surface is damaged

Installation Notes

• Shut off the fuel supply before beginning where an isolation valve is fitted
• Remove the old filter and confirm its gasket has not remained on the filter head
• Clean the filter-head sealing surface
• Compare the new filter’s thread, gasket, and body length against the removed filter before installation
• Lightly lubricate the new filter’s G381-A gasket with clean diesel fuel before installation
• Install by hand per Baldwin’s tightening specification — do not overtighten
• Prime the fuel system per the Cummins ISC service manual before attempting to start — failure to prime will result in extended cranking and potential injection system damage
• Start the engine and inspect the filter head and gasket for leaks
• Confirm normal fuel pressure where instrumented

Related Products

• Baldwin Fuel/Water Separator Filter BF1259
• Baldwin Fuel Filter Cartridge PF311
• Baldwin BF1253 Fuel/Water Separator Spin-On Filter with Drain — Racor R24S
• Baldwin B179 Heavy-Duty Spin-On Oil Filter — 1-16 UN
• Fleetguard Fuel Filter FF5072
• Fleetguard Fuel Water Separator FS1280
• AMSOIL 15W-40 Heavy-Duty Diesel & Marine Oil AME1GC — 3.78 L

Technical FAQ

How do I confirm BF7815 fits my Cummins ISC 8.3L?

Check the existing filter number on the engine — if it is Cummins 3959612 or Fleetguard FF5488, BF7815 is the correct Baldwin replacement. Confirm the 7/8"-14 thread and 4-micron absolute rating match your application before ordering.

What does “4 micron absolute” mean?

An absolute rating means the filter captures essentially all particles at or above the stated size under standardized test conditions. A 4-micron absolute rating is a high-efficiency specification appropriate for modern common-rail and electronic unit-injector diesel systems, which have tighter fuel-cleanliness tolerances than older injection designs.

Is BF7815 a fuel/water separator?

No. BF7815 is a high-efficiency fuel filter only — it does not separate or drain water. If your fuel system uses a primary fuel/water separator (such as a Racor 220 or 500 Series), that unit’s element should be serviced separately. See the BF1253 for a Racor R24S-compatible fuel/water separator element.

Do I need to prime the fuel system after replacing this filter?

Yes. Replacing a spin-on fuel filter breaks the fuel circuit. The Cummins ISC 8.3L requires priming before starting to avoid extended dry cranking of the injection system. Follow the priming procedure in the Cummins ISC operation and maintenance manual.

Can BF7815 be used on other Cummins engines?

BF7815 is specifically cataloged for the Cummins ISC 8.3L. Other Cummins engine families use different fuel filter specifications. Do not assume cross-application based on similar dimensions — confirm using the OEM filter number from the specific engine’s service documentation.

What is the difference between BF7815 and BF1253?

BF7815 is a high-efficiency fuel filter (no water separation, no drain) for Cummins ISC 8.3L fuel systems. BF1253 is a fuel/water separator with drain for Racor 220 Series assemblies. They serve different positions in the fuel system and are not interchangeable.

Parts Desk Insights

Best use case: BF7815 is the right filter for customers doing scheduled fuel system maintenance on Cummins ISC 8.3L engines in commercial trucks, buses, and heavy equipment. The direct Cummins 3959612 / Fleetguard FF5488 cross-reference makes it easy to confirm for customers who have a Cummins service record or existing filter box in hand. At $45.38 it is strong value versus OEM Cummins or Fleetguard pricing. The broad cross-reference to Komatsu, Case/New Holland, and Doosan also makes it a useful stocking filter for equipment dealers and service shops covering multiple platforms.

Common customer questions: The most frequent confusion is customers assuming BF7815 includes water separation because it is a large spin-on diesel filter — it does not. Always clarify that it is a fuel filter only, and ask whether the customer’s fuel system has a separate primary water separator that also needs servicing. The second common issue is customers ordering by thread and dimension from a generic cross-reference without confirming the micron rating — the 4-micron absolute specification is important for ISC 8.3L injection system protection and should not be substituted with a lower-efficiency filter.
