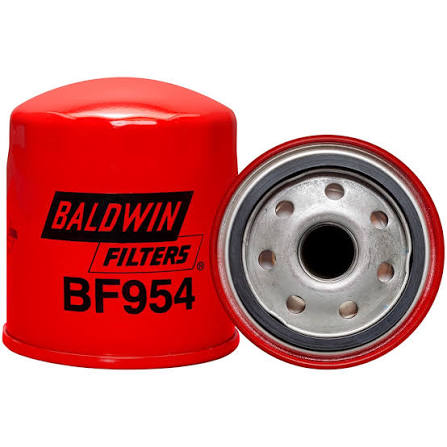

Baldwin BF954 Spin-On Fuel Filter | 4 Micron | Volvo Penta 861477

Baldwin BF954 Spin-On Fuel Filter — 4 Micron | Volvo Penta 861477

Overview

The Baldwin BF954 is a compact spin-on fuel filter using Baldwin’s Microlite cellulose media at 4 micron nominal / 15 micron absolute to remove fine particulate contamination before fuel reaches sensitive injection-system components. Using a 3/4"-16 thread, it is used across a broad range of marine diesel, gasoline, and industrial engine applications. Baldwin’s marine cross-reference specifically identifies BF954 as the replacement for Volvo Penta 861477, Perkins 130366020, and Northern Lights / Lugger 2452020. Confirm the existing OEM filter number and thread configuration before ordering — fuel filter requirements can vary by engine model, production year, and fuel-system configuration.

Important: BF954 is a fuel particulate filter only — it is not a fuel/water separator. If your installation uses a primary water separator upstream, that unit requires separate servicing.

Compatible Applications

• Volvo Penta diesel and gasoline engines cross-referencing Volvo Penta 861477
• Perkins engines cross-referencing Perkins 130366020
• Northern Lights and Lugger marine generators cross-referencing 2452020 / 24-52020
• Isuzu diesel engine applications
• Toyota engine applications
• Case, Ford, Hitachi, John Deere, Kobelco, Komatsu, and Nissan equipment cross-referencing WIX 33386 or NAPA 3386
• Confirm engine model, serial number, and existing filter number before ordering — fuel filter specifications can vary by engine variant, production year, and fuel-system configuration

Dimensions

• Thread: 3/4"-16
• Outside diameter: 3-1/16 in. / 77.8 mm
• Overall height: 3-7/16 in. / 87.3 mm
• Filtration: 4 micron nominal / 15 micron absolute
• Media: Cellulose (Baldwin Microlite)
• Gasket: Integral, furnished with filter

Cross-Reference / Alternate Part Numbers

• Baldwin: BF954
• Volvo Penta: 861477
• Perkins: 130366020
• Northern Lights / Lugger: 2452020 (24-52020)
• WIX: 33386
• NAPA Gold: 3386

Cross-reference numbers are provided as a fitment aid only. Always confirm the original OEM filter number, thread size, and micron rating before substituting.

Service Interval

Replace the BF954 at the engine manufacturer’s scheduled fuel-filter service interval. For Volvo Penta applications, consult the engine’s operation and maintenance manual for the service interval specified for your model and serial range. Replace sooner if:

• Restricted fuel flow or reduced engine power under load is observed
• Fuel contamination or water intrusion has occurred
• The fuel system is being serviced or drained
• The filter canister is damaged or the sealing surface is compromised
• The engine is being returned to service after extended storage

Installation Notes

• Shut off the fuel supply valve before beginning where one is fitted
• Remove the old filter and confirm its gasket has not remained on the filter head
• Clean the filter-head sealing surface
• Lightly lubricate the new filter’s integral gasket with clean diesel fuel or engine oil before installation
• Install by hand per Baldwin’s tightening specification — do not overtighten
• Prime and bleed the fuel system per the engine manufacturer’s procedure before attempting to start — required on most diesel systems after a filter change
• Start the engine and inspect the filter head and gasket for leaks
• Confirm normal engine operation after startup

Related Products

• Volvo Penta Fuel Filter Spin-On 21624740 — OEM
• Volvo Penta Fuel Filter 21718912 — OEM
• Volvo Penta Fuel Filter / Water Separator 20998367 — OEM
• Volvo Penta Fuel Filter Water Separator 3847644 — OEM
• Northern Lights Fuel Filter 4 Micron — 24-52020
• Northern Lights Oil Filter — 24-02002
• Baldwin BF1253 Fuel/Water Separator Spin-On Filter with Drain — Racor R24S
• Baldwin Fuel Filter Cartridge PF311
• Baldwin Fuel/Water Separator Filter BF1259

Technical FAQ

How do I confirm BF954 fits my Volvo Penta engine?

Check the existing filter number on the engine or in your Volvo Penta parts manual. If it is Volvo Penta 861477, BF954 is the correct Baldwin replacement. Also confirm the 3/4"-16 thread and 4-micron nominal filtration rating match your engine’s specification. Volvo Penta fuel filter requirements vary by engine family and production year, so always start with the OEM number.

Is BF954 suitable for Northern Lights / Lugger generators?

Yes, where the existing filter number is Northern Lights / Lugger 2452020 (24-52020). The Northern Lights 4-micron fuel filter in the same family is also available in-store — see the Northern Lights 24-52020 listing. Confirm the existing filter number before substituting.

Is BF954 a fuel/water separator?

No. BF954 is a fuel particulate spin-on filter only — it does not separate or drain water. If your fuel system uses a primary fuel/water separator assembly, that unit requires separate service. See the Volvo Penta fuel filter/water separator listings or the Baldwin BF1253 for separator-type elements.

Do I need to prime the fuel system after replacing BF954?

On most diesel engines, yes. Replacing a spin-on fuel filter breaks the fuel circuit and the system must be primed before starting to avoid extended dry cranking of the injection system. Follow the priming and bleeding procedure in your engine’s service manual.

What is the difference between 4 micron nominal and 15 micron absolute?

The nominal rating (4 micron) reflects the filter’s average capture efficiency under standard conditions. The absolute rating (15 micron) is the size at which essentially all particles are captured. Both figures are relevant when comparing filters across brands — always confirm that a replacement filter’s media rating matches the OEM specification for your application.

Can BF954 be used on gasoline engines?

Baldwin lists BF954 across both diesel and gasoline engine applications where the 3/4"-16 thread and 4-micron filtration specification are appropriate. Confirm the existing OEM filter number before using BF954 on a gasoline application.

Parts Desk Insights

Best use case: BF954 is the right choice for customers maintaining Volvo Penta, Perkins, or Northern Lights / Lugger engines where the existing fuel filter is Volvo Penta 861477, Perkins 130366020, or Northern Lights 2452020. At $19.22 it is an accessible value versus OEM pricing while using Baldwin’s proven Microlite media. It most commonly comes up in annual or biennial service on Volvo Penta gasoline and diesel inboard engines, and in Northern Lights marine generator maintenance schedules. The broad industrial cross-reference (Isuzu, John Deere, Komatsu, Kobelco) also makes it a useful stocking item for mixed-fleet service shops.

Common customer questions: The most frequent issue is customers with Volvo Penta engines assuming any short 3/4"-16 spin-on fuel filter will work — Volvo Penta uses several different fuel filter configurations across its engine range, and the 861477 is specific to certain models. Always ask for the existing OEM filter number or engine model and serial number before confirming the order. The second common question is whether BF954 replaces the fuel/water separator on their engine — it does not. If the customer’s engine has a combination fuel filter/water separator unit, direct them to the OEM Volvo Penta separator listings or the BF1253 for Racor-type assemblies.
