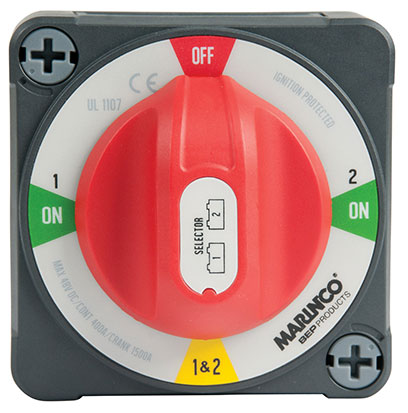

BEP EZ-Mount 1-2-Both-Off Battery Selector Switch, 400 A (771-S-EZ-B)
This BEP 771-S-EZ-B is a 1-2-Both-Off battery selector switch in the EZ-Mount format, rated 400 A continuous for 12 to 48 V systems. It meets UL1107, CE, and ABYC requirements, is ignition protected and IP66 rated, and its removable switch knobs and side plates make servicing straightforward.
Part Details
- Brand: BEP
- Manufacturer part number: 771-S-EZ-B
- Product type: EZ-Mount battery selector switch
- Switch positions: 1-2-Both-Off
- Voltage: 48 V DC (for 12-48 V systems)
- Current ratings: 400 A continuous, 600 A intermittent, 1500 A cranking
- Certifications: Meets UL1107, CE, and ABYC; ignition protected; IP66 rated
- Dimensions: 3.85" x 3.85" x 3.62" (98 x 98 x 92 mm)
- Mounting: Surface mount only
- Sold as: each (pack of 12)
Key Features
- 1-2-Both-Off selector for two battery banks
- Rated 400 A continuous, 600 A intermittent, and 1500 A cranking
- For 12-48 V systems, 48 V DC maximum
- Meets UL1107, CE, and ABYC; ignition protected
- IP66 rated
- Removable side plates and ergonomic removable switch knobs
- Industry standard 3.85" x 3.85" footprint, surface mount only
Compatible Applications
- Two-battery systems that need a 1-2-Both-Off selector
- DC systems from 12 to 48 V
Technical FAQ
- What positions does the switch offer? 1-2-Both-Off: battery 1, battery 2, both banks combined, or off.
- What systems is it rated for? 12 to 48 V DC systems, with a 400 A continuous, 600 A intermittent, and 1500 A cranking rating.
- Is it ignition protected? Yes, it is ignition protected and also IP66 rated.
Also Available
- BEP — EZ-Mount Double Pole On-Off Battery Switch, 400 A — BEP-770-DP-EZ — the double pole On/Off EZ-Mount switch from the same family, used to isolate both battery terminals.
- BEP Heavy Duty Battery Selector Switch 720 On/Off 2-Poles (BEP 720) — a heavy duty two-pole On/Off switch from the same brand.
- BEP Pro Installer Busbars - Busbar HD 8 Stud 650A | 777-BB8S-650 — a Pro Installer busbar from the range the EZ-Mount switches cluster with.
Parts Desk Insights
- Best use case: Selecting between two battery banks, combining them, or switching everything off, on 12 to 48 V DC systems that need a high-current selector.
- Most common customer mistake: Ordering a selector when the installation needs double pole isolation, or the other way around. A 1-2-Both-Off selector switches the positive side between banks, while a double pole switch isolates both terminals, so confirm which behaviour the system needs before ordering.
- Sizing and fitment guidance: Plan for the 3.85" x 3.85" footprint and surface mounting, confirm the system voltage falls within the 12-48 V range, and check the continuous, intermittent, and cranking ratings against the bank's loads. See the Also Available section for the double pole On/Off version.
