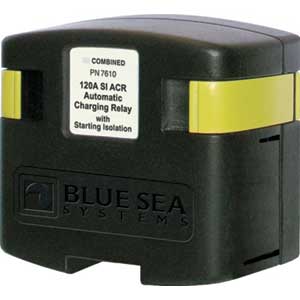

Auto Charging Relay
Solenoid Si 120A 12/24V Acr
- Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
- Designed for 12 or 24 volt systems
- 12/24 volt auto ranging voltage input
- Hermetically sealed contacts/vaporproof
- Waterproof rated IP67 - temporary immersion for 30 minutes
- Ignition protected - safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- Supports high-output alternators up to 120 Amperes
- Dual sensing
Continuous Rating: 120 Amps
Intermittent Rating: 210 Amps
Inrush Rating: 280 Amps
Closed Current Draw: 175mA@12 Volts, 115mA@24 Volts
Open Current Draw: 15mA
Maximum Cable Size: 1/0 AWG
Terminal Stud Size: 3/8"-16 (accepts M10 ring terminal)
Maximum Torque: 140 in-lbs
Relay Contact Position-Combine (30 sec.): 13.6 Volts@12 Volt, 27.2 Volts@24 Volt
Relay Contact Position-Combine (2 min.): 13.0 Volts@12 Volt, 26.0 Volts@ 24 Volt
Relay Contact Position-Open Low (10 sec.): 12.35 Volts@12 Volt, 24.7 Volts@ 24 Volt
Relay Contact Position-Open Low (30 sec.): 12.75 Volts@ 12 Volt, 25.5 Volts@ 24 Volt
Relay Contact Position-Open High: 16.0 Volts@12 Volt, 30.0 Volts@24 Volt
- Brand: Blue Sea Systems
- Manufacturer part #: 7610
- Sold as: EA (pack of 2)
- Catalogue: Western Marine 02-022 – Battery / AC Selector
