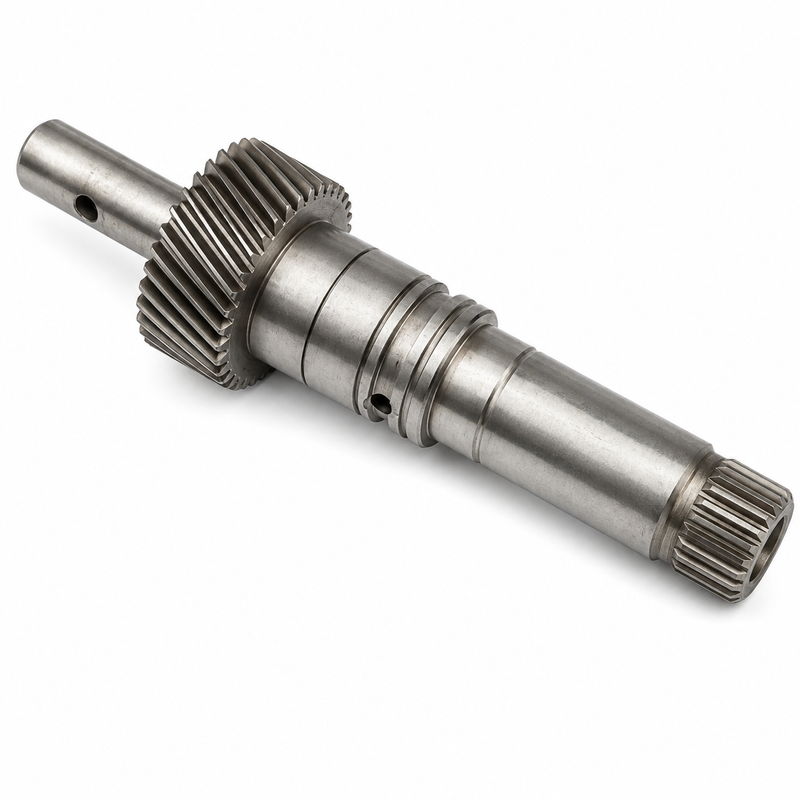

Borg Warner Velvet Drive Input Shaft – 71C / 72VDR Series | 71C-3A16

Borg Warner Velvet Drive Input Shaft – 71C / 72VDR Series | Part 71C-3A16

A direct-replacement input shaft for Borg Warner Velvet Drive 71C and 72VDR series marine transmissions. The input shaft is the primary rotating component that transfers engine torque from the flywheel coupling into the transmission — it is the first point of power entry and must be in correct condition for the transmission to shift, engage, and hold load reliably. This part is typically replaced during a full transmission rebuild or when the shaft shows wear, damage, or spline deterioration that cannot be corrected by other means.

Part Details

• Part Number: 71C-3A16
• Brand: Borg Warner
• Product Type: Transmission Input Shaft
• Transmission Family: Velvet Drive – 71C / 72VDR Series
• System: Marine transmission – input / power transfer
• Diagram Position: Input shaft assembly — refer to the Velvet Drive 71C/72C parts diagram, input shaft section
• Condition: New OEM replacement

Compatible Applications

• Borg Warner Velvet Drive 71C series marine transmissions
• Borg Warner Velvet Drive 72VDR series marine transmissions (reverse-gear configuration)
• Marine inboard applications where part number 71C-3A16 is specified in the transmission parts diagram
• Confirm fitment against your transmission model number, ratio, and parts diagram before ordering

When to Replace

• During a full Velvet Drive 71C or 72VDR transmission rebuild
• When the input shaft splines show wear, rounding, or damage
• When vibration or noise is traced to the input shaft or coupling interface
• When the shaft shows scoring, cracking, or dimensional wear beyond service limits

Installation Notes

• Input shaft replacement requires full transmission removal and disassembly — refer to the Velvet Drive 71C/72C service manual for the correct procedure
• Inspect the flywheel coupling, input bearing, and all seals before reassembly
• Replace all seals and gaskets disturbed during disassembly — do not reuse old seals
• Verify correct shaft orientation and torque all fasteners to specification
• Check coupling alignment after reinstallation

Technical FAQ

• What is the difference between the 71C and 72VDR? The 71C is the standard Velvet Drive unit; the 72VDR is the reverse-gear variant. The input shaft part number 71C-3A16 applies to both — confirm against your transmission’s model plate and parts diagram.
• Can I replace just the input shaft without a full rebuild? In most cases, no — accessing the input shaft requires full disassembly. If the transmission is already apart, replace all wear items at the same time.
• What other parts should I replace at the same time? At minimum, replace all seals, the shift spool O-ring (4804H), and inspect the oil pump (71C-A60) for wear.

Related Parts

• Borg Warner Velvet Drive Oil Pump – 71C / 72C Series (71C-A60)
• Borg Warner Shift Spool O-Ring – Velvet Drive 71C / 72C (4804H)
• Crusader Damper Plate 302/351 – SAE #0 / BorgWarner (R140001)

Parts Desk Insights

The input shaft is one of the highest-value components in a Velvet Drive rebuild — it’s the right part to replace when spline wear or shaft damage is confirmed on inspection, or when a transmission is being fully rebuilt and the shaft is at or near service limits. The most common mistake is ordering the input shaft without first confirming the exact transmission model and ratio from the model plate on the unit itself; the 71C and 72VDR share this part number, but other Velvet Drive variants use different shafts. Because the transmission must be fully disassembled to access this part, it’s always worth replacing the shift spool O-ring (4804H) and inspecting the oil pump (71C-A60) at the same time — the labour to get back in is the same either way.
