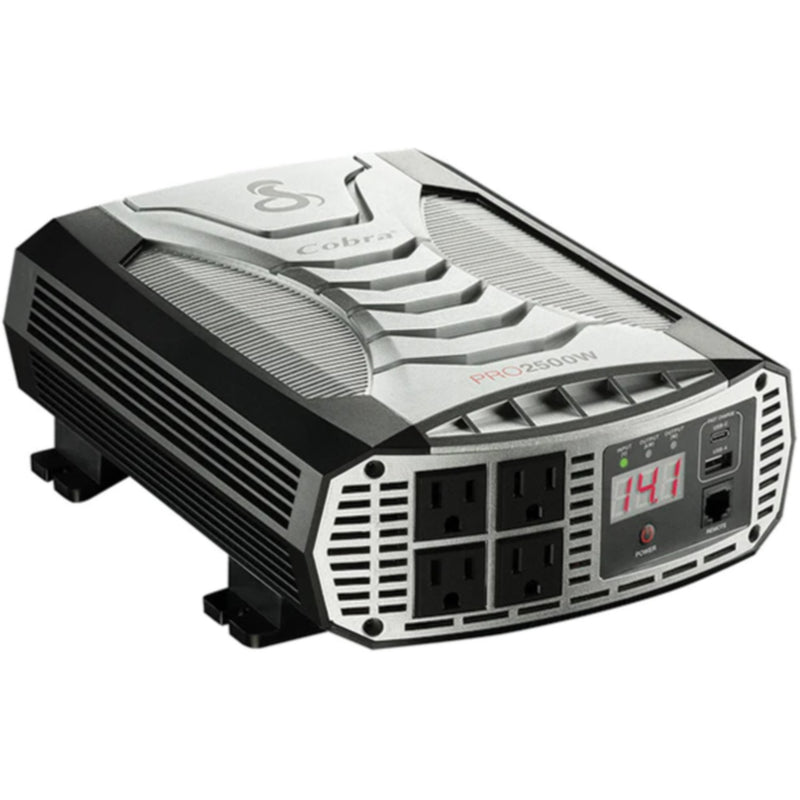

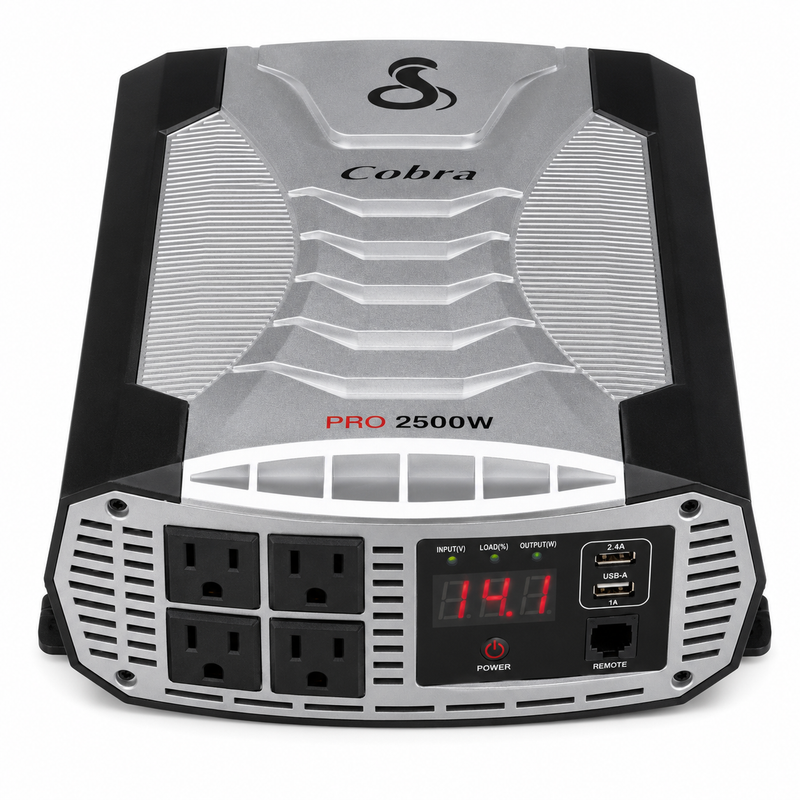

Cobra CPI2500W Power Inverter, 2500 Continuous / 5000 Peak

The Cobra CPI2500W PRO 2500W inverter converts power from a 12-volt battery bank into 115-volt AC power for tools, electronics and medium-to-large appliances. It supplies 2,500 watts of continuous modified sine wave output and up to 5,000 watts of peak power, with four GFCI-protected AC outlets plus USB-A and USB-C fast-charging ports. This high-output model is intended for direct battery connection and includes four 48-inch #4 AWG power cables.

Key Features

• 2,500 watts of continuous AC output
• 5,000 watts of peak output for brief startup loads
• Approximately 90% conversion efficiency
• Modified sine wave AC output
• Four grounded, GFCI-protected AC outlets
• USB-A and USB-C 15-watt fast-charge ports
• Digital operating display
• Dual temperature-controlled cooling fans
• Cobra Pentagon Protection safety system
• cETL safety certification
• Optional remote on/off controller compatibility
• Two-year manufacturer warranty

Intended Use

The CPI2500W is designed for demanding mobile and off-grid applications, including:

• Work trucks and mobile service vehicles
• Recreational vehicles and campers
• Contractor and jobsite equipment
• Emergency backup-power systems
• Boats with properly designed 12-volt battery installations
• Remote cabins and temporary work areas

Compatible loads may include:

• Power tools
• Televisions and entertainment equipment
• Refrigerators and freezers
• Blenders and kitchen appliances
• Laptops and mobile electronics
• Lighting
• Small microwave ovens
• Other equipment approved for modified sine wave power

The combined running load must remain below 2,500 watts. Motors, compressors, pumps and appliances with heating elements may require substantially more power during startup.

Electrical Specifications

• Manufacturer: Cobra Electronics
• Product series: PRO
• Manufacturer part number: CPI2500W
• Nominal DC input: 12 volts
• Rated input reference: 13 volts DC
• Continuous AC output: 2,500 watts
• Peak AC output: 5,000 watts
• AC output voltage: 115 volts
• AC output frequency: 60 Hz
• Continuous AC output current: Approximately 21.7 amps
• Output waveform: Modified sine wave
• Efficiency: Approximately 90%
• AC outlets: Four grounded GFCI receptacles
• USB ports: One USB-A and one USB-C fast-charge port

Built-In Protection

Cobra’s Pentagon Protection system includes protection against:

• Excessive operating temperature
• Reverse-polarity connection
• Excessive input voltage
• Low-voltage alarm
• Low-voltage shutdown

The inverter also incorporates overload, short-circuit and GFCI protection. These safeguards do not replace correctly sized battery cables, overcurrent protection or verification of cable polarity before connection.

AC and USB Connections

The CPI2500W provides:

• Four 115-volt grounded AC outlets
• GFCI protection across the AC receptacles
• One USB-A fast-charge port
• One USB-C fast-charge port
• Up to 15 watts of supported USB charging output

Multiple devices may be connected simultaneously, provided their combined running and startup loads remain within the inverter’s ratings.

Dimensions and Weight

• Length: 11.50 inches / 292.1 mm
• Width: 8.94 inches / 227.1 mm
• Height: 3.74 inches / 95 mm
• Weight: 5.73 lb / 2.60 kg

Modified Sine Wave Notice

The CPI2500W produces modified sine wave power rather than utility-grade pure sine wave power. Cobra states that this model is not suitable for equipment that specifically requires pure sine wave output.

Equipment that may require a pure sine wave inverter includes:

• Medical equipment
• Sensitive audio and communications equipment
• Certain electronically controlled appliances
• Variable-speed motors
• Some battery chargers
• Digital timing equipment
• Appliances whose manufacturer specifies pure sine wave AC

Confirm the connected equipment’s waveform requirements before use.

Battery and Cable Requirements

At its full 2,500-watt output, this inverter can draw approximately 230 amps or more from a 12-volt battery bank after conversion losses are considered. The installation requires:

• A battery bank with adequate capacity and discharge capability
• Very short, correctly sized DC cable runs
• Properly rated battery switches and terminals
• Overcurrent protection installed close to the battery
• Secure, clean and corrosion-free connections
• Adequate ventilation around the inverter

Cobra includes four 48-inch #4 AWG cables, arranged as paired positive and negative conductors for the high-current connection. Follow the current Cobra installation instructions when routing and terminating the cables.

Fitment Notice

The CPI2500W is designed for a nominal 12-volt battery system. Do not connect it to a 24-volt or 48-volt battery bank.

This is a high-current, direct-to-battery inverter. It cannot be operated through a cigarette-lighter or standard 12-volt accessory socket.

The inverter does not include:

• A battery
• A battery charger
• An automatic shore-power transfer switch
• A fuse holder
• Main battery fuses
• Permanent AC distribution equipment
• A remote controller

Cobra lists its remote on/off controller as a compatible optional accessory.

Installation Notes

Install the inverter in a dry, ventilated location protected from:

• Rain, spray and bilge water
• Battery gases
• Fuel vapours
• Excessive heat
• Combustible materials
• Loose equipment that could obstruct the cooling fans

Mount the inverter close enough to the battery bank to avoid excessive cable length and voltage drop. Install properly rated DC overcurrent protection near the battery, even though the required fuse holder and fuses are not supplied.

For marine use, the installation must follow applicable marine electrical standards and should be completed by a qualified technician. The CPI2500W is not a waterproof or ignition-protected inverter and should not be mounted in an engine space, fuel compartment or exposed location unless the installation conditions are specifically approved.

When This Product Needs Replacement

Inspect or replace the inverter if it:

• Repeatedly shuts down below its rated load
• No longer produces stable AC output
• Has damaged or heat-discoloured outlets
• Shows melted or loose DC terminals
• Produces smoke, unusual odour or excessive heat
• Has cooling fans that no longer operate when required
• Shows moisture intrusion or internal corrosion
• Repeatedly reports low voltage with a verified healthy battery bank
• Has damaged GFCI protection or USB ports

Before replacing the inverter, inspect the battery bank, fuses, cable size, terminal tightness, polarity and voltage drop under load.

Included Components

• Cobra PRO 2500W inverter
• Four 48-inch #4 AWG power cables
• One red terminal-protector boot
• One black terminal-protector boot
• Quick-start documentation

The fuse holder, battery fuses and remote controller are not included.

Compatible Accessories

• Cobra remote on/off controller with USB charging
• Cobra high-wattage inverter cable installation kit
• Properly rated battery fuse and fuse holder
• Heavy-duty battery disconnect switch

Alternate Part Numbers

• Cobra manufacturer part number: CPI2500W
• Product name: Cobra PRO 2500W
• Common model reference: PRO2500W
• AutoZone SKU reference: 1445872

Parts Desk Insight

A 2,500-watt inverter places a substantial load on a 12-volt electrical system. Battery-bank capacity, fuse rating, cable size and connection quality are as important as the inverter’s wattage rating. For sensitive electronics or equipment that requires household-quality AC power, select a pure sine wave inverter rather than this modified sine wave model.
