Cole Hersee M639BX Momentary Off Push-Button Switch – On / Momentary Off, SPST
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Cole Hersee M639BX Momentary Off Push-Button Switch – On / Momentary Off, SPST

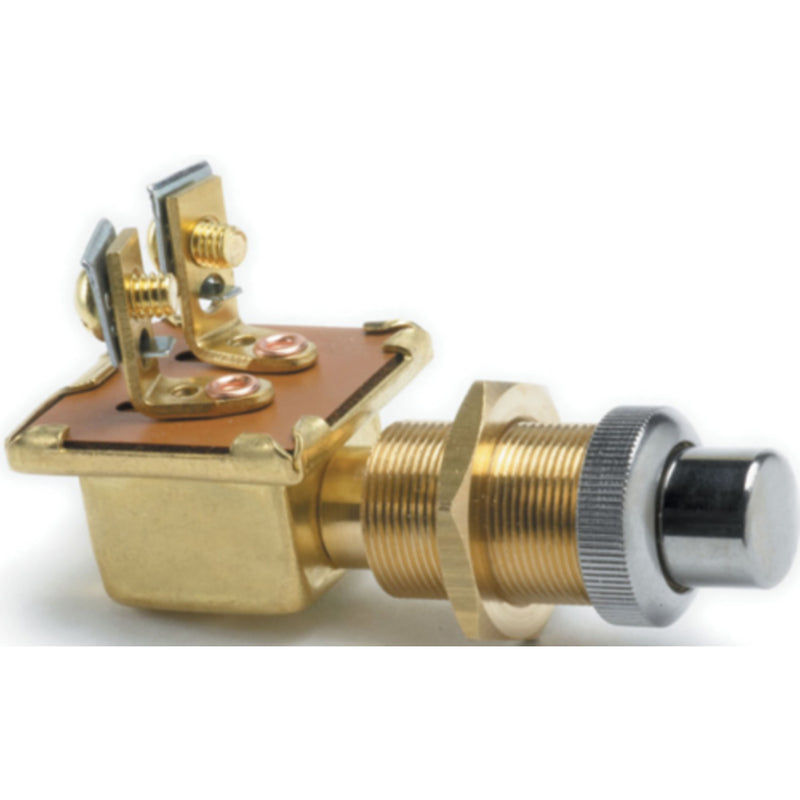

A precision-built momentary push-button switch designed for marine and automotive control panels. The M639BX is normally on — current flows continuously until the button is depressed, which momentarily interrupts the circuit and springs back to the on position when released. This normally-on, momentary-off action makes it ideal for applications where you need to briefly cut power or trigger a signal without latching off permanently.
Key Features
- SPST configuration: Normally On / Momentary Off
- Spring return to On position when button is released
- Gasket-sealed case for moisture and dust protection
- Chrome-plated brass plunger
- Two brass screw terminals for secure wiring
- Mounting stem: 5/8"-32 diameter, 1" long
- Fits panels up to 3/4" thick
- Rated 10A @ 12VDC
Parts Desk Insights
Best use case: The M639BX is the right switch when you need a normally-on circuit that can be momentarily interrupted — common applications include kill switches, alarm test circuits, and interlock controls where the default state is powered and a brief press cuts the signal. The chrome brass plunger and gasket seal make it a solid choice for helm panels and exposed locations. If you need the opposite action (normally off, momentary on), see the Cole Hersee M485BP Momentary On Push-Button Switch. For a heavy-duty push-button rated at 35A, consider the Cole Hersee 90030BP Heavy-Duty Push-Button Switch. For a latching toggle alternative, see the Cole Hersee 558210BP Heavy Duty SPST Toggle Switch.
Specifications
- Switch type: SPST, Normally On / Momentary Off
- Positions: 2 (On / Momentary Off)
- Voltage rating: 10A @ 12VDC
- Plunger material: Chrome-plated brass
- Terminals: 2 brass screw terminals
- Mounting stem: 5/8"-32 diameter, 1" long
- Max panel thickness: 3/4"
- Part number: M639BX
