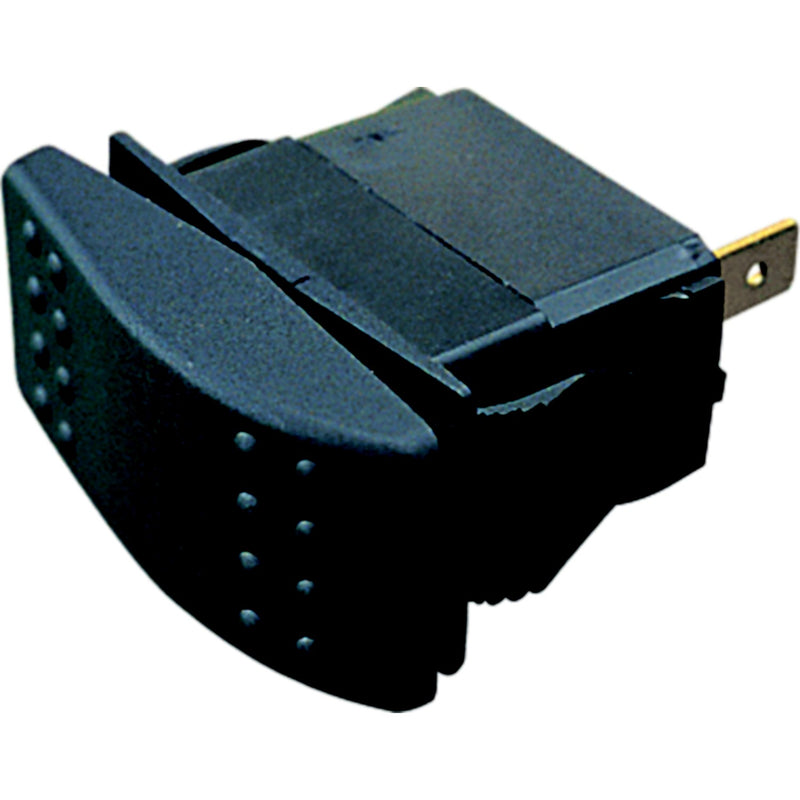

Sea-Dog Contura DPDT Illuminated Rocker Switch – On/Off/On, Red LED, 20A, IP66
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Three-Position Illuminated Rocker Built for Demanding Marine Environments
The Sea-Dog Contura DPDT Illuminated Rocker Switch gives you three-position control — On, Off, and On — in a compact rocker format with a red LED indicator that lights up whenever the circuit is energized. Double Pole, Double Throw (DPDT) configuration means this switch controls two separate circuits simultaneously, making it the right choice for reversing motor circuits, dual-output accessories, and any application where you need to switch two circuits in tandem from a single rocker.
Built from injection-molded nylon and stamped brass with silver tin oxide contacts, this switch is engineered to handle the full range of marine environmental stresses — vibration, shock, thermal cycling, moisture, and salt spray. UL1500 and ISO8846 ignition protection certification makes it safe for installation in fuel vapor–prone areas, and the IP66 front panel rating keeps water jets out of the switch face. The operating temperature range of -40°C to +85°C covers everything from cold-weather storage to tropical sun exposure.
Key Features
- DPDT configuration — Double Pole, Double Throw (controls two circuits simultaneously)
- 3 positions: On – Off – On
- Red LED illuminates when switch is in the On position
- 20A rating at 12V DC
- IP66 rated (front panel) — dust-tight and powerful water jet resistant
- UL1500 / ISO8846 ignition protected — safe for fuel vapor environments
- Injection-molded nylon and stamped brass construction
- Silver tin oxide contacts for reliable, long-life switching
- Operating temperature: -40°C to +85°C
- Vibration, shock, thermoshock, moisture, and salt spray resistant
Compatible Applications
- Reversing motor circuits (trim tabs, actuators, windshield wipers)
- Dual-output accessory switching from a single rocker
- Helm and cockpit panel three-position control
- Marine electrical panels requiring ignition-protected switches
- Fuel vapor–prone areas requiring UL1500/ISO8846 certification
- 12V DC marine and powersport applications requiring DPDT switching
Parts Desk Insights
Best use case: The Contura DPDT On/Off/On rocker is the go-to switch for reversing motor circuits — trim tab up/down, wiper forward/park, actuator extend/retract — where you need to reverse polarity to the motor from a single switch point. The DPDT configuration handles both the positive and negative leads of the motor simultaneously, eliminating the need for two separate switches or a relay. The ignition protection certification is a meaningful spec for engine compartment and fuel tank area installations where a non-certified switch would be a compliance and safety issue.
Related Sea-Dog switches: For a complete panel solution, the Sea-Dog Splash Gard 6-Gang Rocker Switch Panel is a natural companion for full helm builds. For illuminated push-button On/Off switching, the Sea-Dog 4030631 Stainless LED Push-Button On/Off Switch pairs well for mixed-format panels.
