Mercury Zeus Pod Drive System 5-P4DY54LH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

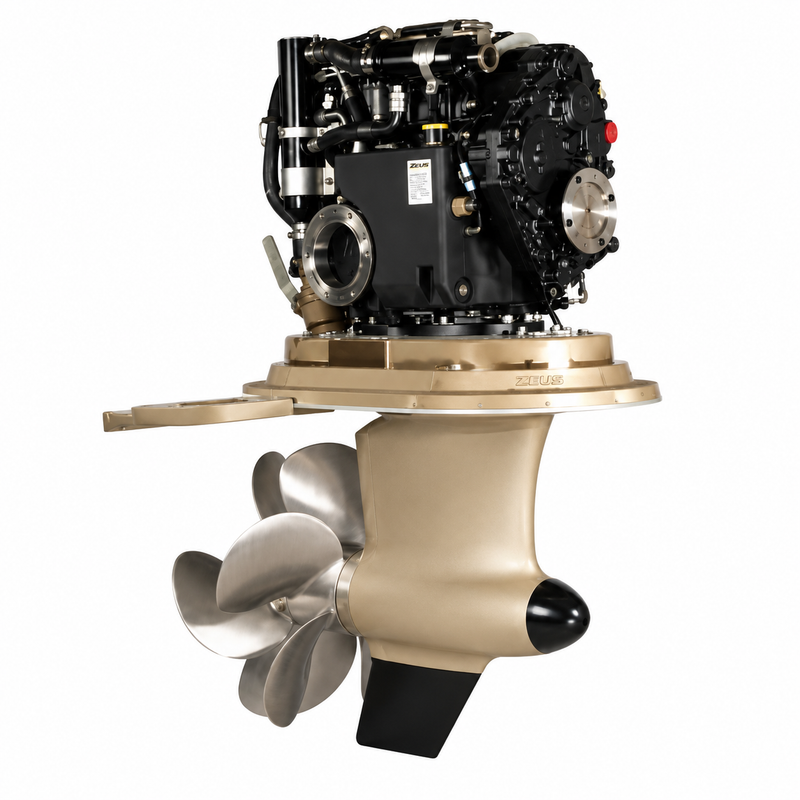

Mercury Zeus Pod Drive System
Configuration Code: 5-P4DY54LH
Brand: Mercury | Type: Integrated Pod Drive Propulsion System
Mercury Zeus is an integrated pod-drive propulsion system for larger diesel-powered vessels. It combines steerable underwater gearcases, contra-rotating propellers, electronic controls, and joystick-capable maneuvering into a single propulsion package. The Zeus family includes multiple pod sizes matched to engine output and vessel performance requirements.
Important: The identifier 5-P4DY54LH is a configuration/assembly code, not a conventional service part number. Before ordering, this code must be matched to the pod’s original build record, serial plate, gear ratio, rotation, and propeller configuration. Do not substitute based on the generic “Zeus Pod Drive” description alone.
Compatible Applications
- Mercury Zeus 3000 pod-drive family — diesel propulsion installations
- Mercury Zeus 3500 and larger configurations — verify overall gear ratio (e.g. 2.059:1 or 2.244:1) and propeller series against build record
- Vessels with matched contra-rotating propeller systems — H-Series, M-Series, or Z-Series depending on engine HP, rated RPM, and target vessel speed
Fitment must be verified by complete pod serial number, gear ratio, rotation, pod size, and propeller configuration. Engine horsepower and model year alone are not sufficient to confirm compatibility.
System Overview
Zeus pod drives use steerable underwater gearcases with contra-rotating propeller sets — a left-hand front propeller and a right-hand rear propeller on applicable configurations. Propeller families (H-Series, M-Series, Z-Series) are selected based on engine output and target performance. Zeus systems also integrate with Mercury’s joystick piloting and electronic vessel-control systems.
Individual Components Also Serviceable
Individual Zeus drivetrain components are also separately serviceable, including seals, shafts, bearings, steering components, propellers, and propeller hardware. If only a specific component needs replacement, identify the individual part number from the Zeus parts diagram for your pod serial number rather than replacing the complete assembly.
When Replacement Is Needed
Complete pod replacement may be required after significant gearcase or housing damage, major internal drivetrain failure, severe impact damage, excessive corrosion, or when rebuilding the existing pod is no longer practical or cost-effective.
Installation Notes
Zeus pod-drive replacement is a major propulsion-system service procedure. Verify the complete pod specification and associated engine installation before removal. Proper installation requires correct mechanical alignment, steering and electronic-system setup, lubricant service, propeller installation, and full commissioning per the applicable Mercury Zeus service documentation.
Parts Desk Insights
With 5-P4DY54LH, the complete configuration code is more reliable than the generic product description. Before quoting or ordering a replacement Zeus pod assembly, match the configuration code to the serial plate on the existing pod and the vessel’s original build record. Pod size, gear ratio, rotation, and propeller system must all agree. A common issue is customers referencing only the Zeus family name without the specific pod model or ratio — this is not sufficient to confirm the correct replacement. Always request the pod serial number.
