Eight-Strand Anchor Rode – 5/8" x 150 ft Line with 5/16" x 50 ft Chain
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Maximum Chain Weight in the 5/8" Lineup
When holding power is the priority, this rode delivers. Pairing 150 feet of 5/8" 8-plait nylon line with a full 50 feet of 5/16" Grade 43 galvanized chain, this is the heaviest-configured 5/8" anchor rode in the lineup — built for larger vessels anchoring in demanding conditions where catenary weight and chain abrasion resistance matter most.

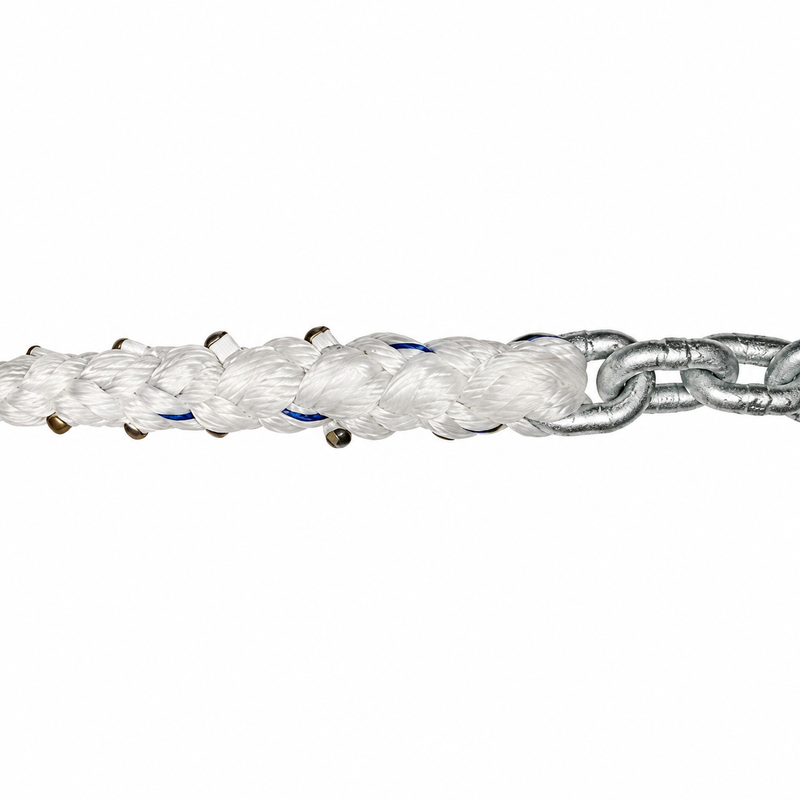

The 5/8" x 150 ft 8-plait twill-twisted nylon line is hand-spliced to a 5/16" x 50 ft Grade 43 high-test ISO-calibrated hot-dip galvanized windlass chain. A Type IV Grade A hot-dip galvanized anchor shackle is pre-installed at the chain end, and reinforced PVC depth markers are pre-installed on the line for at-a-glance scope management.
What’s Included
- 5/8" x 150 ft 8-plait twill-twisted nylon rope — hand-spliced, heat-sealed bitter end
- 5/16" x 50 ft Grade 43 high-test ISO-calibrated hot-dip galvanized windlass chain
- Type IV Grade A hot-dip galvanized anchor shackle (pre-installed)
- Reinforced PVC depth markers (pre-installed)
Key Features
- 5/8" 8-plait construction — high load capacity, feeds smoothly through larger windlasses, excellent shock absorption
- 50 ft of 5/16" chain — maximum catenary weight for superior anchor set and holding in wind and current
- 5/16" chain provides greater abrasion resistance on rocky or rough bottoms vs 1/4" chain
- Grade 43 high-test chain — ISO calibrated for windlass compatibility
- Hot-dip galvanized chain and shackle for long-term corrosion resistance
- Hand-spliced rope-to-chain connection for maximum strength at the join
- Pre-installed depth markers for at-a-glance scope management
Parts Desk Insights
Best use case: This is the go-to configuration for larger cruising vessels, heavy trawlers, and serious offshore boats in the 40–60 ft range where both line diameter and chain weight need to match the vessel’s displacement and windlass capacity. The 50 ft of 5/16" chain provides substantially more catenary than shorter chain sections — keeping the anchor lying flat and holding firmly even in strong wind or tidal current. The 5/16" chain also handles rocky and abrasive bottoms better than 1/4" chain, making this a strong choice for cruisers who anchor in varied conditions. If you want the same chain weight with more scope, the 5/8" x 250 ft rode with 50 ft chain extends your reach significantly. If weight is a concern and your anchorages are more sheltered, the 5/8" x 150 ft rode with 25 ft chain saves roughly 10 kg. For a comparison in the 1/2" diameter, see the 1/2" x 250 ft rode with 50 ft chain.
SKU: 491-CAR8P58150H5150 | Barcode: 628309000000
