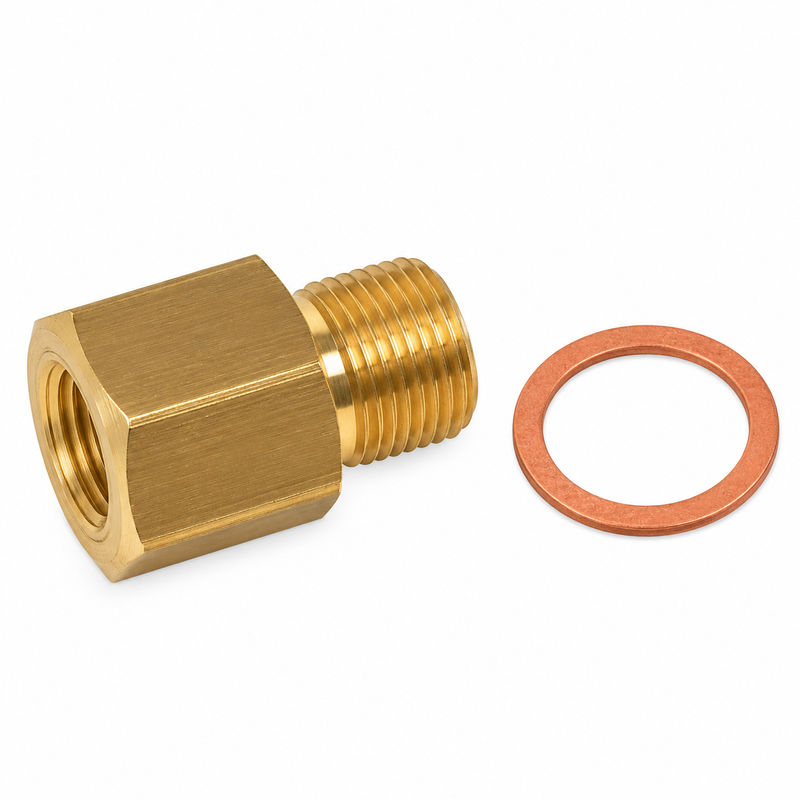

Faria Beede Sender Bushing Kit 90602 – 1/8 x 1/2 & 1/8 x 5/8 NPTF

Faria Beede Sender Bushing Kit 90602 – 1/8 x 1/2 & 1/8 x 5/8 NPTF

What This Kit Does

Faria Beede 90602 is a two-piece adapter bushing kit that allows a standard 1/8" NPTF marine gauge sender to be installed into a larger engine or system port. It bridges the gap when the sender thread is 1/8" NPTF and the engine port is either 1/2" or 5/8" NPTF — a common mismatch on older and larger marine engines.

This is a sender installation accessory, not a sender unit. You will need a compatible Faria Beede sending unit separately if you are replacing the sender at the same time.

Kit Contents

• 1/8" x 1/2" NPTF bushing — adapts 1/8" NPTF sender into a 1/2" NPTF engine port
• 1/8" x 5/8" NPTF bushing — adapts 1/8" NPTF sender into a 5/8" NPTF engine port

Compatible Applications

• Faria Beede water-temperature sending units with 1/8" NPTF threads
• Faria Beede oil-pressure sending units with 1/8" NPTF threads
• Other marine gauge senders using 1/8" NPTF connections
• Engine ports threaded 1/2" NPTF or 5/8" NPTF

Fitment Notice

Confirm the following before ordering:

• Your sender uses a 1/8" NPTF thread (not 1/4" or 3/8")
• Your engine port is 1/2" NPTF or 5/8" NPTF
• Sender and port use compatible thread standards (NPTF, not NPT or BSP)

If your engine port is 1/4" or 3/8" NPTF, you need Faria Beede 90601 instead — that kit covers the smaller port sizes.

When You Need This Kit

• Replacing a temperature or pressure sender with a standard 1/8" NPTF Faria Beede unit
• The engine port is larger than the sender thread
• A missing or damaged sender adapter bushing needs replacement
• Adapting a new gauge sender to a 1/2" or 5/8" threaded engine or manifold port

Installation Notes

Select the correct bushing from the kit before installation and verify the sender seats fully without bottoming out in the bushing or port. Use thread sealant only if the sender manufacturer recommends it — some marine senders complete their electrical ground circuit through the threaded connection, and excessive insulating sealant can interfere with sender signal and accuracy.

Service Interval

Replace when the bushing shows thread damage, corrosion, or leakage. Inspect any time the sending unit is removed for service.

Technical FAQ

What is the difference between 90602 and 90601?
The 90602 kit adapts 1/8" NPTF senders to 1/2" and 5/8" NPTF ports. The 90601 kit adapts 1/8" NPTF senders to 1/4" and 3/8" NPTF ports. Choose based on the thread size of your engine port, not the sender.

Can I use thread tape instead of thread sealant?
Check the sender manufacturer’s recommendation first. If the sender uses its metal body as a ground path, PTFE tape or insulating sealant on the threads can break the ground circuit and cause erratic or no gauge reading.

Is this kit compatible with NPT as well as NPTF?
NPTF (Dryseal) and NPT threads share the same pitch and taper and will engage. For pressure applications, Faria Beede specifies NPTF. Consult the sender installation instructions for the specific port type.

Does this kit include a sender?
No. The 90602 contains adapter bushings only. A compatible Faria Beede sending unit is sold separately.

Parts Desk Insights

The 90602 comes up most often when customers are replacing temperature or oil pressure senders on older marine engines with larger port threads — it is the piece that makes a standard 1/8" NPTF Faria sender fit where the original port was machined larger. The most common issue is ordering the wrong kit: if the engine port is 1/4" or 3/8" NPTF, this kit will not fit and the customer needs the 90601 instead. A quick port thread check before ordering saves a return trip.
