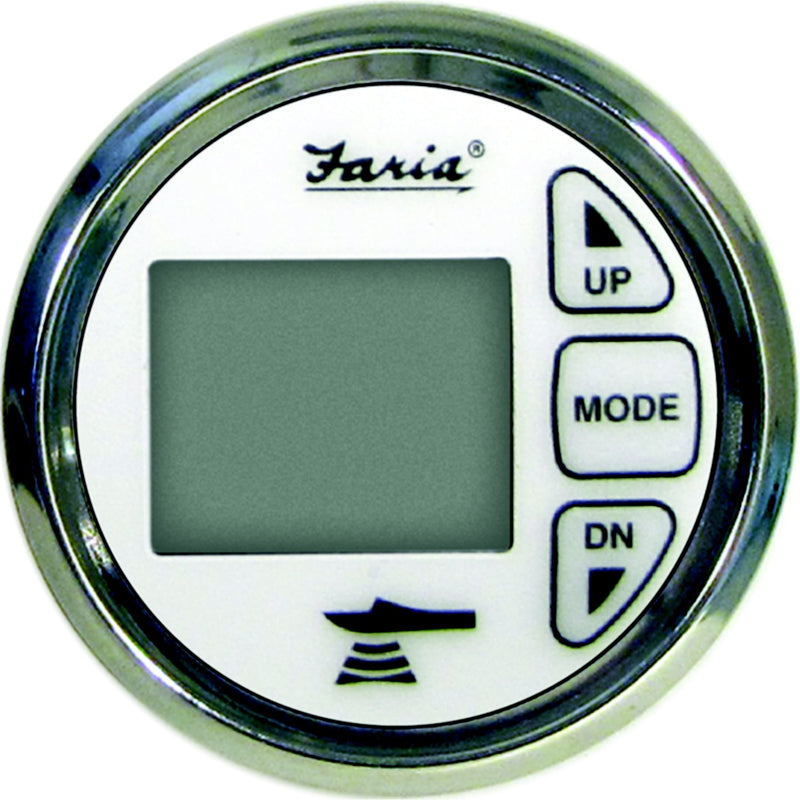

Faria Chesapeake SS In-Dash Dual Temperature Digital Depth Sounder – Transom Transducer & Temp Sender Included (FAR 13852)

Depth and Dual Temperature in One Clean 2" Gauge

The Faria Chesapeake SS FAR 13852 is a full-featured in-dash depth sounder that goes beyond basic depth readings by adding dual temperature monitoring — displaying both water and air temperature simultaneously alongside depth. It mounts in a standard 2-1/16" gauge hole and ships complete with a transom-mount transducer and temperature sender, so everything needed for installation is included.

The Chesapeake SS series is Faria's stainless steel and white face aesthetic — a clean, classic look that suits most powerboat, cruiser, and center console dash panels.

Key Features

• Dual Temperature Display — Reads both water temperature (via the included temp sender) and air temperature across a range of 32°F to 200°F; both readings available on the 2-line backlit display
• Depth to 199 ft / 61 m / 32 Fathoms — Selectable readout in feet, meters, or fathoms to suit your preference and region
• Deep and Shallow Water Alarms — Programmable alarms for both ends of the depth range; alerts you before reaching dangerously shallow water or when depth exceeds a set threshold
• Programmable Keel Offset — Calibrate the unit to display true depth below the keel rather than below the transducer for more accurate navigation reference
• 2-Line Backlit Display — Easy to read in all lighting conditions including direct sunlight and low-light night operation
• Standard 2-1/16" Gauge Hole — Drops into any standard instrument panel cutout; no custom fabrication required
• Chesapeake SS Styling — Stainless steel bezel with white face; matches the full Faria Chesapeake SS gauge family for a cohesive dash appearance
• Complete Kit — Includes transom-mount transducer and temperature sender; ready to wire and install

Best Use Case

The FAR 13852 is the right choice for powerboat, cruiser, and center console owners who want depth and temperature data in a single, clean 2" gauge — without adding a separate fishfinder or chartplotter. The dual temperature capability (water + air) is particularly useful for anglers tracking thermoclines and for general boating situational awareness in varying weather conditions.

It's an especially strong fit for boaters building out or refreshing a Faria Chesapeake SS gauge panel, where matching aesthetics across all instruments matters. Pair it with other gauges from the Faria Chesapeake SS 6-Gauge Inboard Set or Faria Chesapeake SS 4-Gauge Outboard Set for a complete matched panel.

Need depth only without temperature? See the Faria Chesapeake White S/S Depth Sounder – Transom Mount (FAR 13850) or the In-Hull version (FAR 13851). For the Euro Black style, see the Faria Euro Black Depth Sounder – Transom Mount (FAR 12850).

Parts Desk Insights

Best for: Boaters completing or refreshing a Chesapeake SS instrument panel who want depth and dual temperature in one gauge. The 199 ft depth range is well-suited for coastal, lake, and river navigation — it's not a deep-sea instrument, but it covers the vast majority of recreational powerboat use cases. If you need deeper range, consider a dedicated fishfinder or chartplotter with sonar.

Temperature sender placement: The included temperature sender reads water temperature and should be mounted on the transom below the waterline in a location with good water flow. Avoid mounting near exhaust outlets or in areas of turbulence, which can produce inaccurate readings. Air temperature is read by a sensor in the head unit itself — no additional sender required for air temp.

Keel offset setup: Program the keel offset immediately after installation by measuring the distance from the transducer face to the bottom of the keel. This ensures depth readings reflect true clearance below the boat rather than below the transducer — an important safety calibration step.

Panel matching: The FAR 13852 uses the same Chesapeake SS bezel and face as the rest of the Faria Chesapeake SS 2" gauge lineup, making it straightforward to integrate into an existing panel without mismatched styles.
