Fusion Apollo 8-Channel Marine Amplifier 010-02284-85
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

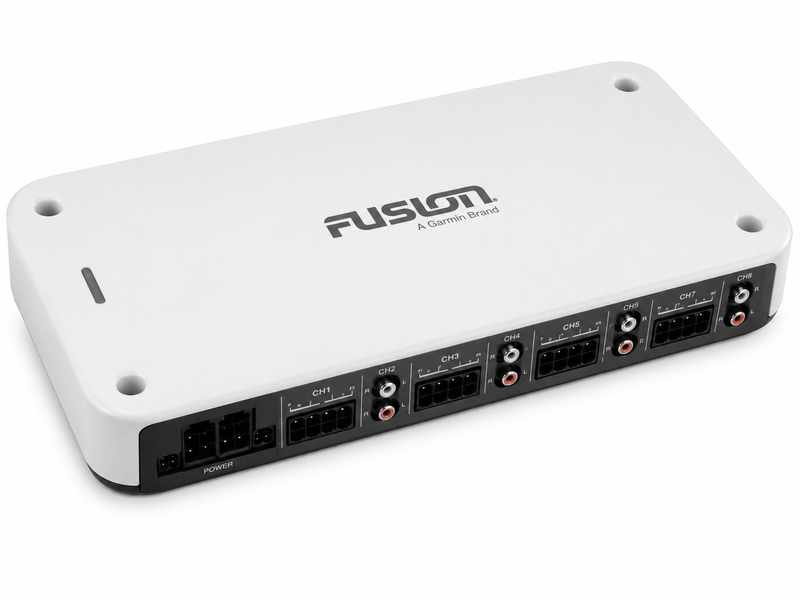

Fusion Apollo 8-Channel Marine Amplifier
Part Number: 010-02284-85 | UPC: 753759329631 | SKU: 830-0100228485
The Fusion Apollo 8-Channel Marine Amplifier is a high-output Class D amplifier built exclusively for Fusion DSP-enabled marine stereo systems. Eight independent channels give you the flexibility to power large multi-zone speaker layouts, demanding speaker pairs, or mixed speaker and subwoofer configurations—all from a single compact amplifier.
Key Specifications
- Amplifier class: Class D
- 150 W RMS × 8 @ 4 ohms
- 290 W RMS × 8 @ 2 ohms
- 580 W RMS × 4 bridged @ 4 ohms
- Frequency response: 20 Hz–20 kHz
- 2-ohm stable
- Maximum current draw: 104 A (125 A electronic fuse)
- Water-resistance rating: IPX2
- Ignition protected: SAE J1171
- Warranty: 3 years
Features
- Easy Tune automatic audio setup via the Garmin Audio app
- LED diagnostic indicators for quick fault identification
- Electronic protection: reverse voltage, under/over voltage, overheating, and output short circuit
- Conformal-coated circuit board for salt fog, UV, vibration, and temperature resistance
- 12 V compatible
Dimensions & Weight
- Width: 14.13 in.
- Height: 7.06 in.
- Depth: 1.75 in.
- Weight: approximately 6.94 lb (3.15 kg)
Compatible Applications
- Fusion Apollo series DSP-enabled head units (MS-RA770, MS-RA670, WB670, MS-RA210)
- Any Fusion DSP-enabled marine stereo system requiring expanded amplification
- Multi-zone marine audio systems requiring up to 8 independent speaker channels
- Mixed speaker and subwoofer installations (e.g., 4 speaker pairs + 2 subwoofer channels bridged)
Verify stereo model compatibility, speaker impedance, available electrical capacity, and mounting location before selecting this amplifier. This unit requires a Fusion DSP-enabled source—it is not compatible with non-DSP Fusion or third-party head units.
Kit Contents
- Apollo 8-channel amplifier
- Mounting bracket
- Power connector
- 4× speaker connectors with high-power mode adapters
- Mounting hardware and screw covers
- Fuse holder
- Mounting template
- Installation instructions and product safety information
Reference & Alternate Part Numbers
- Fusion part number: 010-02284-85
- Alternate/supplier reference: 0100228485
- Model family: Apollo Marine Amplifier
- UPC: 753759329631
Related Products
- Fusion MS-RA60 Marine Stereo — compatible Fusion marine head unit
- Browse our GPS & Navigation Electronics collection for additional compatible Fusion components and marine audio accessories
Parts Desk Insights
Best Use Case: This amplifier is best suited for boaters building out a serious multi-zone audio system—think cockpit, bow, cabin, and helm all powered from one unit. The high-power bridged mode makes it equally capable of driving subwoofers, so one amplifier can handle a complete system. Easy Tune removes the guesswork from audio calibration once installation is complete.
Common Issues: The most frequent customer concern is impedance mismatch—verify speaker ohm ratings carefully, especially when running 2-ohm stable configurations with multiple speakers per channel. Easy Tune requires the Garmin Audio app and a compatible Fusion DSP head unit; customers without a DSP-enabled Fusion stereo will not be able to use this amplifier's full feature set. Ensure adequate 12 V power wiring and fusing to support the 104 A maximum draw.
