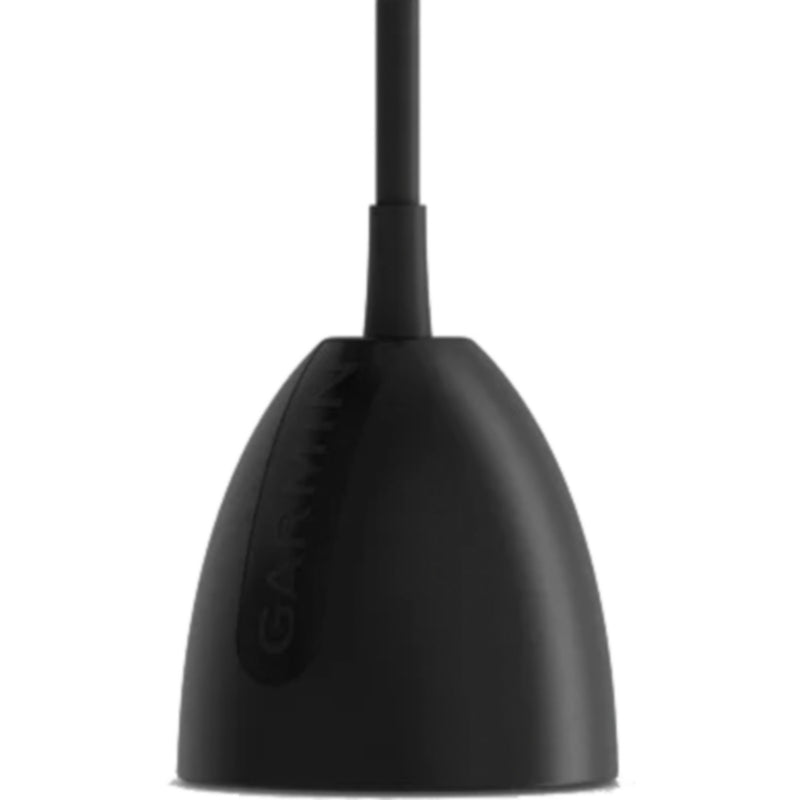

GT10HN-IF — Precision CHIRP Sonar Built for Ice Fishing
The Garmin GT10HN-IF is a high-narrow CHIRP transducer engineered specifically for ice fishing. Where wide-beam transducers scatter sonar energy across a broad cone, the GT10HN-IF focuses its beam into a tight 7–16° angle — delivering exceptional target separation, precise jig tracking, and crystal-clear fish definition directly below the hole. If you’ve ever lost your jig in the clutter of a wide-beam display, this transducer solves that problem.
Built for winter conditions from the ground up, it features a silicone-coated cable that stays flexible in freezing temperatures, and a shape optimized for dropping through an ice hole and holding position in the water column.
Key Features
- High-Narrow CHIRP Sonar — CHIRP technology transmits a continuous sweep of frequencies rather than a single pulse, producing cleaner returns, better target separation, and more detail at depth than traditional sonar. The high-frequency, narrow-beam combination is ideal for seeing your jig and nearby fish simultaneously with precision.
- 7–16° Narrow Beam Angle — Tight cone angle concentrates sonar energy directly below the transducer, minimizing interference from the sides of the hole and maximizing detail in the water column beneath you.
- 500W Power Rating — Sufficient power for reliable depth penetration through the water column in typical ice fishing depths.
- 8-Pin Connector — Compatible with Garmin fish finders using an 8-pin transducer port. Includes an 8-pin to 4-pin adapter cable for use with 4-pin compatible units.
- Silicone-Coated Cable — Remains flexible and manageable in sub-zero temperatures where standard cables stiffen and become difficult to handle.
- Ice-Optimized Design — Transducer shape and beam geometry are specifically tuned for vertical ice fishing use, not adapted from a boat-mount design.
What’s Included
- GT10HN-IF ice fishing transducer
- 8-pin to 4-pin transducer adapter cable
- Foam float
- Grommet
Compatibility
Compatible with Garmin fish finders featuring an 8-pin or 4-pin transducer port (via included adapter). Designed for use with Garmin STRIKER and ECHOMAP series units that support CHIRP sonar. Verify your display unit’s transducer compatibility before purchasing.
Related Products
- Garmin STRIKER Vivid 4cv Fish Finder/GPS with GT20-TM Transducer — Compact Garmin fish finder compatible with the GT10HN-IF for ice fishing use.
- Garmin STRIKER Vivid 5cv Fish Finder/GPS with GT20-TM Transducer — 5" display option compatible with this transducer.
- Garmin STRIKER Vivid 7cv Fish Finder/GPS with GT20-TM Transducer — Larger 7" display for anglers who want more screen on the ice.
- Garmin STRIKER Cast Castable Sonar — Wireless portable sonar option for open-water and ice fishing.
- HawkEye FishTrax 1 Portable Fish Finder — Entry-level portable fish finder alternative for ice fishing use.
Parts Desk Insights
Best Use Case: The GT10HN-IF is the right recommendation for ice anglers who are already running a compatible Garmin display and want to upgrade from a wide-beam transducer to a precision narrow-beam CHIRP unit. It’s particularly valuable for anglers targeting suspended fish in clear water, or anyone who needs to track a small jig at depth with precision — the narrow beam eliminates the clutter that makes jig tracking difficult on wider-cone transducers. Best suited for walleye, perch, and crappie ice fishing where fish are often suspended and jig presentation matters.
What to Know Before You Buy: This transducer is designed for ice fishing only — it is not intended for transom or trolling motor mounting on open-water boats. The 8-pin to 4-pin adapter is included, but always confirm the customer’s display unit’s transducer port type and CHIRP compatibility before completing the sale. The narrow beam angle (7–16°) means less coverage area than a wide-beam transducer — customers who want broader coverage under the ice should consider a wider-beam option instead. Not compatible with Garmin LiveScope or Panoptix sonar systems.
SKU: 322-0101267700 | Barcode: 753759131972
