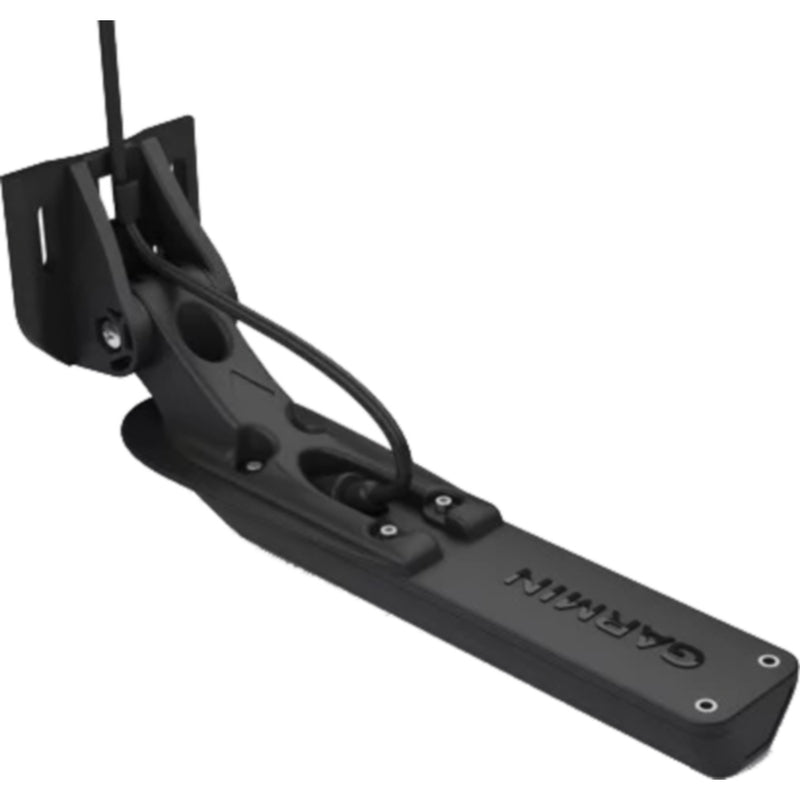

GT36UHD-TM — Ultra HD Scanning Sonar Below and Beside Your Boat
The Garmin GT36UHD-TM is a high-performance scanning sonar transducer that delivers Ultra High-Definition ClearVü™ and SideVü™ imaging in a single transom or trolling motor-mount unit. With multi-frequency operation at 455, 800, and 1,000 kHz, it adapts to different depth and clarity conditions while consistently producing crystal-clear images of fish, structure, and bottom composition — both directly below and to the sides of your boat. Includes both transom and trolling motor mounting hardware so it works with your existing setup right out of the box.
Key Features
- Ultra HD ClearVü™ Scanning Sonar — Produces brilliant, photo-like images of structure and fish directly below your boat. The downward-facing element concentrates sonar energy for sharper returns and greater depth penetration than standard high-frequency scanning sonars.
- Ultra HD SideVü™ Scanning Sonar — Scans to both sides of your boat with stunningly clear detail. Operating at 1,000 kHz, the Ultra HD version delivers 20% greater range than previous SideVü generations — so you can cover more water and spot fish and structure farther from the boat before repositioning.
- Multi-Frequency Operation — Operates at 455 kHz, 800 kHz, and 1,000 kHz, giving you the flexibility to optimize sonar performance across different depths and water conditions. Lower frequencies penetrate deeper; higher frequencies deliver finer detail in shallower water.
- Vivid Scanning Sonar Color Palettes — High-contrast color palettes make it significantly easier to distinguish fish from structure, identify bottom hardness, and read the water column at a glance — even in challenging light conditions.
- Dual Mounting Hardware Included — Ships with both transom mount and trolling motor mount hardware. Install it where it works best for your boat without purchasing additional mounting kits.
GT36UHD-TM vs. GT56UHD-TM — Which Do You Need?
Both transducers deliver Ultra HD ClearVü and SideVü scanning sonar. The key difference: the GT56UHD-TM also includes High Wide CHIRP traditional sonar for deep-water target separation and fish arch definition to 800’. If you want scanning sonar only, the GT36UHD-TM is the right choice. If you also want traditional CHIRP sonar capability in the same transducer, step up to the GT56UHD-TM.
Compatibility
Compatible with Garmin chartplotters and fish finders that support Ultra HD scanning sonar, including the GPSMAP 8600 series and ECHOMAP Ultra series. Verify your display unit’s transducer compatibility before purchasing.
Related Products
- Garmin GT56UHD-TM Ultra HD ClearVü, SideVü & CHIRP Transducer — Step up to add High Wide CHIRP traditional sonar to your scanning sonar setup.
- Garmin GPSMAP 8610xsv Chartplotter & Sonar MFD — 10" — Compatible 10" touchscreen MFD for use with this transducer.
- Garmin GPSMAP 8612xsv Chartplotter & Sonar MFD — 12" — 12" display option for larger helm installations.
- Garmin GPSMAP 8616xsv Chartplotter & Sonar MFD — 16" — Flagship 16" Garmin MFD.
- Garmin GPSMAP 8412xsv 12" Chartplotter with CHIRP Sonar — Additional GPSMAP 8400 series option.
- Garmin Transducer Spray Shield — Reduces water spray from your transom-mount transducer at planing speeds.
Parts Desk Insights
Best Use Case: The GT36UHD-TM is the right recommendation for anglers who want Ultra HD scanning sonar — ClearVü and SideVü — and don’t need traditional CHIRP sonar in the same transducer (either because their display already has a built-in CHIRP source, or because they fish primarily in shallower water where scanning sonar is the priority). It’s a strong fit for bass and walleye anglers on lakes and reservoirs who rely heavily on SideVü to locate structure and cover water efficiently. The multi-frequency capability (455/800/1,000 kHz) gives it more depth flexibility than single-frequency scanning transducers.
What to Know Before You Buy: This transducer provides ClearVü and SideVü scanning sonar only — it does not include traditional CHIRP sonar. Customers who want CHIRP fish arches and deep-water target separation in the same transducer should be directed to the GT56UHD-TM instead. Ultra HD scanning sonar requires a compatible display — confirm the customer’s unit is ECHOMAP Ultra or GPSMAP 8x00/9x00 series. Both transom and trolling motor mounting hardware are included. Does not include Panoptix LiveScope or LiveVü capability.
SKU: 322-0101307200 | Barcode: 753759307200
