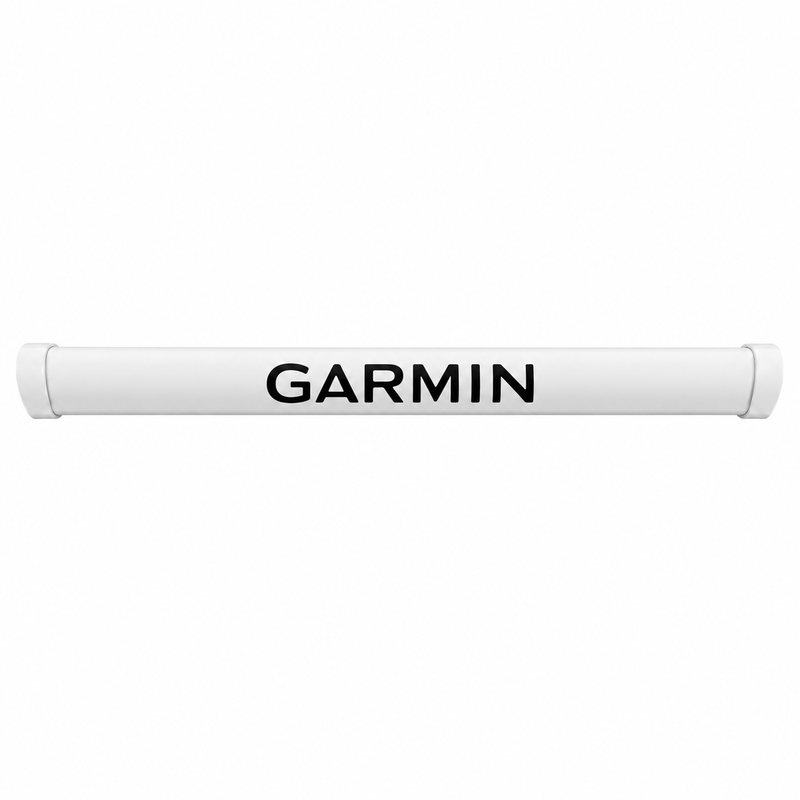

Garmin GMR CHIRP 2104 — 4-Foot Open-Array Radar Antenna
The GMR CHIRP 2104 is a 4-foot open-array antenna for Garmin’s solid-state CHIRP radar system, bringing the performance advantages of CHIRP technology to mid-size vessels where a 6-foot array isn’t practical. Solid-state CHIRP radar transmits a continuous, frequency-modulated signal rather than high-power pulses — delivering superior target separation at close range, instant-on operation with no warm-up time, and a longer service life with no magnetron tube to replace.
The 4-foot array provides strong target resolution and range performance in a more compact, lower-profile package with reduced wind load — making it the right fit for sportfishers, mid-size cruisers, and coastal boats where a 6-foot array would be oversized or create too much load on the radar arch. It integrates with compatible Garmin GPSMAP chartplotters via the Garmin Marine Network.
Note: This is the antenna (top assembly) only. The GMR CHIRP 2104 radar pedestal is required and sold separately.
Key Specifications
- Antenna Length: 4 feet
- Type: Open-array radar antenna
- Radar Technology: Solid-state CHIRP (no magnetron)
- Radar System: GMR CHIRP 2104
- Key Advantages: Instant-on, low power draw, superior close-range target discrimination
- Compatibility: Garmin GPSMAP chartplotters (Garmin Marine Network)
- Pedestal Required: Yes — GMR CHIRP 2104 pedestal (sold separately)
- Part Number: 010-01365-00
Parts Desk Insights
Best Use Case: The GMR CHIRP 2104 is the right choice for mid-size vessels that want solid-state CHIRP radar performance without the footprint of the 6-foot GMR CHIRP 2106. The 4-foot array still delivers significantly better close-range target discrimination than a dome radar or the magnetron-based GMR xHD2 — particularly useful for tracking small targets, navigating in crowded anchorages, and harbour approaches in low visibility. If you’re deciding between the 4-foot and 6-foot CHIRP arrays, the 2104 is the practical choice for vessels where arch space or wind load is a constraint; the 2106 is the performance choice when maximum beam sharpness and range are the priority. Confirm your Garmin chartplotter supports the Garmin Marine Network and is compatible with the GMR CHIRP 2104 before ordering.
Installation Note: Ensure your radar arch or mast mount is rated for the antenna’s weight and wind load. Professional installation is recommended for optimal alignment and cable routing.
Estimated Packaging: Long carton approximately 54" × 10" × 8" (137 × 25 × 20 cm), approx. 6 kg shipped. Oversized shipping rates may apply.
