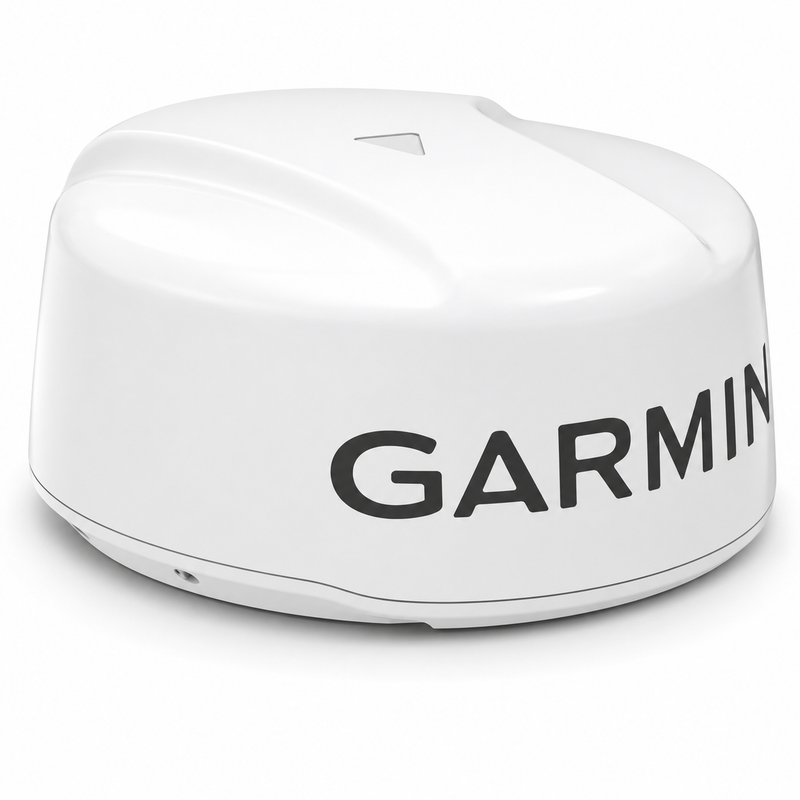

Garmin GMR Fantom 18x Solid-State Doppler Radar Dome — White
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Garmin GMR Fantom 18x Solid-State Doppler Radar Dome
The GMR Fantom 18x is Garmin’s compact 18-inch solid-state Doppler radar dome, delivering powerful target detection and situational awareness in a space-efficient package. With MotionScope Doppler technology, it distinguishes moving targets from stationary clutter — highlighting vessels, birds, and weather in real time on a compatible Garmin chartplotter. Solid-state technology means instant-on operation, lower power consumption, and no magnetron to replace.
Key Features
- Solid-State Doppler Technology — No magnetron; instant-on operation, lower power draw, and longer service life compared to traditional magnetron radar
- MotionScope Doppler — Uses the Doppler effect to detect and highlight moving targets — other vessels, birds, and precipitation — in a distinct colour overlay on the radar display
- 18-Inch Radome — Compact dome form factor suitable for vessels where a larger open-array antenna is impractical; ideal for powerboats and sailboats with limited mast or arch space
- 40W Equivalent Transmit Power — High-performance solid-state output for reliable target detection at range
- Up to 48 Nautical Mile Range — Extended range capability for offshore and coastal passage-making
- Garmin Marine Network Compatible — Connects directly to compatible Garmin GPSMAP and Axiom chartplotters via Garmin Marine Network cable; no additional interface required
- NMEA 2000 Compatible — Integrates with NMEA 2000 network for system-wide data sharing
- Dynamic Auto Gain — Automatically adjusts gain for optimal target presentation in changing sea and weather conditions
- White Radome Housing — Standard white finish for clean integration with most vessel superstructures
Parts Desk Insights
Best Use Case: The GMR Fantom 18x is the ideal radar for mid-size to larger powerboats and sailboats (typically 28 ft+) running a Garmin helm system where a compact dome is preferred over an open-array antenna. The solid-state Doppler and MotionScope technology make it particularly well-suited for vessels operating in busy shipping lanes, areas with heavy bird activity, or where weather radar overlay is a priority. Pairs directly with Garmin GPSMAP and Axiom chartplotters via Garmin Marine Network for seamless radar overlay on the chart display. Step up to an open-array antenna if maximum range and bearing resolution are the priority; the 18x dome is the right choice when installation space is the constraint.
Installation Notes: Requires a Garmin Marine Network cable connection to a compatible Garmin chartplotter (cable sold separately). Requires 12V DC power. Mount on a radar arch, mast, or hardtop with a clear 360° view. Minimum safe distance from crew areas must be observed during operation — refer to Garmin installation manual for exclusion zone specifications. Pedestal mount hardware included.
Compatibility: Compatible with Garmin GPSMAP and Axiom series chartplotters with Garmin Marine Network support. Confirm chartplotter compatibility on the Garmin website before ordering. Garmin Marine Network cable sold separately.
