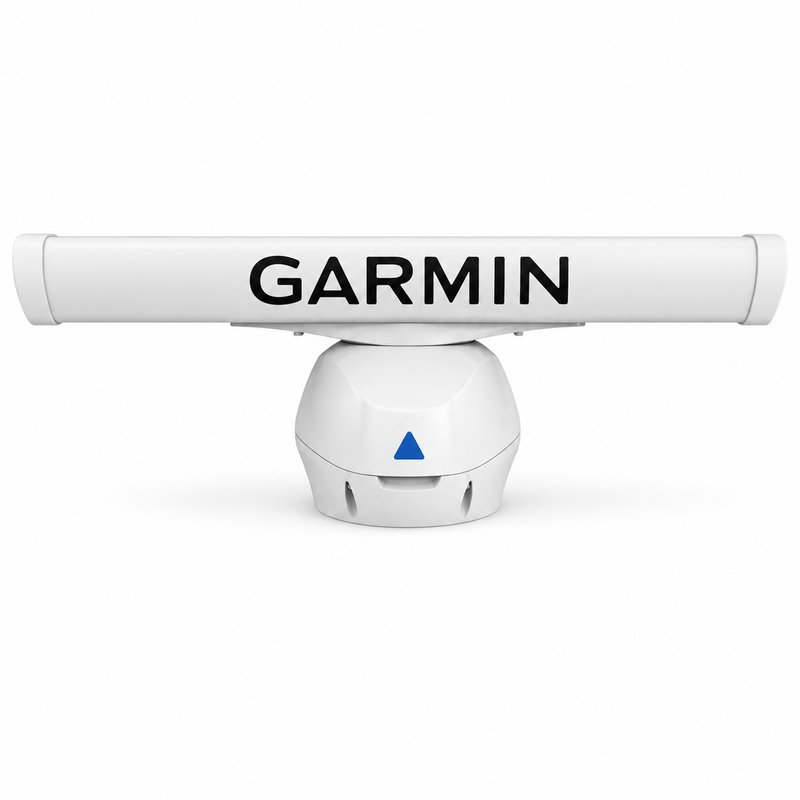

Garmin GMR Fantom 54 — 4-Foot Open-Array Radar System
The GMR Fantom 54 is a complete solid-state CHIRP radar system that brings Garmin’s premium Fantom radar technology to mid-size vessels where a 5-foot or 6-foot array isn’t practical. The kit includes both the 4-foot open-array antenna and the radar pedestal — everything needed for a full radar installation, ready to connect to a compatible Garmin GPSMAP chartplotter.
Like the larger Fantom 56, the Fantom 54 uses solid-state CHIRP technology — no magnetron tube to warm up or replace, instant-on operation, and lower power draw than a comparable traditional radar. MotionScope Doppler processing highlights moving targets in a distinct colour on the radar display, making it immediately clear which returns are vessels underway versus stationary objects. At 40W of solid-state output, it delivers strong target detection and close-range discrimination in a compact 4-foot array with reduced wind load.
Key Specifications
- Antenna Length: 4 feet
- Transmit Power: 40W (solid-state)
- Radar Technology: Solid-state CHIRP with MotionScope Doppler
- Radar System: GMR Fantom 54
- Key Advantages: Instant-on, low power draw, moving target highlighting, superior close-range discrimination
- Network Connection: Garmin Marine Network (Ethernet)
- Kit Contents: 4-foot open-array antenna and radar pedestal
- Compatible Displays: Garmin GPSMAP chartplotter series
- Part Number: K10-00012-17
Parts Desk Insights
Best Use Case: The GMR Fantom 54 is the right choice for mid-size cruisers, sportfishers, and coastal boats that want Fantom-series solid-state CHIRP performance — including MotionScope Doppler — in a 4-foot array that fits vessels where a 5-foot or 6-foot array would be too large or create too much wind load on the radar arch. The 4-foot array still delivers significantly better close-range target discrimination than a dome radar, and the MotionScope feature adds a meaningful safety advantage in traffic and low-visibility conditions that the GMR CHIRP 2104 antenna-only unit doesn’t include. If you’re deciding between the Fantom 54 and the Fantom 56, choose the 54 when arch space or wind load is the constraint; choose the 56 when maximum beam sharpness and output power are the priority. Confirm your Garmin GPSMAP chartplotter supports the Garmin Marine Network and is compatible with the Fantom series before ordering.
Installation Note: Ships as two cartons — the 4-foot antenna in a long carton and the pedestal separately. Professional installation is recommended. Use quality shielded Ethernet cable for all Garmin Marine Network connections.
Estimated Packaging: Two cartons — antenna approximately 54" × 10" × 8" (137 × 25 × 20 cm) and pedestal approximately 16" × 16" × 12" (41 × 41 × 30 cm), approx. 13 kg total shipped. Oversized shipping rates may apply.
