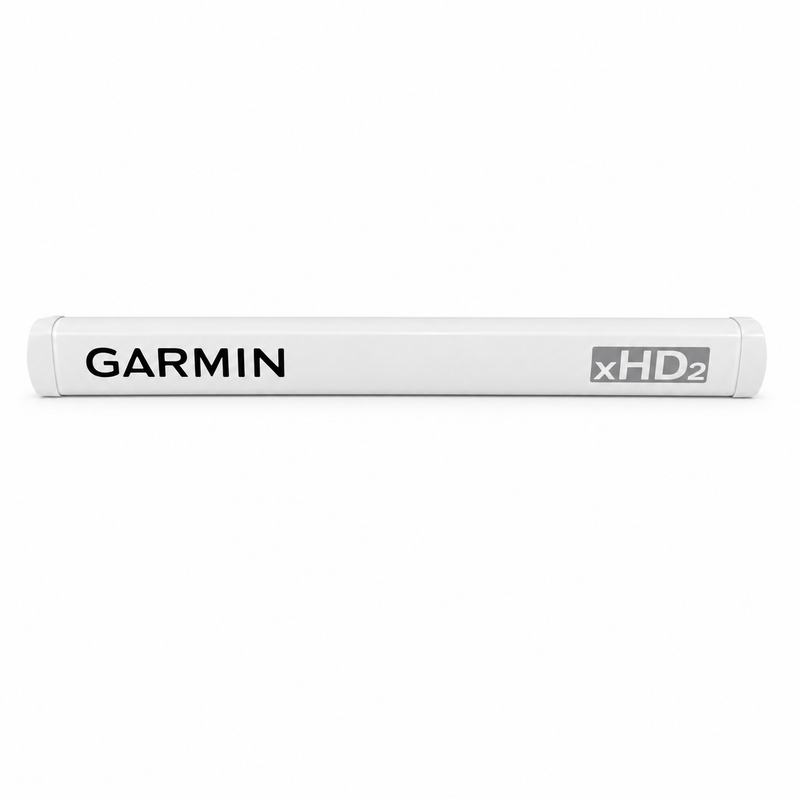

Garmin GMR xHD2 — 4-Foot Open-Array Radar Antenna
The GMR xHD2 4-foot open-array radar antenna brings high-definition radar performance to mid-size vessels where a 6-foot array isn’t practical. The 4-foot array delivers sharp target separation and reliable range in a more compact, lower-profile package — with less wind load and easier mounting on radar arches and masts where space is at a premium.
It integrates seamlessly with Garmin GPSMAP and echoMAP chartplotter series, overlaying radar returns directly on chart data for a clear, combined situational picture. Fast rotation speed keeps the radar picture current for confident navigation in traffic, fog, and low-visibility conditions.
Note: This is the antenna only. A compatible Garmin xHD2 radar pedestal is required and sold separately.
Key Specifications
- Antenna Length: 4 feet
- Type: Open-array radar antenna
- Radar Series: GMR xHD2
- Compatibility: Garmin GPSMAP and echoMAP chartplotter series
- Pedestal Required: Yes — Garmin xHD2 radar pedestal (sold separately)
- Part Number: 010-01333-03
Parts Desk Insights
Best Use Case: The GMR xHD2 4-foot antenna is the right choice for mid-size cruisers, sportfishers, and coastal boats where a 6-foot array would be too large or create too much wind load on the radar arch. The 4-foot array still delivers significantly better target resolution than a dome radar, making it a strong upgrade for boaters who want open-array performance without the footprint of the 6-foot unit. If your vessel has a standard radar arch rated for an open-array and you’re navigating in coastal or offshore conditions where target separation matters, this is the practical entry point into the xHD2 open-array lineup. Confirm your Garmin chartplotter is compatible with the xHD2 radar series before ordering, and ensure you have or are ordering the matching xHD2 pedestal.
Installation Note: Ensure your radar arch or mast mount is rated for the antenna’s weight and wind load. Professional installation is recommended for optimal alignment and cable routing.
Estimated Packaging: Long carton approximately 54" × 10" × 8" (137 × 25 × 20 cm), approx. 6 kg shipped. Oversized shipping rates may apply.
