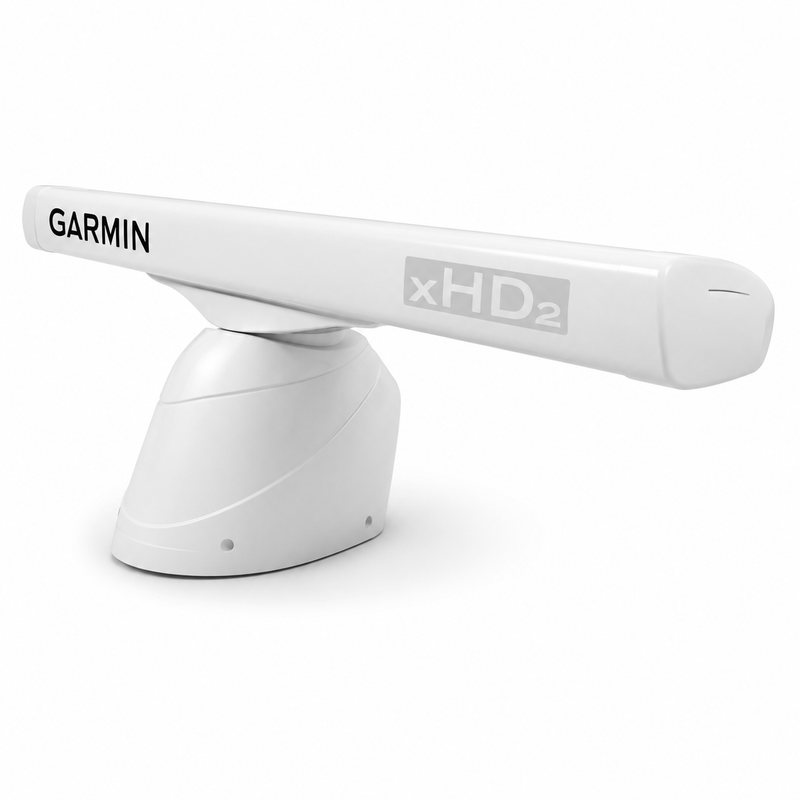

Garmin GMR xHD2 — 6-Foot Open-Array Radar Antenna
The GMR xHD2 6-foot open-array radar antenna delivers high-definition target separation and long-range detection for serious offshore and coastal navigation. The 6-foot array provides superior beam width and target resolution compared to shorter antennas — making it the right choice for vessels where radar performance is a priority, not just a convenience.
Running at up to 48 RPM, it updates the radar picture quickly enough to track fast-moving targets and navigate in congested waterways with confidence. It integrates seamlessly with Garmin GPSMAP and echoMAP chartplotter series, overlaying radar returns directly on chart data for a clear, combined situational picture.

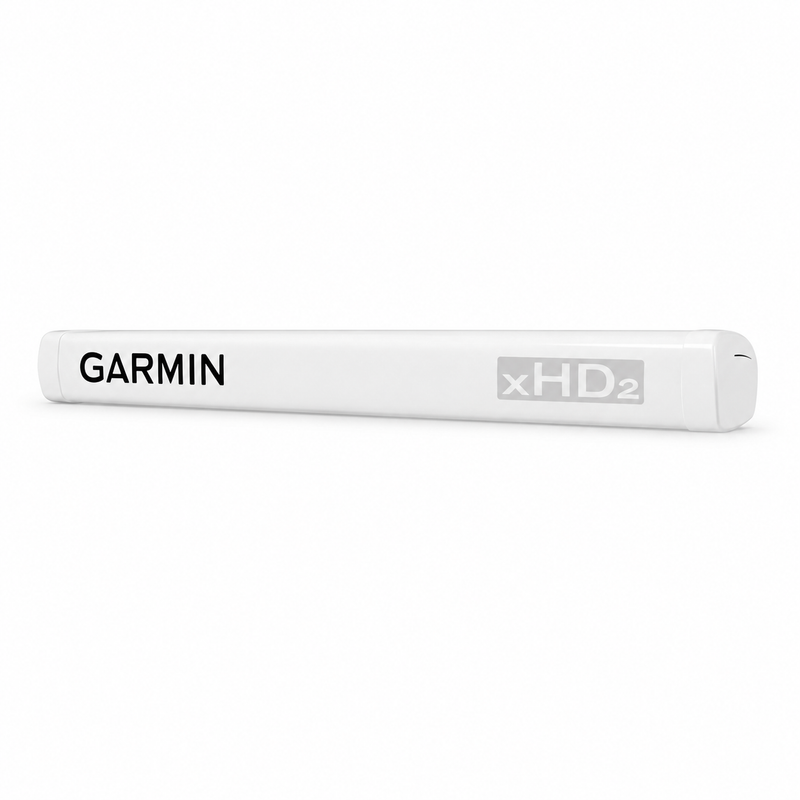

Note: This is the antenna only. A compatible Garmin xHD2 radar pedestal is required and sold separately.
Key Specifications
- Antenna Length: 6 feet
- Type: Open-array radar antenna
- Radar Series: GMR xHD2
- Rotation Speed: Up to 48 RPM
- Compatibility: Garmin GPSMAP and echoMAP chartplotter series
- Pedestal Required: Yes — Garmin xHD2 radar pedestal (sold separately)
- Part Number: 010-01333-04
Parts Desk Insights
Best Use Case: The GMR xHD2 6-foot antenna is the right choice for offshore fishing boats, larger cruisers, and commercial vessels where maximum radar range and target resolution matter. The 6-foot array outperforms 4-foot antennas in beam sharpness and the ability to separate closely spaced targets at range — a meaningful advantage in fog, rain, or busy shipping lanes. If your vessel has the deck space and mast height to accommodate a 6-foot array, this is the performance upgrade over the 4-foot option. Confirm your existing Garmin chartplotter is compatible with the xHD2 radar series before ordering, and ensure you have or are ordering the matching xHD2 pedestal.
Installation Note: The 6-foot antenna requires a sturdy radar arch or mast mount rated for the antenna’s weight and wind load. Professional installation is recommended for optimal alignment and cable routing.
Estimated Packaging: Long carton approximately 80" × 12" × 8" (203 × 30 × 20 cm), approx. 10 kg shipped. Oversized shipping rates may apply.
