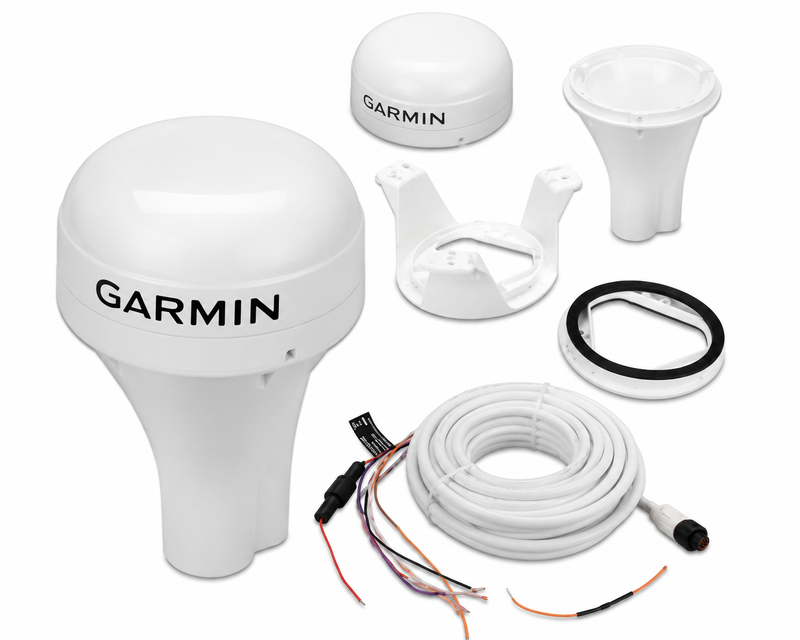

Garmin GPS 19x HVS — High-Sensitivity External GPS Antenna
The GPS 19x HVS is a compact, high-sensitivity external GPS antenna that delivers fast, accurate position data to Garmin chartplotters, autopilots, VHF radios, and any other NMEA 0183-compatible device onboard. The HVS (High Velocity Start) technology enables rapid satellite acquisition — even in challenging signal environments like marinas with tall masts, bridges, or tree-lined waterways.
With a 10 Hz position update rate, it feeds position data ten times per second — fast enough for responsive autopilot steering and accurate track logging at speed. The wide voltage input (8–40V DC) makes it compatible with both 12V and 24V electrical systems, and the IPX7 waterproof rating means it can be mounted in exposed locations without concern.
The included 15-metre cable provides plenty of reach from a mast or hardtop mount to the helm electronics.
Key Specifications
- Type: External GPS/GNSS antenna with NMEA 0183 output
- Position Update Rate: 10 Hz
- Output Protocol: NMEA 0183 (4800 baud)
- Cable Length: 15 metres (included)
- Waterproof Rating: IPX7
- Input Voltage: 8–40V DC (12V and 24V compatible)
- Part Number: 010-01010-00
Parts Desk Insights
Best Use Case: The GPS 19x HVS is the right choice when your chartplotter, autopilot, or VHF radio needs an external GPS source — either because the device lacks a built-in GPS receiver, or because the internal antenna has poor sky view from its helm location. It’s also a reliable solution for feeding a single GPS position source to multiple devices via an NMEA 0183 multiplexer. The 10 Hz update rate makes it particularly well-suited for autopilot applications where slow position updates cause hunting or course correction lag. Confirm your device accepts NMEA 0183 input (not NMEA 2000) before ordering — if your network is NMEA 2000, you’ll need a different antenna or a protocol converter.
Mounting Note: Mount with a clear, unobstructed view of the sky. Avoid locations directly below a radar dome or in the shadow of a mast, as these can degrade GPS signal acquisition.
Estimated Packaging: Box approximately 8" × 6" × 4" (20 × 15 × 10 cm), approx. 0.4 kg shipped.
