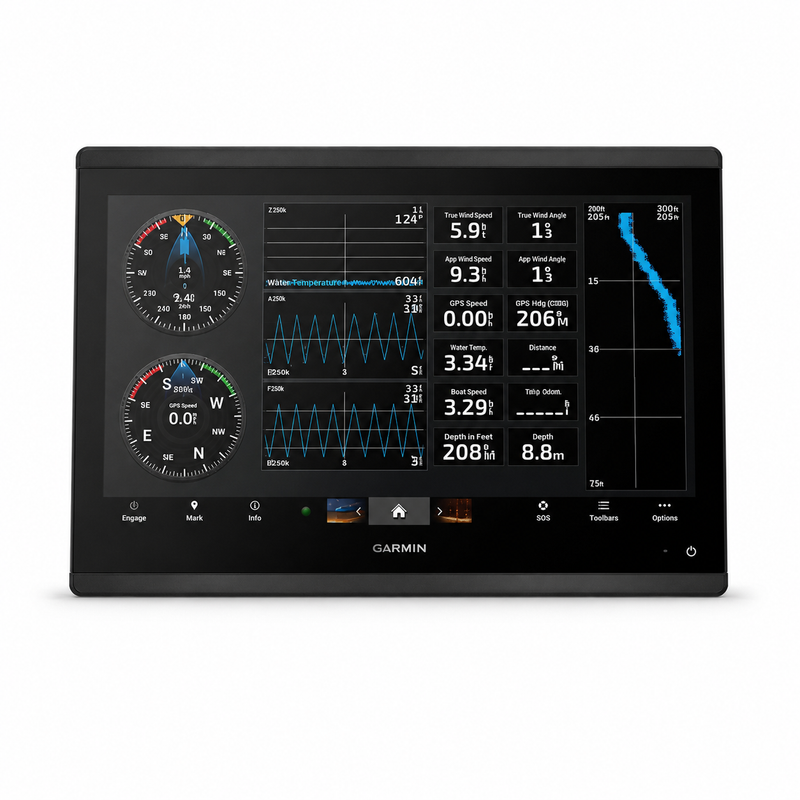

Garmin GPSMAP 1623XSV
The GPSMAP 1623XSV is a 16-inch multi-function chartplotter designed for serious offshore and coastal boaters who demand precision navigation, powerful sonar, and seamless network integration in a single helm-mounted display. With a large, sunlight-readable touchscreen and support for both traditional and scanning sonar, it delivers the situational awareness needed for confident passage-making and fishing.
Key Features
- 16" HD Touchscreen Display — Large, bright, and sunlight-readable with multi-touch capability for intuitive helm operation
- Built-in Sonar — Supports CHIRP traditional sonar, CHIRP ClearVü, and CHIRP SideVü scanning sonar for detailed underwater imaging
- Preloaded Coastal Charts — Comes with built-in BlueChart g3 coastal charts; compatible with BlueChart g3 Vision and LakeVü g3 Ultra cartography
- Garmin Marine Network Compatible — Integrates with radar, autopilot, VHF radio, instruments, and other networked devices via NMEA 2000 and Garmin Marine Network
- Autopilot Ready — Supports one-touch autopilot engagement and heading control when paired with a compatible Garmin autopilot
- ActiveCaptain Integration — Connect via the ActiveCaptain app for chart updates, smart notifications, and community marina data
- Wireless Connectivity — Built-in Wi-Fi for software updates and chart synchronization
- Quickdraw Contours — Create and share personalized HD fishing maps with 1-foot contours
Parts Desk Insights

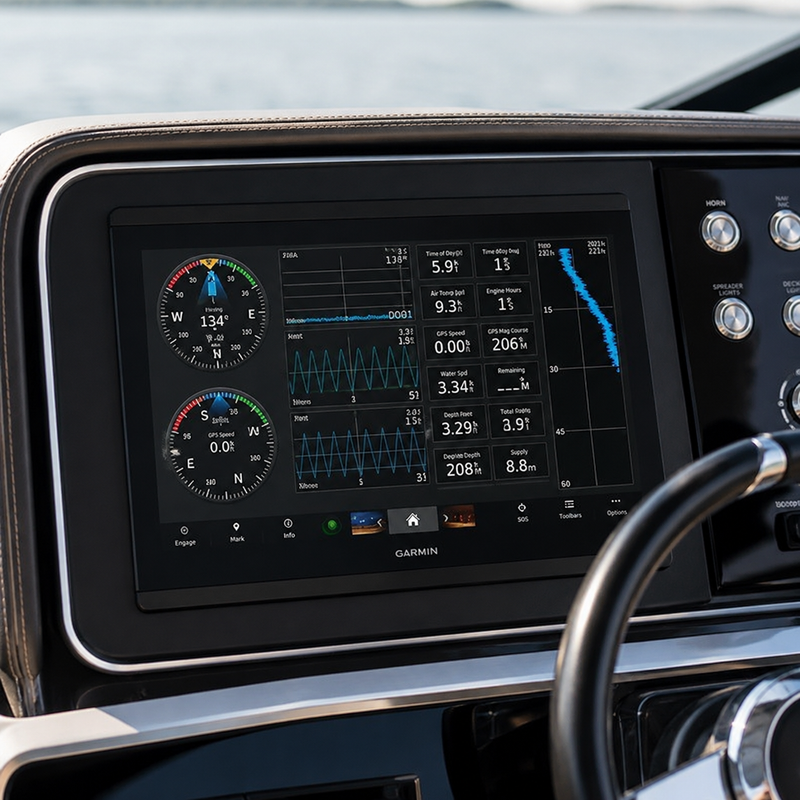

Best Use Case: Ideal for offshore sport fishing vessels, cruising powerboats, and larger sailboats (typically 30–60+ ft) where a large-format primary display is needed at the helm. The built-in SideVü and ClearVü sonar makes this unit particularly well-suited for anglers who want both navigation and fish-finding capability in one display without a separate sounder module. Pairs naturally with a Garmin GMR radar dome, GHP autopilot, and VHF radio for a fully integrated Garmin helm system.
Installation Notes: Requires a flush-mount or bracket-mount installation with a dedicated 12V DC power supply. Transducer sold separately — confirm transducer compatibility (frequency and connector type) before ordering. Network integration requires NMEA 2000 backbone or Garmin Marine Network cabling.
Compatibility: Works with Garmin CHIRP transducers (4-pin and 8-pin connectors depending on model). Confirm connector type with your transducer selection. Compatible with Garmin GXM weather receivers, AIS devices, and digital switching systems.
