Garmin GPSMAP 8412 12" Chartplotter
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Garmin GPSMAP 8412 Chartplotter
The GPSMAP 8412 is a 12-inch full HD touchscreen chartplotter from Garmin’s premium 8400 series, delivering the glass helm integration, Garmin Marine Network connectivity, and large-format display quality of the 8400 lineup in a compact 12-inch form factor — without built-in sonar. Preloaded with BlueChart g3 and LakeVü g3 charts, it is designed for vessels where a separate sounder is already installed or sonar is not required at that helm station.
Key Features
- 12" Full HD Touchscreen — Bright, sunlight-readable multi-touch display in a compact form factor suited to tighter helm installations

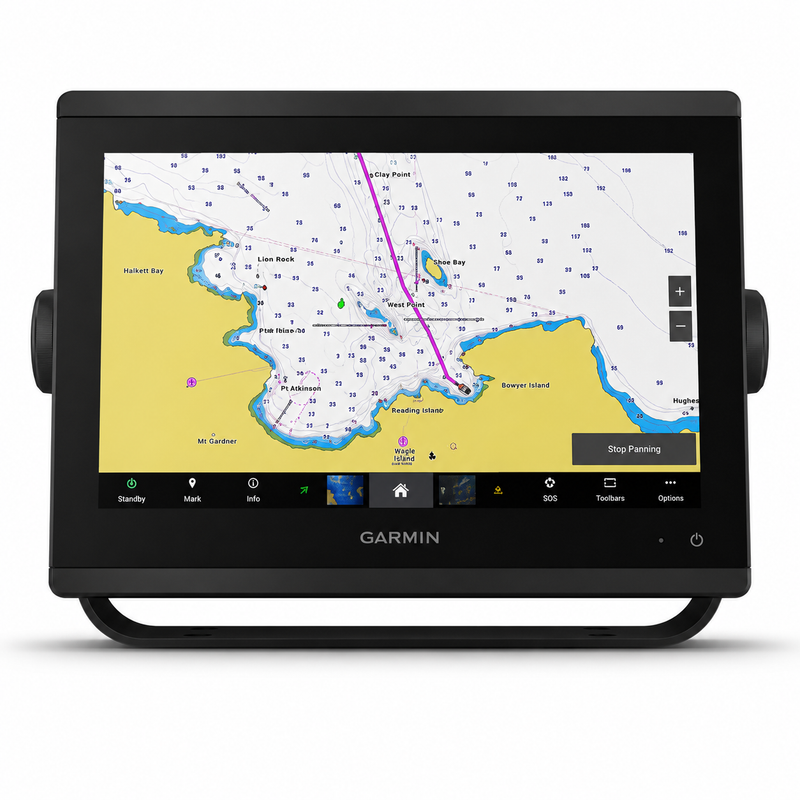

- Preloaded BlueChart g3 & LakeVü g3 Charts — Comprehensive coastal and inland chart coverage included out of the box
- Garmin Marine Network — Integrates with Garmin radar domes, autopilots, VHF radios, and instruments for a fully unified helm system
- NMEA 2000 & NMEA 0183 — Full integration with third-party autopilots, VHF radios, instruments, and other onboard electronics
- Autopilot Ready — One-touch autopilot engagement when paired with a compatible Garmin GHP autopilot

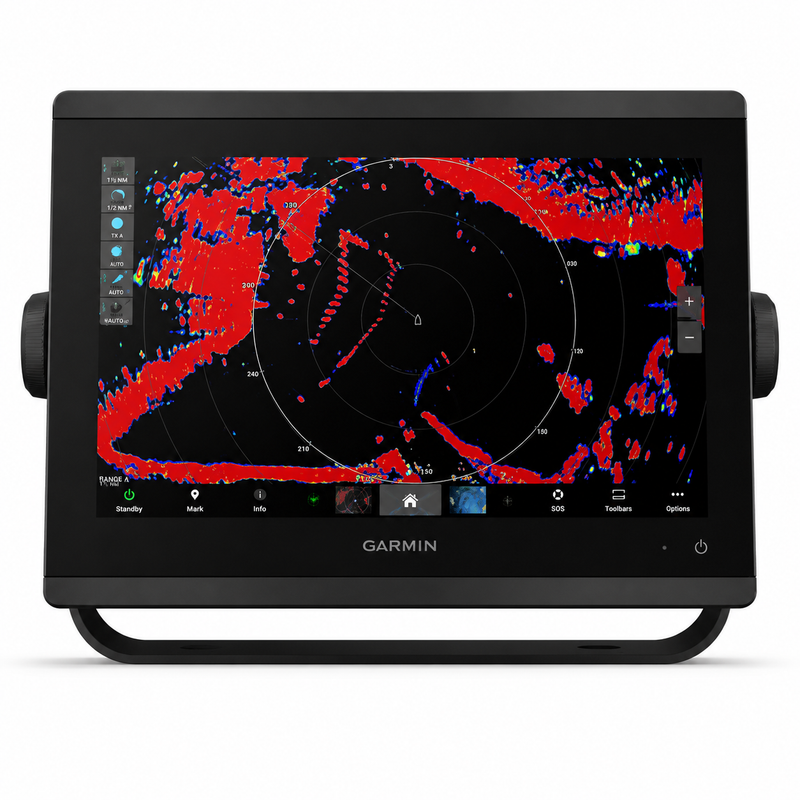

- Radar Compatible — Supports Garmin GMR radar domes for radar overlay directly on the chart display
- ActiveCaptain Integration — Connect via the ActiveCaptain app for chart updates, smart notifications, and community marina data
- Glass Helm Ready — Designed for multi-display glass helm installations; share data and views across multiple GPSMAP displays
- No Built-In Sonar — Navigation and radar display only; for built-in CHIRP sonar and SideVü capability, see the GPSMAP 8412xsv
Parts Desk Insights
Best Use Case: The GPSMAP 8412 is the right choice for boaters who want the premium build quality and glass helm capability of the 8400 series in a 12-inch format, without paying for built-in sonar they don’t need at that helm position. It is particularly well-suited as a dedicated navigation and radar display in a multi-screen glass helm build — for example, paired with a GPSMAP 8412xsv or 8416xsv where one display handles sonar and the other handles navigation. Also a strong choice for vessels with an existing standalone sounder where adding a premium Garmin chartplotter is the priority. The 12-inch form factor fits helm spaces where a 16-inch display would be too large.
Installation Notes: Flush-mount or bracket-mount installation. Requires 12V DC power. Garmin Marine Network cable required for radar and network device connections (sold separately). No transducer port — sonar not supported on this model.
Compatibility: Compatible with Garmin Marine Network devices. NMEA 2000 and NMEA 0183 compatible. Works with Garmin GHP autopilots, GMR radar series, GPS 24xd heading sensor, and VHF radios. Supports microSD card for chart expansion and data transfer.
