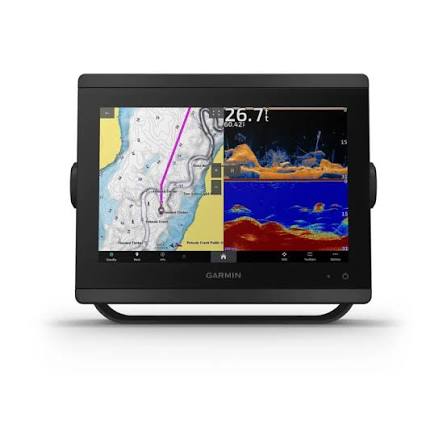

Garmin GPSMAP 8610XSV 10" Chartplotter/Fishfinder
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Garmin GPSMAP 8610XSV — 10" Chartplotter/Fishfinder
| Part Number | 010-02091-51 |
|---|---|
| Brand | Garmin |
| Official Product Type | Chartplotter/Fishfinder (XSV Series) |
| System | Marine Navigation & Sonar — Chartplotter/Fishfinder MFD |
| Display | 10" widescreen, sunlight-readable touchscreen |
| Supersedes | GPSMAP 8610 (non-XSV) |
| Replaced By | Contact us — verify current model status before ordering |
Overview
The GPSMAP 8610XSV combines premium chartplotting with advanced integrated fishfinding in a 10" sunlight-readable display. Preloaded with Garmin GN+ charts covering the US, Canada, and Bahamas, plus LakeVü HD (US only), this unit is a capable navigation and fishing center for coastal and inland boaters. Transducers sold separately.
XSV Sonar Capabilities
- Built-in HD-ID sonar with true dual-channel CHIRP (40–250 kHz)
- Integrated ClearVü and SideVü scanning sonar with CHIRP technology (260/455/800/1,200 kHz)
- Panoptix LiveScope All-Seeing sonar compatible
- GSD 26 premium sonar module compatible
- Transmit power: 1 kW RMS / 8,000 W peak-to-peak
- Graphic water temperature logging and sonar recording
Navigation & Charting
- Preloaded Garmin GN+ charts: US, Canada, Bahamas
- LakeVü HD preloaded (US only)
- Supports BlueChart g3 and g3 Vision chart cards
- Auto Guidance technology for suggested routes
- NMEA 2000 and NMEA 0183 networking
- Garmin Marine Network (GMN) compatible for sharing radar, sonar, and charts across displays
Compatible Applications
- Coastal cruising and offshore navigation
- Freshwater and saltwater fishing
- Multi-display helm integration via Garmin Marine Network
- Radar overlay (radar unit required, sold separately)
- VHF radio integration (DSC-capable radio required)
Transducer Compatibility
Transducer sold separately. Compatible with:
- CHIRP transducers: 40–250 kHz
- ClearVü/SideVü CHIRP scanning: 260, 455, 800, 1,200 kHz
- Panoptix LiveScope transducers
- All-in-one transducer options
Kit Contents
- GPSMAP 8610XSV display unit
- Flush mount hardware
- Power/data cable
- Gimbal bracket
- Documentation and warranty card
- Transducer not included — must be ordered separately
Dimensions & Weight
- Display size: 10" widescreen
- Unit weight: approximately 3.5 lb (1.6 kg)
- Refer to Garmin's current installation guide for exact cutout dimensions prior to installation
Related Products
- GPSMAP 8612XSV — 12" Chartplotter/Fishfinder
- GPSMAP 8616XSV — 16" Chartplotter/Fishfinder
- GPSMAP 8412XSV — 12" Chartplotter (no built-in fishfinder)
- GPSMAP 8416XSV — 16" Chartplotter (no built-in fishfinder)
- Garmin Transducer Spray Shield (010-12406-00)
Technical FAQ
- Does the 8610XSV include a transducer?
- No. Transducers are sold separately. Select a transducer matched to your hull type and sonar requirements.
- Can I network multiple displays?
- Yes. The 8610XSV supports Garmin Marine Network (GMN) for sharing radar, sonar, and chart data with compatible displays at the helm.
- Is a GRID 20 remote compatible?
- Yes. The optional GRID 20 wireless remote (sold separately) is compatible with the GPSMAP 8610XSV.
- What chart cards does it accept?
- BlueChart g3 and g3 Vision SD cards. The unit has a built-in SD slot.
- Does it support radar overlay?
- Yes, with a compatible Garmin radar unit connected via Garmin Marine Network.
Parts Desk Insights
Best use case: This unit is well suited for boaters who want an integrated chartplotter and fishfinder in a single 10" display, particularly those running Garmin's ecosystem (radar, VHF, autopilot) who want seamless network sharing across the helm. It's a strong choice for saltwater and freshwater fishing applications where both navigation precision and sonar quality matter.
Common customer questions: Customers frequently ask whether a transducer is included — it is not, and transducer selection depends on hull construction, target depth, and sonar type (ClearVü, SideVü, Panoptix). Customers also inquire about networking with existing Garmin units; the 8610XSV integrates cleanly into a full Garmin helm build. Confirm current production status and available accessories at time of order, as Garmin periodically updates chart bundles and accessory compatibility.
