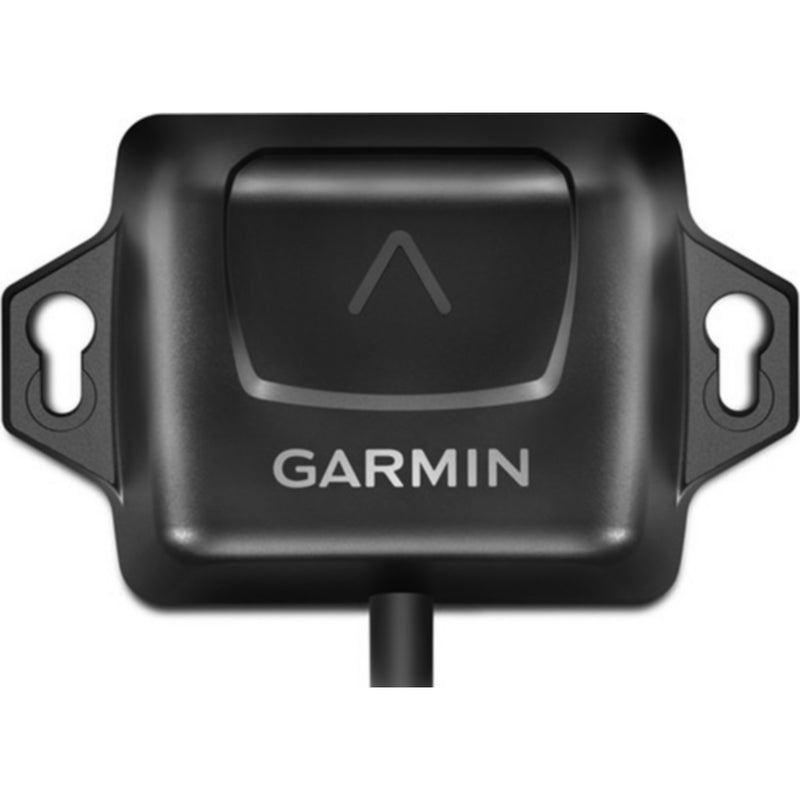

Garmin SteadyCast Heading Sensor
Part Number: 010-11417-10 (distributor SKU: 322-0101141710)
Brand: Garmin
Type: Marine heading sensor
Network: NMEA 2000 plug-and-play
Weight: 342 g
Product Overview
The Garmin SteadyCast heading sensor delivers real-time heading data to compatible chartplotters and NMEA 2000 displays, ensuring the on-screen vessel icon accurately reflects the boat’s actual bow orientation. Unlike GPS-based heading (which requires the boat to be moving), the SteadyCast uses 9-axis MEMS sensor technology to provide reliable heading even at rest or at low speeds — making it particularly useful for fishing, docking, and slow-speed maneuvering.
- Heading accuracy: ±3°
- 9-axis MEMS sensor technology — provides heading data even when stationary or moving slowly
- NMEA 2000 plug-and-play connection — no proprietary wiring required
- Can be installed in any orientation, away from magnetic interference sources
- Simple 2-step calibration process
- Compact and lightweight (342 g)
Compatible Applications
- Compatible Garmin chartplotters with NMEA 2000 connectivity
- Compatible third-party NMEA 2000 chartplotters and MFDs that accept heading data (PGN 127250)
- Vessels where GPS-based heading is insufficient due to slow-speed or stationary operation
- Fishing boats, bass boats, and pontoons where accurate bow orientation on the chartplotter is important
Note: Confirm your chartplotter accepts NMEA 2000 heading data (PGN 127250) before ordering. A functioning NMEA 2000 backbone with available drop port is required for installation.
How It Works
The SteadyCast connects to your existing NMEA 2000 network backbone via a standard T-connector and drop cable. Once calibrated, it continuously broadcasts heading data to all connected devices on the network. Calibration requires two slow 360-degree turns and takes only a few minutes.
Installation Notes
- Mount the sensor in a stable location away from speakers, motors, and other magnetic interference sources
- Can be mounted in any orientation — no need to align with the vessel centerline during mounting
- Connect to the NMEA 2000 backbone using a compatible T-connector and drop cable
- Complete the 2-step calibration using your chartplotter’s sensor calibration menu before use
- If heading is erratic, recheck for nearby magnetic interference and re-run calibration
Technical FAQ
Is this the same as a GPS heading sensor? No — GPS heading requires the boat to be moving. The SteadyCast uses MEMS technology to provide heading even at rest or at very low speed, which is a significant advantage for fishing and slow-speed docking.
Will this work with non-Garmin chartplotters? It transmits standard NMEA 2000 heading data (PGN 127250), so it is compatible with many non-Garmin NMEA 2000 displays. Confirm PGN compatibility with your specific MFD before ordering.
Do I need a NMEA 2000 network already installed? Yes — the SteadyCast requires an active NMEA 2000 backbone. If you’re starting from scratch, see the Garmin NMEA 2000 Starter Kit.
Related Products
- Garmin NMEA 2000 Starter Kit – 010-11442-00
- Garmin NMEA 2000 T-Connector – 010-11078-00
- Garmin GPS 24xd GPS Antenna and Heading Sensor
- Garmin MSC 10 Marine Satellite Compass – 010-02407-00
- Raymarine Raystar RS150 External GPS/GNSS Sensor – NMEA 2000
Parts Desk Insights
The SteadyCast is the right answer for customers who complain that their chartplotter shows the boat pointing the wrong direction, especially at low speed or when stationary. The most common issue is installation near magnetic interference — keep it away from bilge pumps, speakers, and electric motors. The second most common issue is customers skipping or rushing the calibration, which results in a consistent heading offset. Always advise customers to complete the full calibration in open water before relying on the heading output. For customers who need GPS and heading combined in one unit, point them to the Garmin GPS 24xd or the Garmin MSC 10 Marine Satellite Compass as higher-end alternatives.
