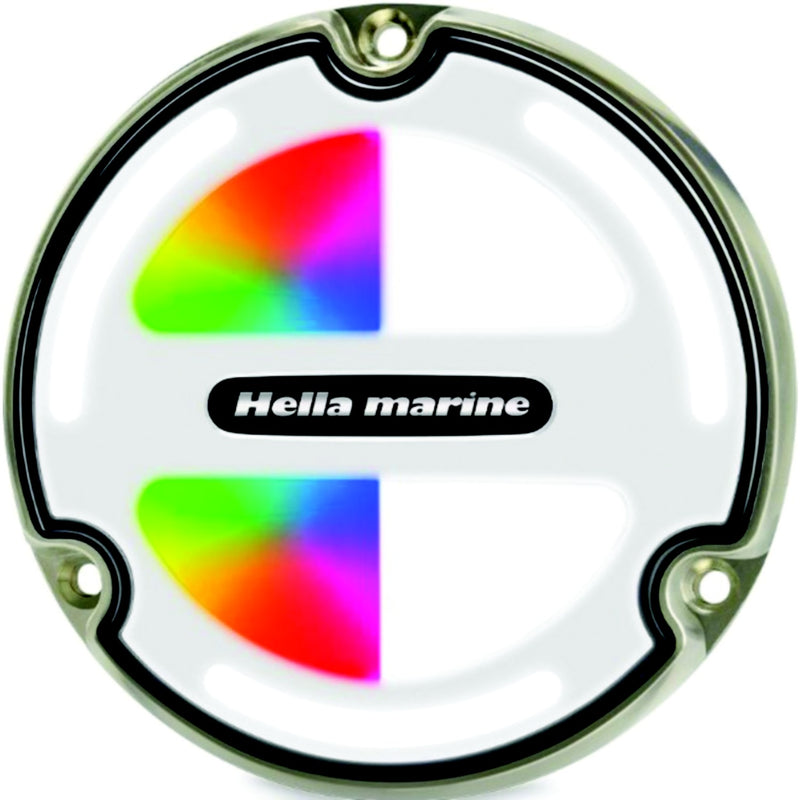

Hella 016830101 Apelo A3 Bronze LED Underwater Light, RGBW
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Hella Marine Apelo A3 Bronze RGBW LED Underwater Light is a premium high-output underwater lighting fixture for transoms, hull sides, and permanently submerged marine installations. The RGBW version delivers full-spectrum colour control with dedicated white LEDs for crisp 5000K white illumination, while its wide optical spread is designed to project light broadly beneath the waterline. Built with a marine-grade bronze housing, nickel-silver corrosion protection, and a UV-stable Grilamid lens, the Apelo A3 is engineered for demanding underwater service on fiberglass, timber, steel, and composite hulls.
Key Features
- Hella Marine part number: 016831001
- Product series: Apelo A3
- Light type: LED underwater light
- Colour output: RGBW full-spectrum colour plus dedicated white LEDs
- White colour temperature: 5000K
- Maximum light output: Up to 6000 lumens
- Beam angle: 90° x 24°
- Voltage: 12V / 24V DC nominal multivolt system
- Power consumption: Up to 70W at maximum output
- Housing material: Marine-grade bronze with nickel-silver corrosion protection
- Lens material: Impact-resistant, UV-stable Grilamid nylon
- Waterproof rating: IP68 / IP69
- Safety feature: Integrated high-temperature thermal cutout for dry-operation protection
- Accent feature: Low-intensity edge lighting for safe out-of-water or trailer illumination
Product Compatibility
This underwater light is intended for surface-mounted marine lighting installations below the waterline on compatible hull materials, including:
- Fiberglass hulls
- Timber hulls
- Steel hulls
- Composite hulls
It may also be used on aluminum hulls only when installed with the correct isolation spacer or isolation method to prevent galvanic corrosion between dissimilar metals.
The Apelo A3 RGBW version is best suited for boats requiring high-output colour lighting and bright white underwater illumination from a compact bronze fixture.
Fitment Notice
Confirm the exact part number before ordering. 016831001 refers to the full-spectrum RGBW Apelo A3 version. 016830101 refers to the related dual-colour blue/white Apelo A3 version and should not be treated as the same product if RGBW colour control is required.
Before installation, verify hull material, mounting location, hull thickness, cable routing, voltage, circuit protection, controller compatibility, sealant requirements, and underwater clearance. Aluminum hulls require isolation from the bronze housing to reduce galvanic corrosion risk.
When This Product Needs Replacement
Replace an underwater light if the lens is cracked, the housing is damaged, the fixture shows water intrusion, the LEDs fail, colour output becomes inconsistent, wiring is damaged, or corrosion compromises the sealing area. Replacement may also be required when upgrading from single-colour or dual-colour lighting to RGBW control.
Inspect underwater lights during haul-out for marine growth, lens damage, mounting fastener condition, cable strain, sealant failure, and signs of galvanic activity around the mounting area.
Installation Notes
Install only according to the current Hella Marine installation instructions. The mounting surface must be clean, fair, structurally sound, and appropriate for through-hull cable routing. Use marine-grade sealing practices and confirm that the fixture is properly bedded, fastened, fused, and connected to a suitable 12V or 24V DC circuit.
For RGBW installations, confirm the control system and wiring layout before mounting the light. Do not mix part numbers in the same lighting plan unless the vessel owner understands the difference between RGBW and blue/white output. After installation, test all colours, white output, dimming/control functions, and circuit protection before launch.
Alternate/Superseded Part Numbers
- Hella Marine RGBW version: 016831001
- Related blue/white version: 016830101
- Common description: Hella Marine Apelo A3 Bronze LED Underwater Light
- Series reference: Apelo A3
- Colour reference: RGBW / 5000K white
Parts Desk Insight
The most important buying detail is the colour version. The Apelo A3 bronze body may look similar across versions, but 016831001 is the RGBW model, while 016830101 is the blue/white model. Match the part number to the lighting controls and colour output the boat is being wired for before ordering.
