Humminbird 7402331 Gimbal Mount – XPLORE 9
Part Number: 7402331 (distributor SKU: 137-7402331)
Brand: Humminbird
Type: Replacement gimbal mount / mounting bracket
Compatible unit: Humminbird XPLORE 9 fishfinder/chartplotter
Material: High-strength aluminum
Weight: 544 g
Product Overview

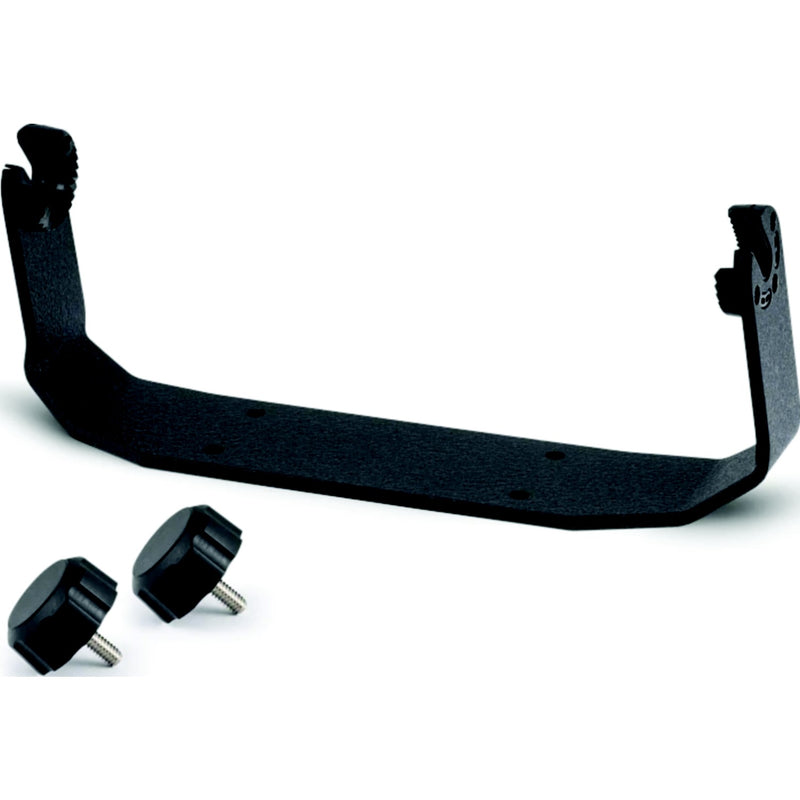

The Humminbird 7402331 is the OEM replacement gimbal mount for the XPLORE 9 fishfinder/chartplotter series. It provides a stable, adjustable mounting solution with a ratcheted positioning mechanism that allows the display to be set to the optimal viewing angle and locked securely in place. If the original mounting bracket has been damaged, broken, or lost, this is the correct OEM replacement to restore the XPLORE 9 to its factory-spec mounting configuration.
- OEM replacement gimbal mount for Humminbird XPLORE 9
- Ratcheted design for step-by-step angle adjustment and secure locking
- High-strength aluminum construction for lasting durability
- Restores factory-spec adjustable mounting for the XPLORE 9 display
- Weight: 544 g
Compatible Applications
- Humminbird XPLORE 9 fishfinder/chartplotter — replacement gimbal mount
- Restoring a damaged or missing factory gimbal bracket on an XPLORE 9 unit
- Re-mounting an XPLORE 9 display in a new helm or console location
Fitment Note: The 7402331 gimbal mount is designed specifically for the Humminbird XPLORE 9. Confirm your display model before ordering — gimbal mounts are model-specific and are not interchangeable across different Humminbird series.
Part Number Reference
- Humminbird: 7402331
- Distributor SKU: 137-7402331
- Compatible unit: Humminbird XPLORE 9
Installation Notes
- Attach the gimbal mount to the mounting surface using appropriate fasteners for the installation location (helm, console, or bracket)
- Align the display mounting ears with the gimbal arm and secure with the gimbal knobs or fasteners
- Adjust the display to the desired viewing angle and confirm the ratchet engages evenly on both sides
- Tighten the gimbal knobs securely to hold the display position during vessel operation
- Inspect fasteners and the ratchet mechanism periodically, especially after heavy use or rough-water operation
Technical FAQ
Will this gimbal mount fit other Humminbird models? No — the 7402331 is designed specifically for the XPLORE 9 series. Humminbird gimbal mounts are model-specific. Confirm the correct part number for your unit before ordering.
Is this an OEM part? Yes — the 7402331 is the genuine Humminbird OEM replacement gimbal mount for the XPLORE 9.
What if the ratchet mechanism doesn’t engage evenly? Check that the display mounting ears are fully seated in the gimbal arms and that the gimbal knobs are correctly installed on both sides. Uneven engagement is usually caused by one side not being fully seated.
Parts Desk Insights
The 7402331 is a straightforward OEM replacement — the right call when the original XPLORE 9 gimbal bracket is cracked, broken, or missing. The most common post-installation issue is the ratchet not engaging smoothly on both sides — confirm the display mounting ears are fully seated in the gimbal arms on both sides before tightening. Also confirm the mounting surface is suitable for the gimbal’s footprint and fastener pattern before installation.
