Humminbird 7402341 Gimbal Mount – XPLORE 10
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

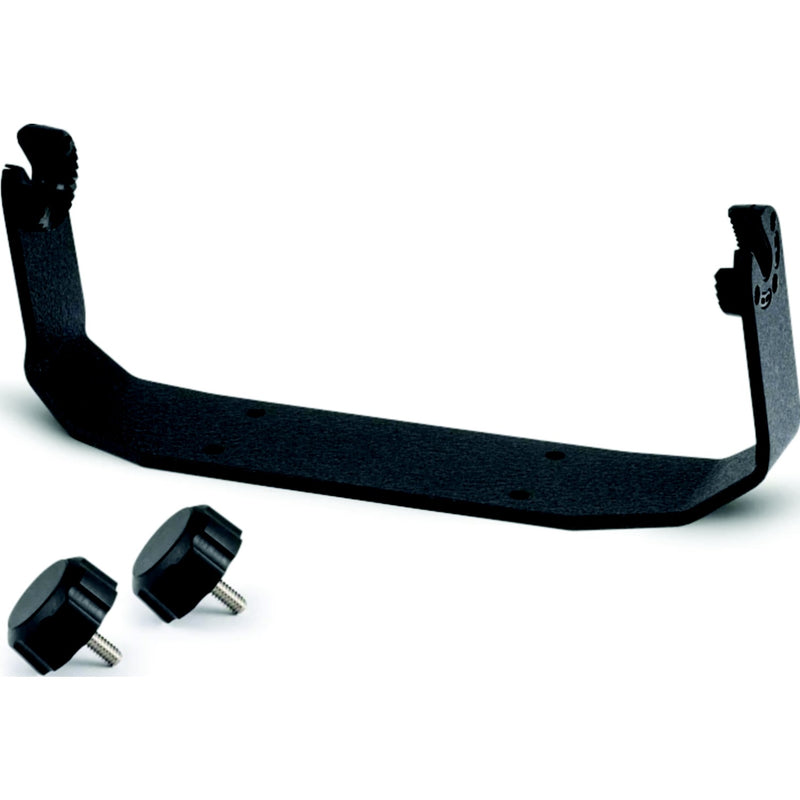

The Humminbird 740234-1 Gimbal Mount is the OEM replacement bracket for the XPLORE 10 control head. Built from high-strength aluminum with a ratcheted tilt mechanism, it restores proper head positioning and full viewing-angle adjustment—hardware included.
Part Details
- Part Number: 740234-1 (Catalog SKU: 137-7402341)
- Brand: Humminbird
- Official Product Type: Gimbal Mount / Replacement Bracket
- System: Control Head Mounting – Gimbal Configuration
- UPC/GTIN: 0082324058950
Kit Contents
- 1× Aluminum Gimbal Mount bracket
- Tilt-adjustment knobs
- Mounting hardware set
Compatible Applications
- Humminbird XPLORE 10 CMSI+ Fish Finder (4120101) – Gimbal Mount Configuration
- Humminbird XPLORE 10 CHO Fish Finder (4120101CHO) – Gimbal Mount Configuration
Verify your control head model and mount configuration before ordering. This mount is specific to the XPLORE 10 gimbal bracket position.
Related Products
- Humminbird 7402331 Gimbal Mount – XPLORE 9
- Humminbird 7402351 Gimbal Mount – XPLORE 12
- Humminbird 7402361 In-Dash Mounting Kit – XPLORE
- Humminbird 7402371 In-Dash Mounting Kit – XPLORE
- Humminbird 7402381 In-Dash Mounting Kit – XPLORE
Parts Desk Insights
Best Use Case: Order this mount when the original XPLORE 10 gimbal bracket is cracked, broken, or missing—restoring full tilt adjustment and secure head positioning without replacing the entire unit.
Common Issues: If the head still feels loose after installation, check knob tightness and confirm all hardware is seated correctly. Customers occasionally order the wrong size—double-check that your control head is the XPLORE 10 (not XPLORE 9 or XPLORE 12), as each model uses a different bracket.
