Humminbird APEX 19 MSI+ VX — 19" Full-HD Chartplotter & Fishfinder with Transducer

Humminbird APEX 19 MSI+ VX — The Complete Large-Format Flagship Bundle

The Humminbird APEX 19 MSI+ VX is the top of the APEX lineup — the largest display, the highest-resolution sonar, and a complete out-of-the-box package that includes the MEGA Side Imaging+™ transducer. Built for serious helm installations on larger vessels, this 19-inch full-HD command display pairs Humminbird’s most powerful processing with their best imaging technology, so you can run sonar, charting, radar, and boat network functions simultaneously without ever feeling like you’re asking too much of the unit.

If you want the absolute best Humminbird APEX has to offer — in size, capability, and completeness — this is it.

Key Features

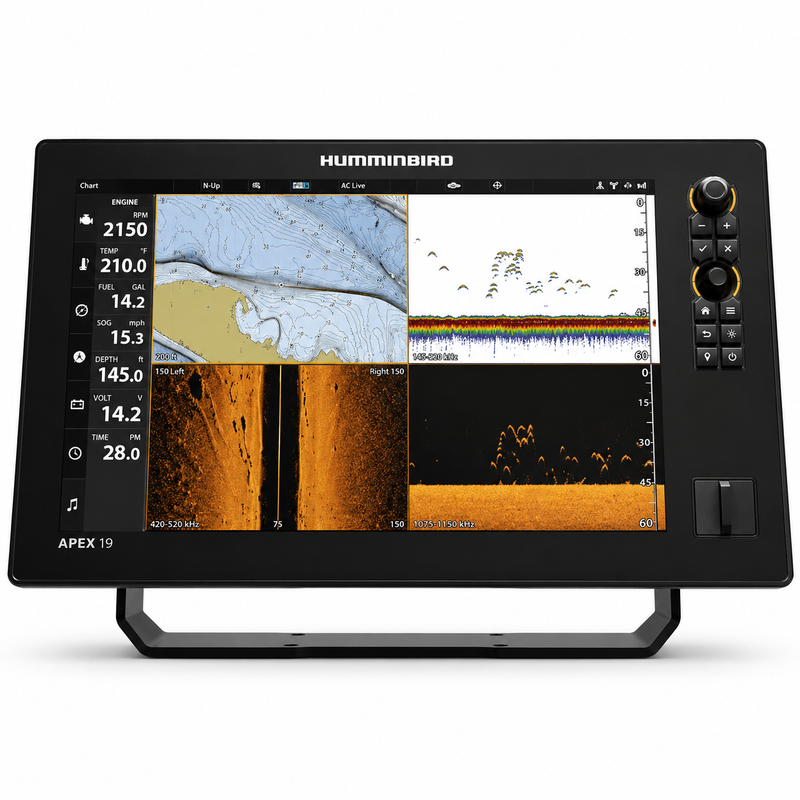

• 19" Full-HD Display: 1920 x 1080 resolution touchscreen with Cross Touch® Interface — touch or keypad control, your choice

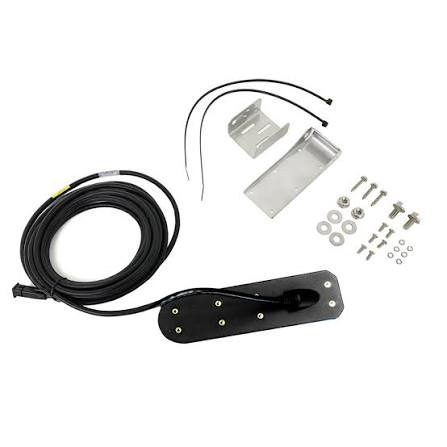

• Includes MEGA Side Imaging+™ Transducer: Complete, ready-to-fish sonar capability with Humminbird’s highest-resolution side and down imaging technology
• MEGA Down Imaging+™ & Dual Spectrum CHIRP: Dual-channel sonar with a dedicated channel for AIRMAR® transducers up to 2kW
• Integrated GPS Chartplotting: Built-in Humminbird® Basemap; compatible with CoastMaster™, LakeMaster®, and Navionics® premium charts
• One-Boat Network™: Seamless integration with Minn Kota® trolling motors and Cannon® downriggers for unified boat control
• Full Networking Suite: Dual Ethernet ports, HDMI In/Out, NMEA 2000®, built-in Bluetooth® and Wi-Fi
• Accessory Compatible: Humminbird CHIRP Radar, AutoPilot, VHF radio, CZone® digital switching, Fusion® audio
• Includes: Front-mount dash kit and gimbal mount

Best Use Cases

• Large centre consoles, sportfishing vessels, and walkarounds where a 19" display matches the scale of the helm
• Professional and charter captains who need to monitor sonar, charts, radar, and boat systems simultaneously at a glance
• Anglers who want the complete APEX 19 experience without sourcing a separate transducer
• Multi-display helm builds where the APEX 19 MSI+ serves as the primary command station
• Offshore and deep-water applications where MEGA Imaging+ resolution and the 2kW AIRMAR channel provide a meaningful advantage

Parts Desk Insights

• The MSI+ VX bundle includes the MEGA Side Imaging+™ transducer — the key difference from the APEX 19 CHO version. If you already have a compatible transducer, the CHO variant offers the same display and networking capability at a lower price.
• At 13.6 kg, this is the heaviest unit in the APEX lineup — confirm your helm structure, mounting surface, and any gimbal arm are rated for the weight before ordering.
• The dedicated 2kW AIRMAR transducer channel means you can add a high-power offshore sonar transducer alongside the included MSI+ unit, making this the most future-proof option in the APEX range for serious offshore use.
• MEGA Imaging+ is Humminbird’s top-tier imaging technology — the step up from standard MEGA Imaging is most noticeable at longer side-scan ranges and in deeper water where image clarity degrades on lesser units.
• Verify helm cutout dimensions carefully — the 19" display requires a substantially larger cutout than the 13" or 16" models. Confirm the front-mount kit dimensions against your dash layout before installation.
