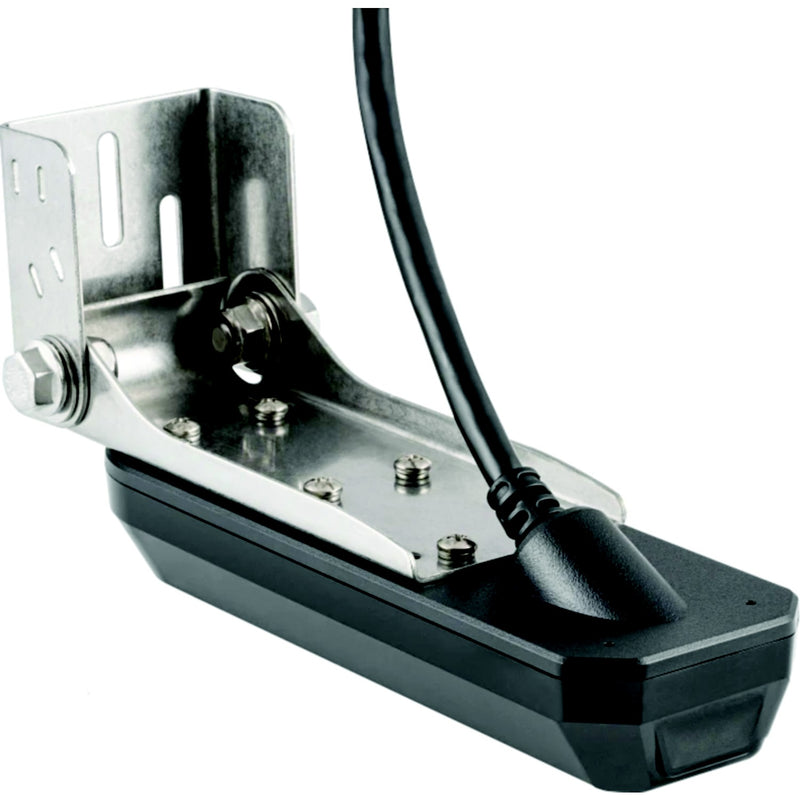

Humminbird XM 14 HW CMSI T – Compact MEGA Side Imaging+ Transducer (7103111)
The XM 14 HW CMSI T is a compact transom-mount transducer that brings full MEGA imaging capability to compatible Humminbird fish finders. It delivers MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar through a single screw-on connector — making it the go-to transducer for XPLORE, APEX, and SOLIX G3 installations where a smaller profile is preferred over a trolling motor or in-hull mount.
Compatible Head Units
This transducer is designed for use with the following Humminbird platforms:
- XPLORE series — including the XPLORE 10 CHO (4120101CHO)
- APEX series
- SOLIX G3 series
Always verify your specific head unit model is listed as compatible before ordering. Not all Humminbird units accept the CMSI T connector type.
Sonar Frequencies & Performance
-
MEGA Side Imaging+
- 455 kHz (405–505 kHz) — max side-to-side range: 800 ft (244 m)
- MEGA 1.1–1.2 MHz — max side-to-side range: 400 ft (122 m)
-
MEGA Down Imaging+
- 455 kHz (420–520 kHz) — max depth: 400 ft (122 m)
- MEGA 1.125–1.225 MHz — max depth: 400 ft (122 m)
-
Dual Spectrum CHIRP (2D)
- Full: 150–220 kHz
- Narrow: 180–240 kHz
- Wide: 140–200 kHz
Key Specifications
- Mount type: Transom mount
- Cable length: 20 ft
- Connector: Screw-on
- Built-in temperature sensor: Yes
- Part number: 7103111
Parts Desk Insights
Best use case: This transducer is the right choice when pairing a CHO (Choose Your Own) head unit — such as the XPLORE 10 CHO — with a transom-mount installation. It's also the preferred option for anglers replacing a worn or damaged transducer on an existing APEX or SOLIX G3 setup, or for those building a new installation where a compact transom mount is preferred over a trolling motor-integrated transducer.
Connector compatibility: This unit uses a screw-on connector. Confirm your head unit's transducer port accepts this connector type before ordering — some older Humminbird models use a different locking mechanism and are not compatible.
MEGA imaging note: MEGA Side Imaging+ and MEGA Down Imaging+ require a MEGA-capable head unit. Standard CHIRP-only units will not display MEGA imagery even with this transducer connected — only the 2D CHIRP channel will be active in that case.
Depth vs. range trade-off: At MEGA frequencies (1.1+ MHz), you get the sharpest imagery but reduced range. Switch to 455 kHz when fishing deeper water or when maximum side coverage matters more than resolution.
