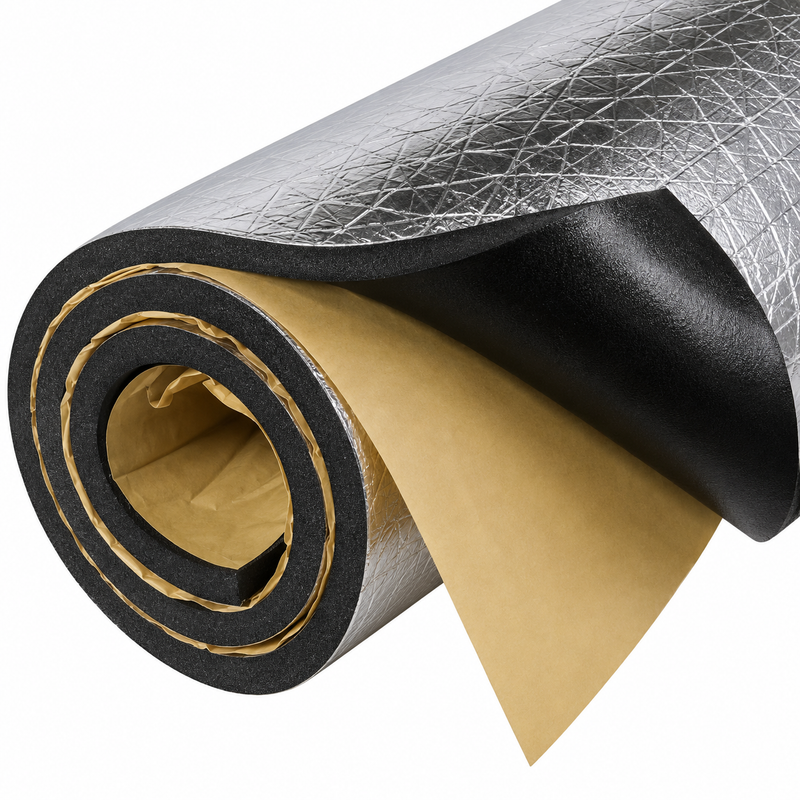

Soundown Acoustic Insulation Barrier — 1" × 32" × 54" — IVF1010MNSFT12
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Soundown Acoustic Insulation Barrier — 1" × 32" × 54" — IVF1010MNSFT12
Reduce engine noise and improve onboard comfort with the Soundown Acoustic Insulation Barrier. This composite panel is engineered specifically for marine engine compartments, generator rooms, and machinery spaces where airborne noise — particularly bass and mid-range frequencies — needs to be controlled. Each panel measures 1" thick × 32" × 54" and weighs 1 lb per square foot, providing meaningful mass-loaded attenuation in a manageable panel size.
Construction
The composite consists of a layer of mass-loaded vinyl (MLV) sandwiched between two equal layers of polyether fire-retardant foam, finished with a thin vapor barrier facing. Centering the acoustic vinyl between equal foam layers maximizes both absorption and transmission loss across the frequency range.
Key Features
- Mass-loaded vinyl core for effective airborne noise attenuation
- Fire-retardant polyether foam layers front and back
- Vapor barrier facing — moisture resistant for the marine environment
- 1 lb/sq.ft mass loading for bass and mid-range frequency control
- Designed for engines, generators, pumps, and other marine machinery
- Panel size: 1" × 32" × 54"
Specifications
- Thickness: 1"
- Dimensions: 32" × 54"
- Mass: 1 lb/sq.ft
- Weight: approx. 24 lbs (10.9 kg)
- Core: Mass-loaded vinyl
- Foam: Fire-retardant polyether
- Facing: Vapor barrier
Parts Desk Insights
Best use case: The Soundown IVF composite barrier is the right choice for lining engine compartment walls, hatches, and bulkheads on inboard and generator-equipped vessels where engine noise intrudes into the cabin or cockpit. The 1 lb/sq.ft mass loading is effective for controlling the low-to-mid frequency noise typical of diesel and gasoline inboard engines. For higher noise levels or thicker applications, a 2 lb/sq.ft version is also available — contact us for details. When installing, ensure full contact adhesion to the substrate and seal all edges to prevent sound flanking. This panel size covers approximately 12 sq.ft per sheet — calculate your total surface area before ordering to determine how many panels you need.
