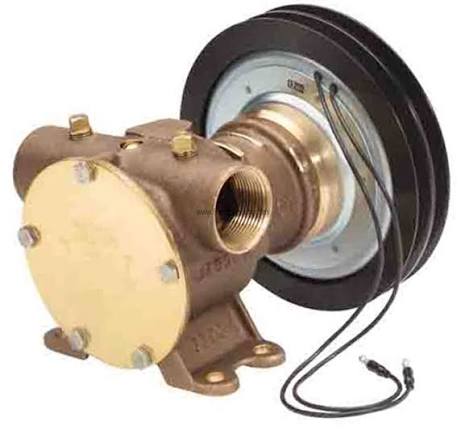

Jabsco 11860-0005 12V 1" Pump Clutch
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Jabsco 11860-0005 is an engine-driven flexible-impeller pump with a 12V DC electro-magnetic clutch and double-groove 2A-section pulley. Designed for high-volume marine and mobile pumping, it combines a bronze pump body, nitrile impeller, stainless-steel shaft and carbon-ceramic mechanical seal. The remotely controlled clutch engages the pump only when required — suitable for engine cooling, bilge pumping, washdown, bait-well circulation and water transfer.
- 12V DC electro-magnetic clutch — ~4A draw
- Double-groove 2A-section pulley, 7" / 178 mm diameter
- 23 GPM / 88 LPM at 1,750 RPM and 10 ft of head
- Maximum 34.8 GPM at 3,000 RPM and 10 ft of head
- Operating range: 400–3,000 RPM
- Self-primes from dry to ~7.8 ft / 2.4 m
- 1" NPT inlet and outlet ports
- Bronze pump body; nitrile impeller; stainless-steel shaft
- Carbon-ceramic mechanical shaft seal; twin-row ball bearings
- Replaceable wear plate; pumps in either direction
- Anti-airlock design; handles soft suspended solids
- Mechanical clutch-engagement screws for emergency manual override
- Jabsco P/N: 11860-0005 | Distributor SKU: 6-118600005 | UPC: 671880007962
Fitment Notice
This is a complete belt-driven pump and clutch assembly. Verify 12V DC clutch voltage, 1" NPT plumbing, double-groove A-section belt, 7" pulley clearance, and required flow/head performance before ordering. Related 11860-series pumps exist with different voltages and pulley configurations — similar appearance does not guarantee interchangeability.
Operating Requirements
Flexible-impeller pumps must not run dry. Provide an unrestricted water supply, use correctly sized 1" plumbing, keep suction connections airtight, and install a strainer where debris may enter. The clutch allows disengagement when flow is not needed, but water must be available immediately on engagement.
Service Parts
- 920-0003-P — nitrile impeller
- 90118-0003 — minor service kit
- 11831-0000 — end-cover kit
- 890-0000 — gasket
- 4156-0000 — wear-plate kit
- 11867-0000 — shaft kit
- 913-0000 — lip-seal kit
